Elsema FMR 202 27Mhz 2 Channel Receiver


Free Delivery within Australia only ......

Discription

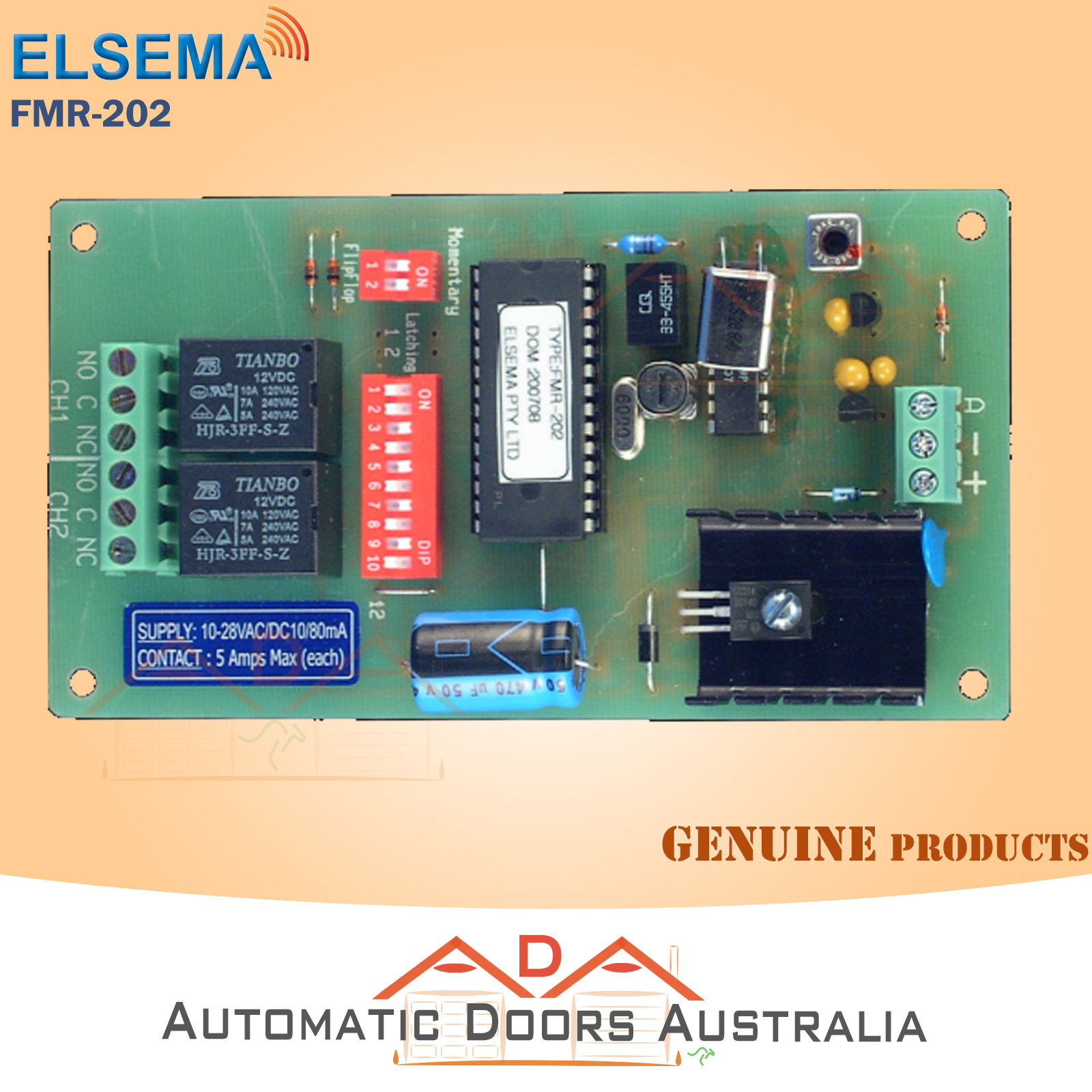

This receiver gives you two relay outputs with a contact rating of 5 Amps at 240VAC for each relay. Also available in an IP66 rated weather proof case, FMR-202E.

The on board 10-way dipswitch allows easy coding. Care must be taken, not to bring a receiver near strong magnetic fields, such as DC-Motors, speakers, magnets for reed switches, transformers etc. as it would magnetise the coils and may cause severe de-tuning.

Features

• Two relay outputs
• Onboard coding switch
• Accepts wide supply voltage, 11-28 Volts AC/DC
• Crystal controlled for high stability and performance
• Compatible with all FMT-27MHz series transmitters

Specifications

Supply Voltage: 11-28 Volts AC/DC.
Current Consumption: 11mA standby
Receiving Frequency: 27.145MHz (other frequencies available on request)
Sensitivity: Better than 1µV (for relay output to switch on)
Antenna: Elsema ANT 27MHz series
Dimensions: 130 x 70 x 20mm

Warranty

 1 Year WARRANTY

(EL_FMR202)

SKU EL_FMR202
Brand Elsema
Shipping Weight 0.0950kg
Shipping Width 0.095m
Shipping Height 0.020m
Shipping Length 0.115m
Shipping Cubic 0.000218500m3
