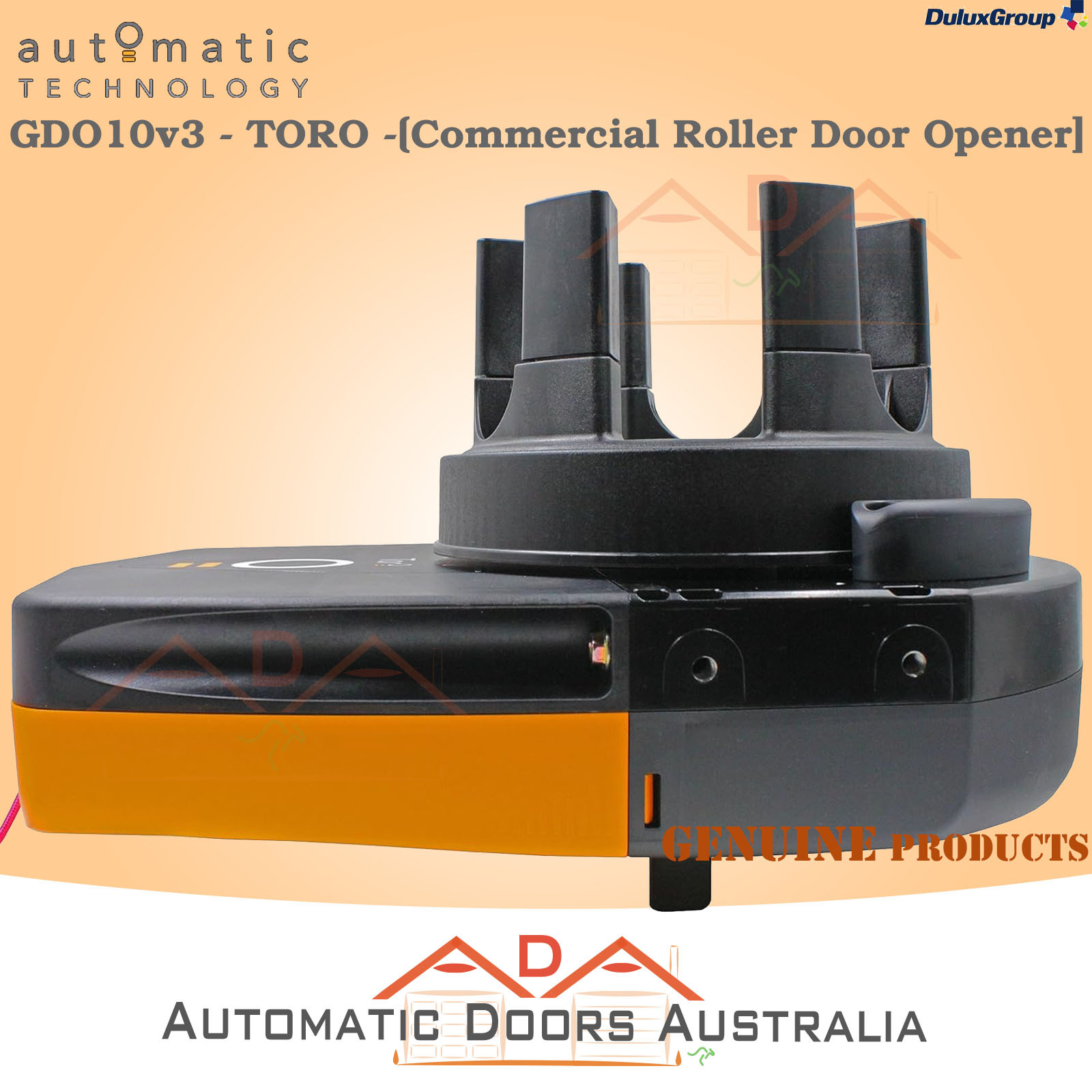

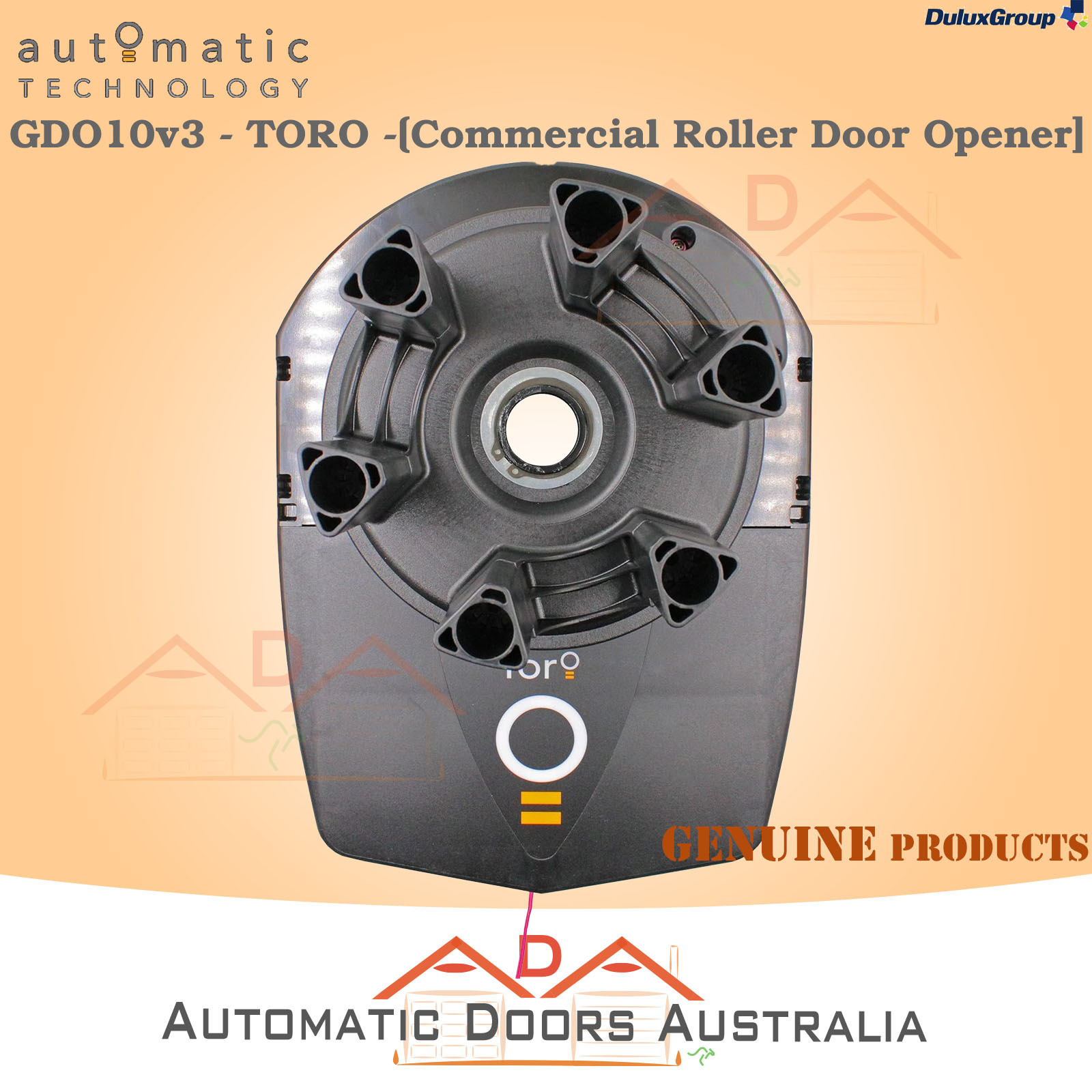

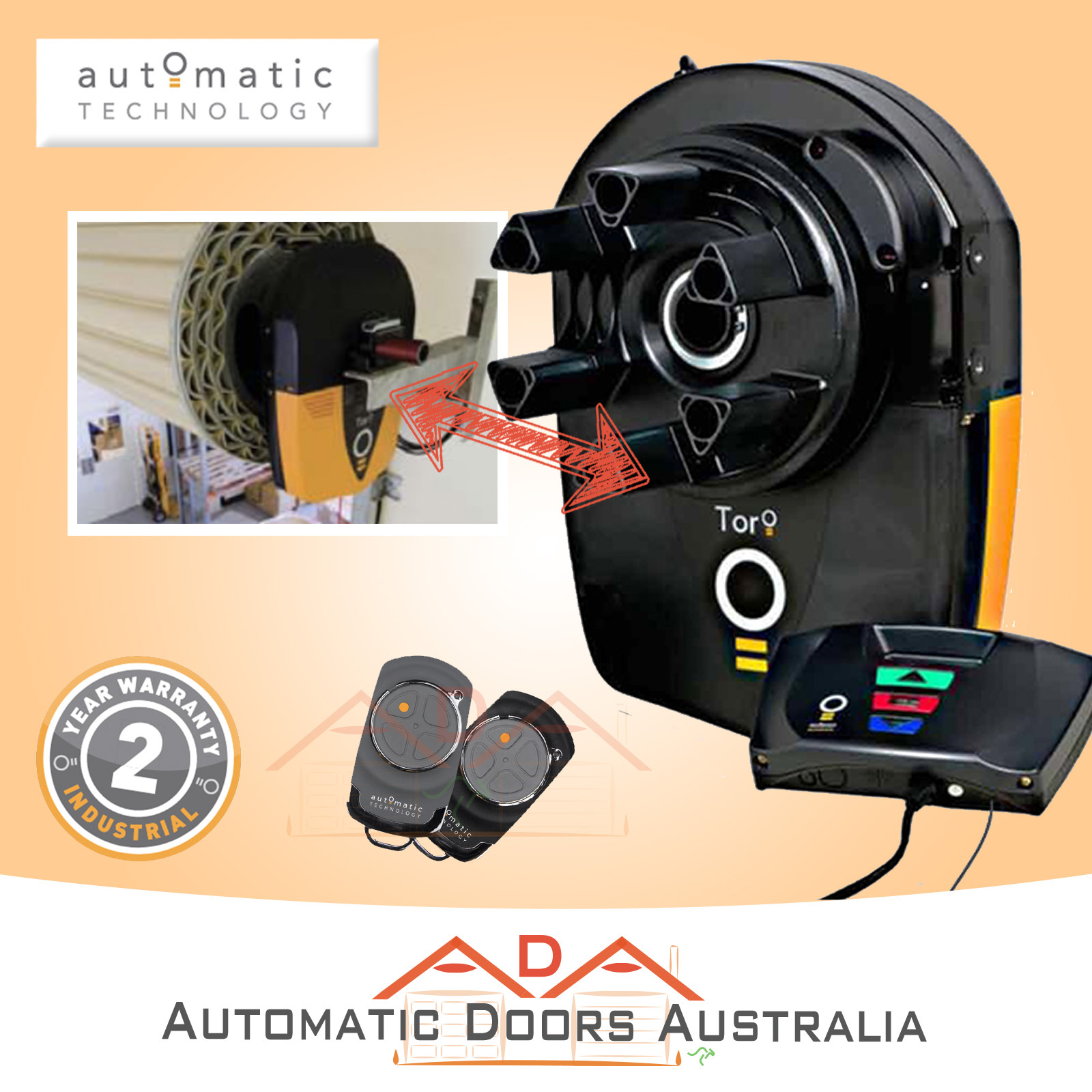

ATA GDO10v3 L2 Toro Light Commercial Roller Door Opener 61480 28m²

Free Shipping Australia Wide

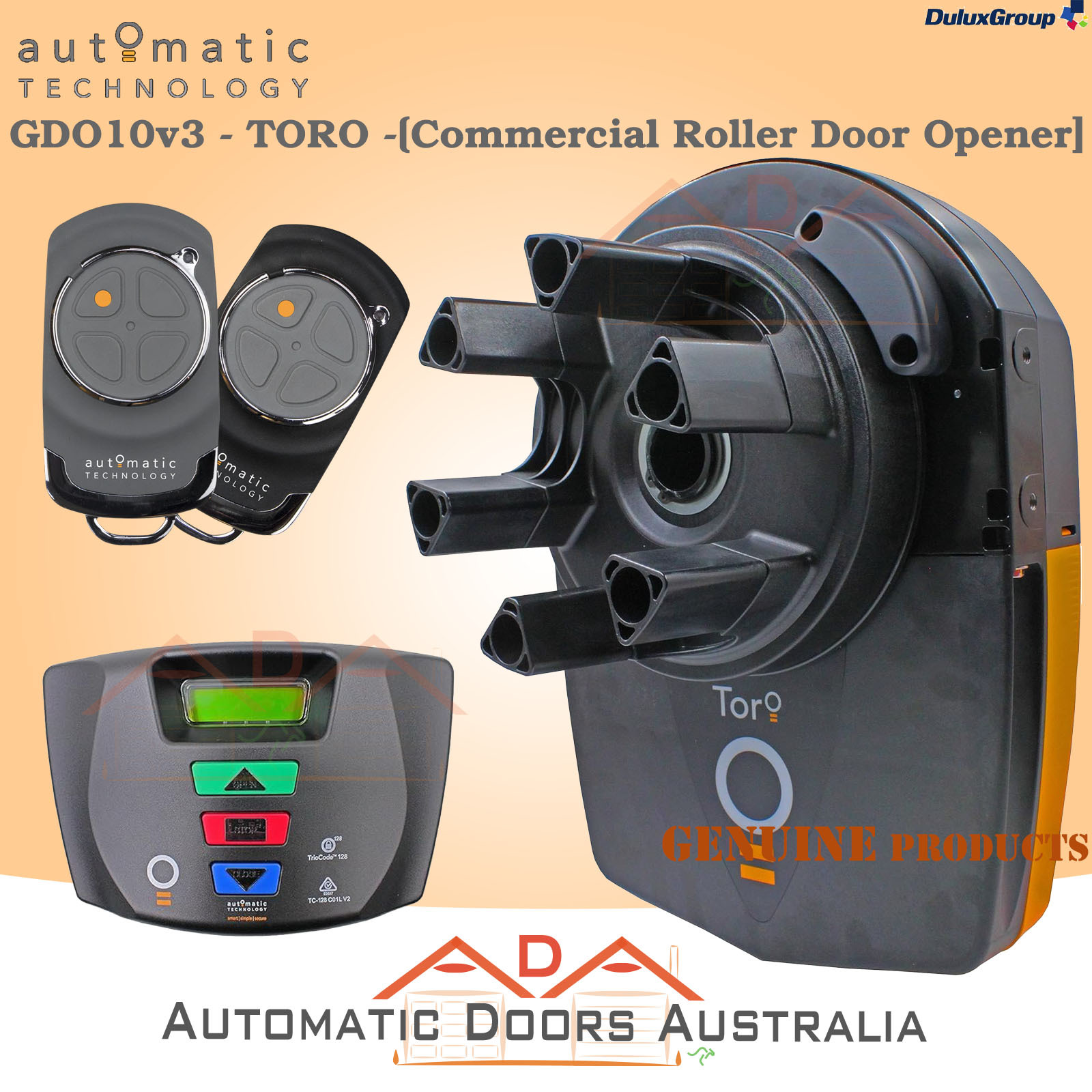

Includes:

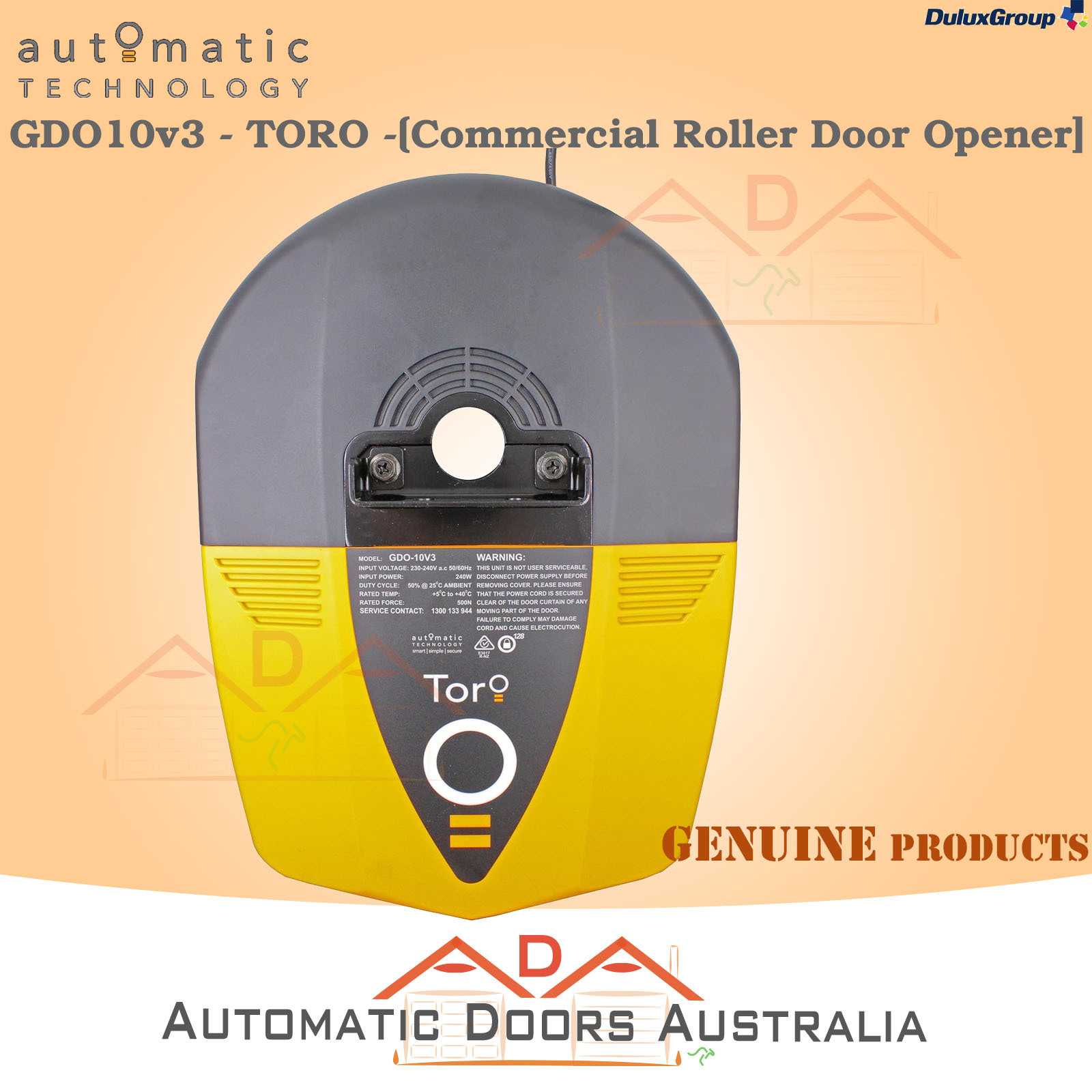

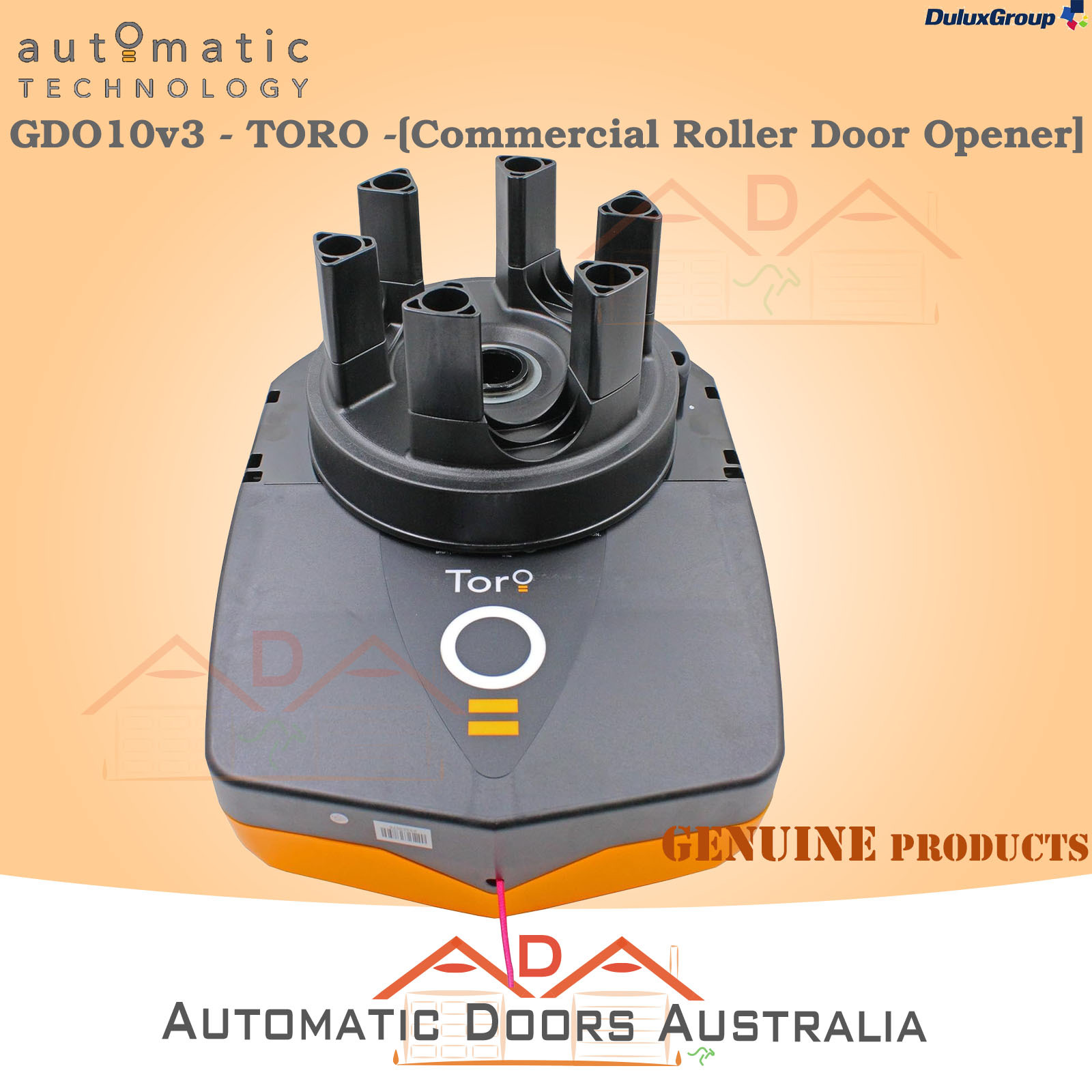

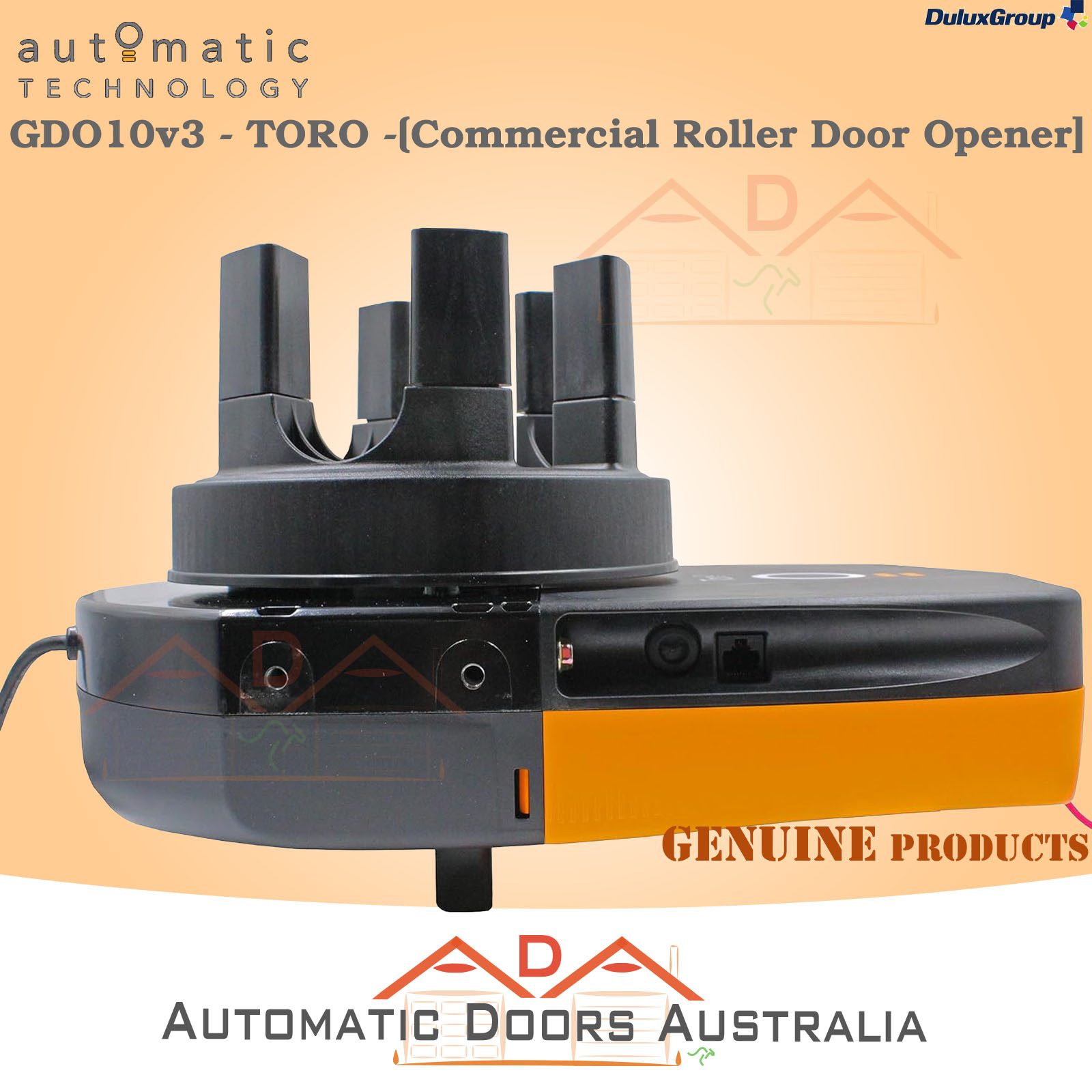

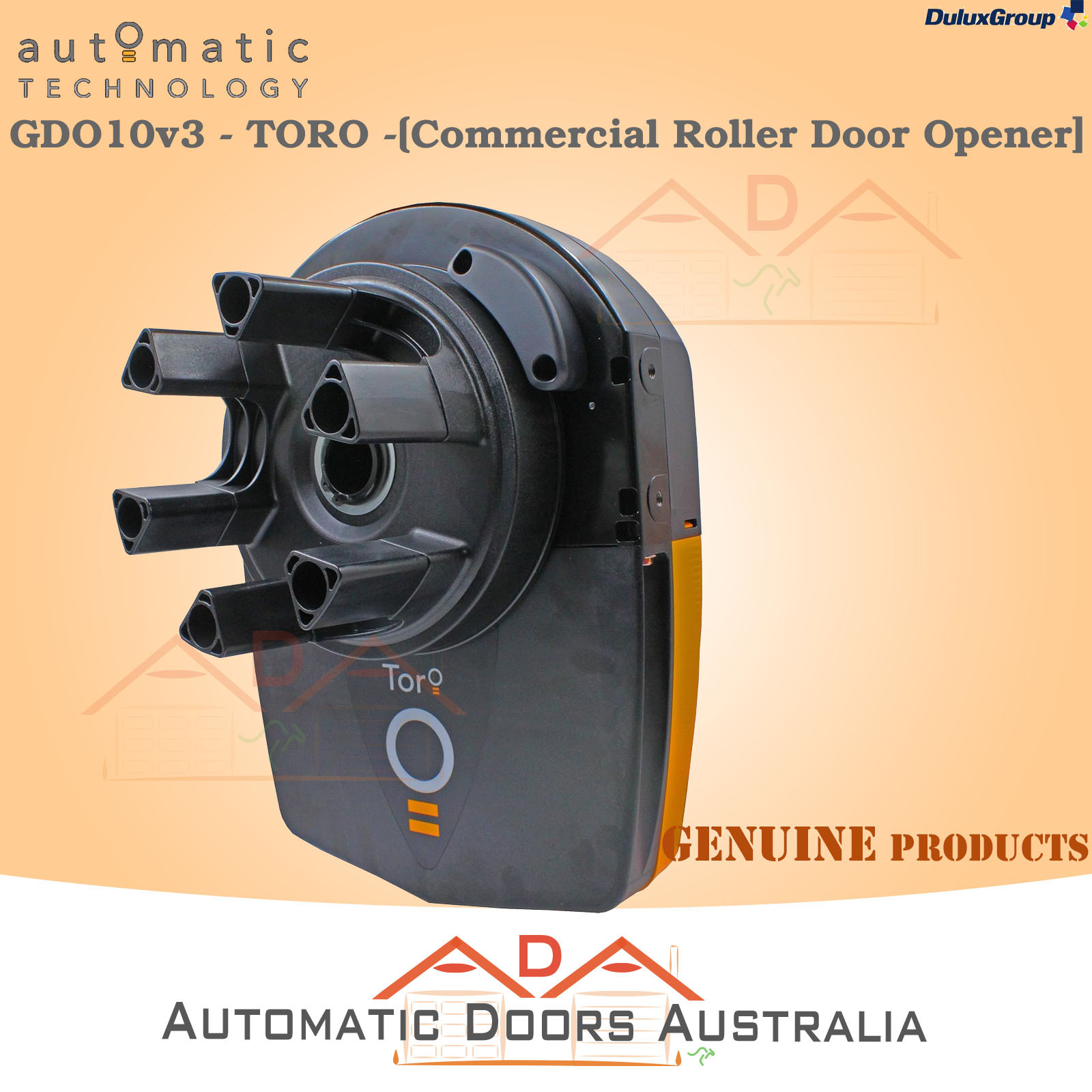

  • GDO-10v3 Powerhead
  •  PTX-6v1 Transmitters x 2

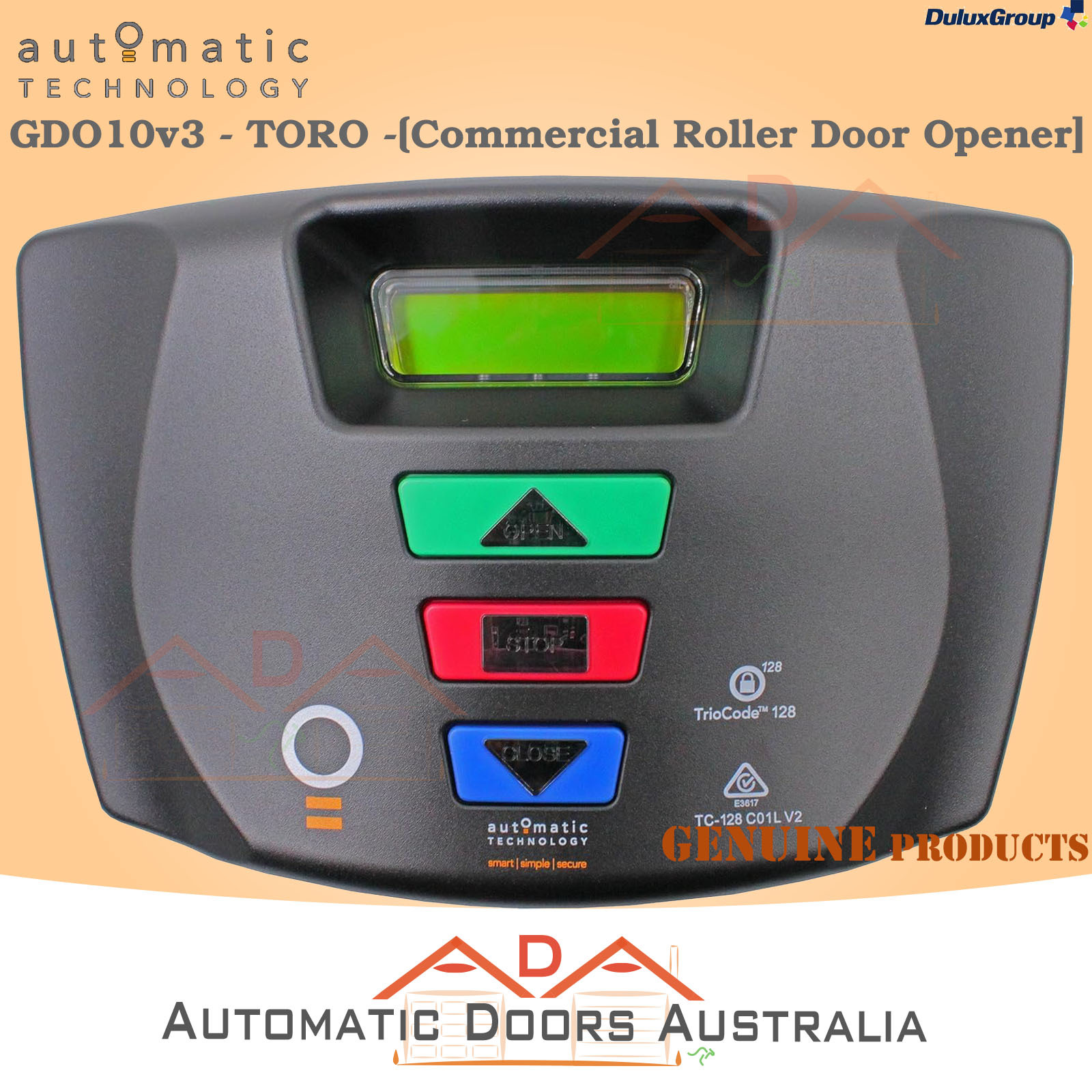

  •  L1 Logic Console (LCD wall control)
  • Mounting Hardware
  • Instruction Manual


Warranty: 02 years manufacturer's warranty (This warranty covers failure due to manufacturer's fault)

Description:
The Toro® offers sophisticated commercial roller door opening technology and superior pulling power. With built-in Battery Back-up and a wall-mounted control panel you can program a variety of operating modes for your security and safety.
A marriage of immense power and sophisticated logic controls, the Toro® can cater for roll-up doors up to 28m2 and high duty cycles. The logic control system, with LCD screen, can manage up to 511 TrioCode™ Garage Door Remotes, and offers time clock controlled access programs, adjustable speed and obstruction settings. A full complement of controlling inputs and outputs are standard, including compatibility with up to three Wireless Safety Beams systems simultaneously. Rounding this out is Soft Start/Soft Stop, Door Profiling, Intelligent Safety System and variable Auto Close settings.

Specifications:








Remote controls:

  • Remote control protocol Trio Code 128 (2014 onwards).
  • Remote control memory capacity Commercial GDO-10V3 is 511.
  • Remote control memory capacity GDO12V2 is 64.
  • B&D Tri Tran + remote controls are NOT cross compatible with AT Trio Code 128 remote controls (contact B&D Tech support for receiver solutions 1300 769 850).
  • GDO-12V2 Protocol is both AT Trio Code 128 & & B&D Tri Tran+ mixed capability.

Application:

  • GD0-10V3 is a true commercial product with commercial inputs using a supplied Logic Console. This allows interface to commercial access accessories (i.e. Loop detectors swipe cards access and other security products).
  • The GDO-12V2 is a Heavy-duty Residential product and does not provide this commercial interface.

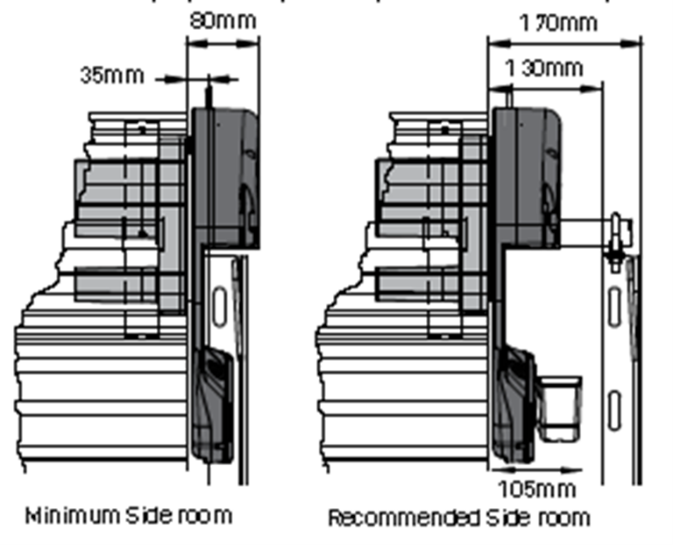

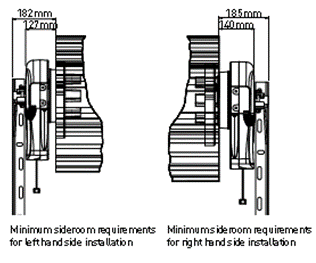

Side room:

GD0-12V2

  • If installing Battery Backup fitted to rear of unit - 105mm is required.
  • Battery Backup can be wall or ceiling mounted with use of Wall Mount Hardware kit (Product code: 86774)

Compatible Accessories:

Feature GDO-10V3 GDO-12V2
Smart Phone Control No Yes
(Product code: 87682 Includes Wireless PE Kit)

Yes
(Product code: 87681 Includes Wired PE Kit)
Courtesy Light No Yes LED
Battery Back up Yes Yes
(integrated in unit) (Product code: 16408)
Safety Beams Yes Yes
Supplied L2 Console
  2 x wireless
Combination of 2 x wireless  (Product code: 62738)
(Product code: 62738)
OR 1x 2-wired
 2 x wired  (Product code: 62626)
(Product code: 62626)

 Optional L1 Console
Combination of 2 x wireless (Product code: 62738)
OR
 2 x wired
(Product code: 62626)

1 x 3 wired
(Product code: 62627)
Commercial Interface / Function Yes, Interface with Loop detectors, swipe cards access and security No Domestic functionality
Smart Solar Yes  No
(Product code: 62846)

Key Kit Contents:

GD0-10V3 61229_and_61228.png14856.png 2 x Premium Hand Transmitters PTX7 (Product code: Grey 61229, Product code: Black 61228)

1 x Logic Console L2 Version
(Product code: 14856)

1x Battery Backup integrated in unit.    Spare batteries
GD0-12V2 86220.png61229_and_61228.png 2 x Premium Hand Transmitters
(Product code: Grey 61229, Product code: Black 61228)

1 x Premium Wall Control
(Product code: 86220)

Warranty:

  • GDO-10V3 Toro: 2 year / 5,000 cycles, Dead weight 270kg.
  • GDO-12V2 Hiro: 2 year / 10,000 cycles, Dead weight 270kg

(ATAGDO10v3)

SKU ATAGDO10v3
Brand ATA Automatic Technology Australia
Shipping Weight 16.0000kg
Shipping Width 0.405m
Shipping Height 0.425m
Shipping Length 0.245m
Shipping Cubic 0.042170625m3
