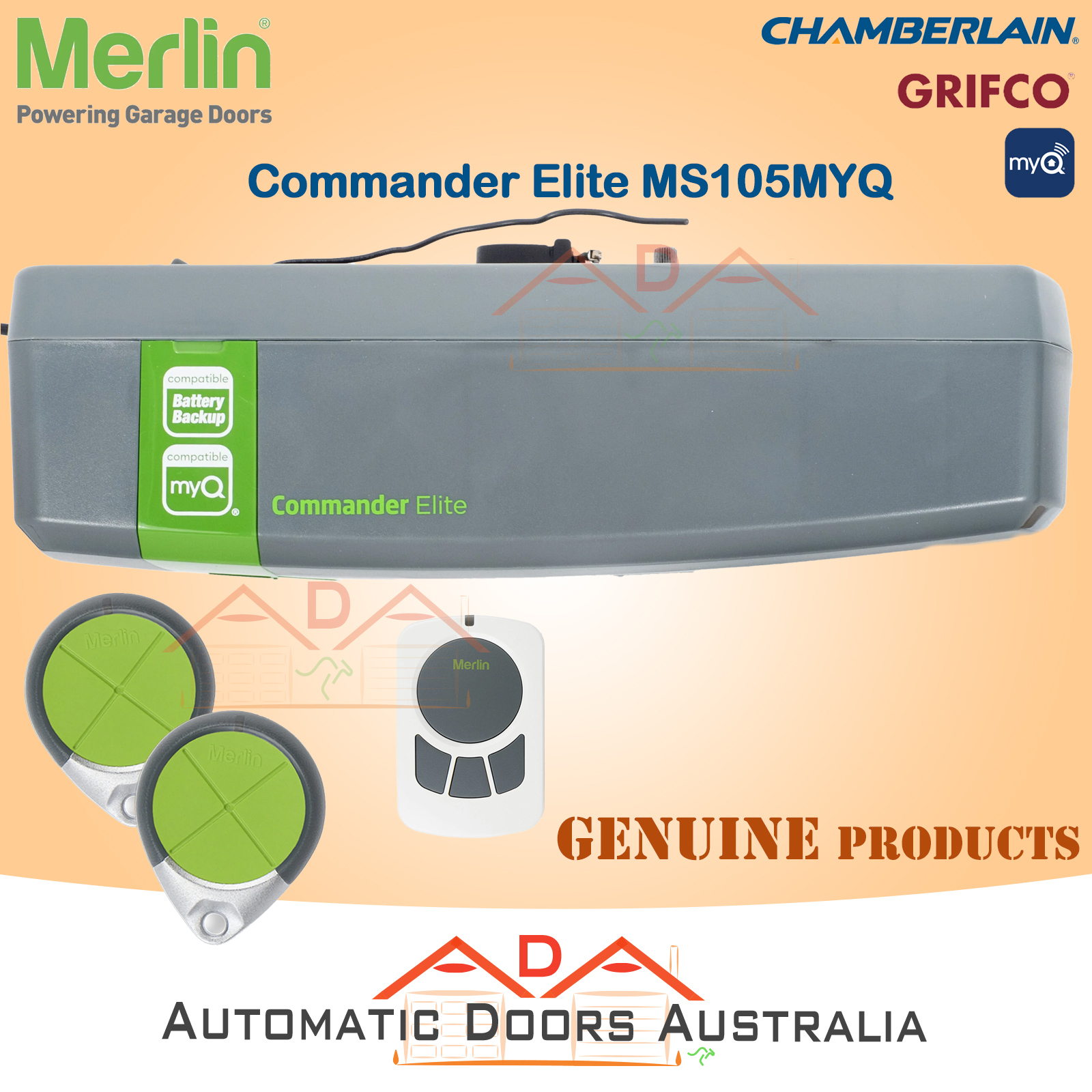

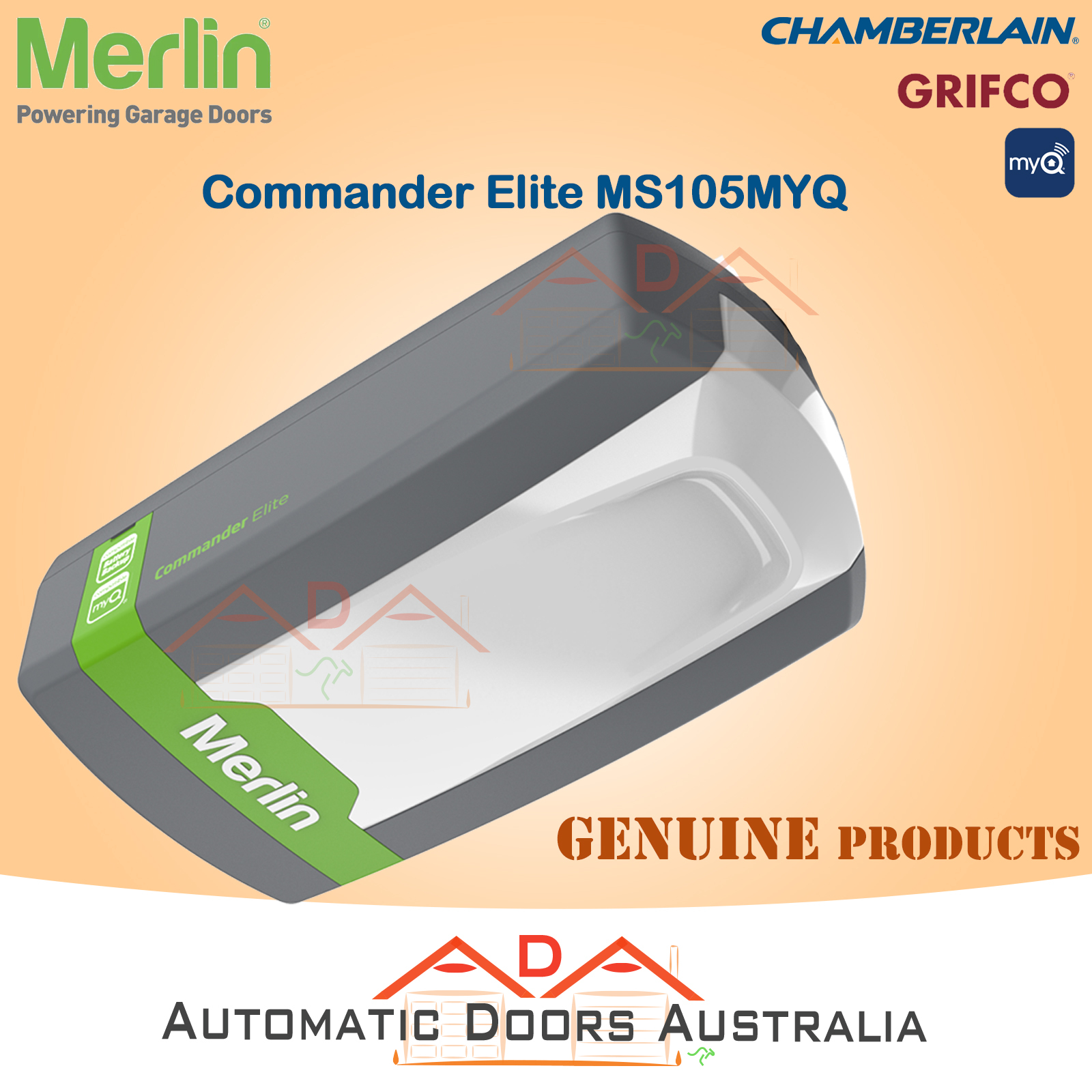

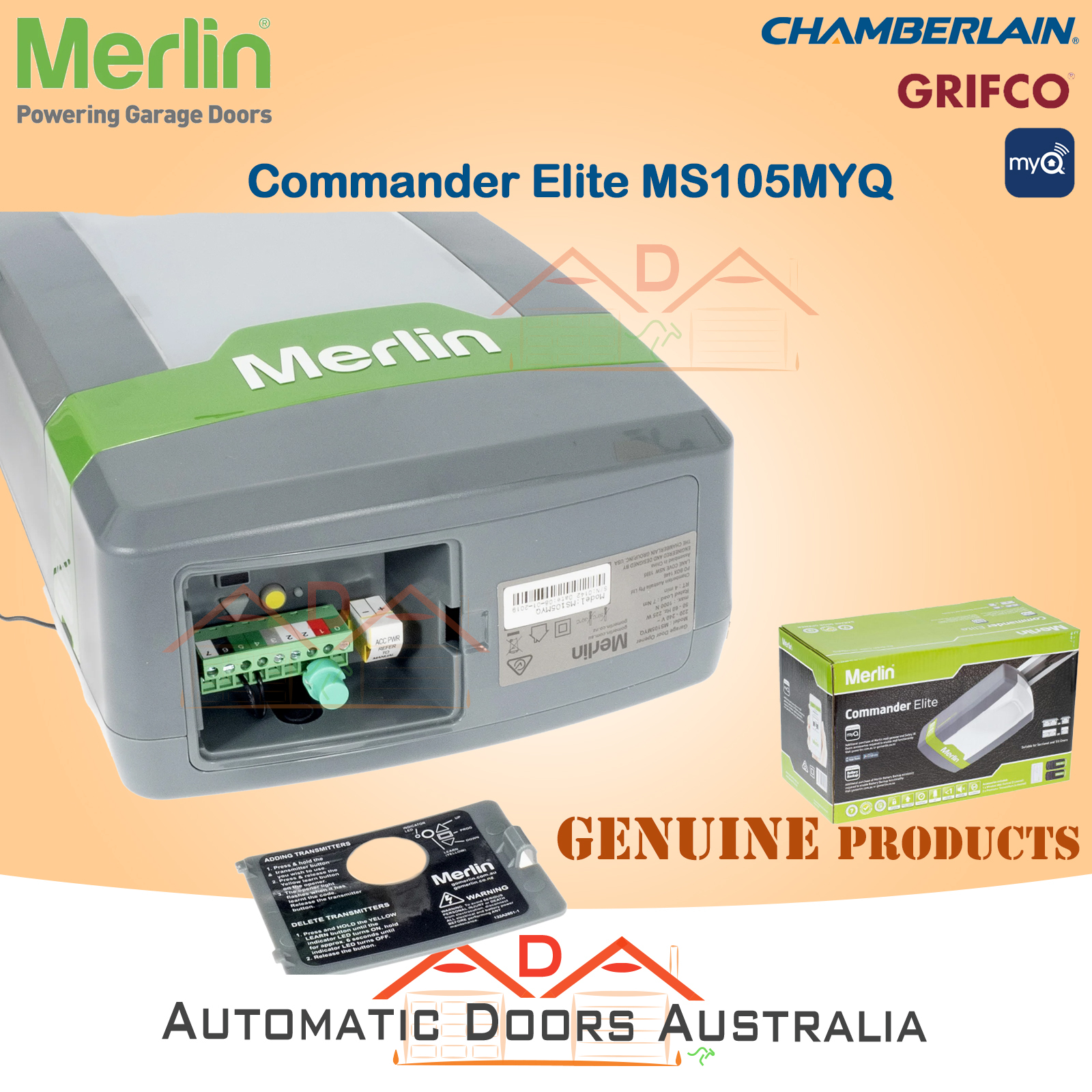

Merlin MS105MYQ Commander Elite for double sectional and panel garage doors  /// Power Head Only /// NO RAIL OR TRACK ////

Free Shipping Australia Wide

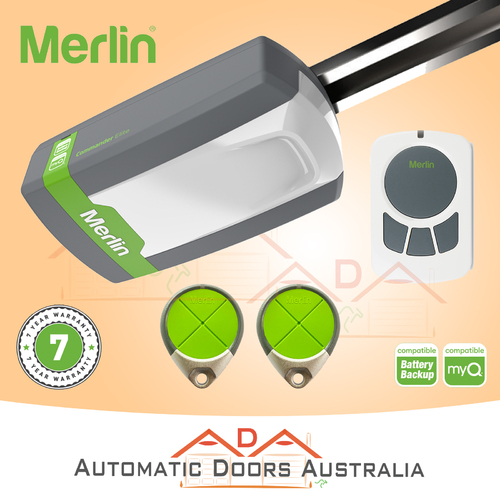

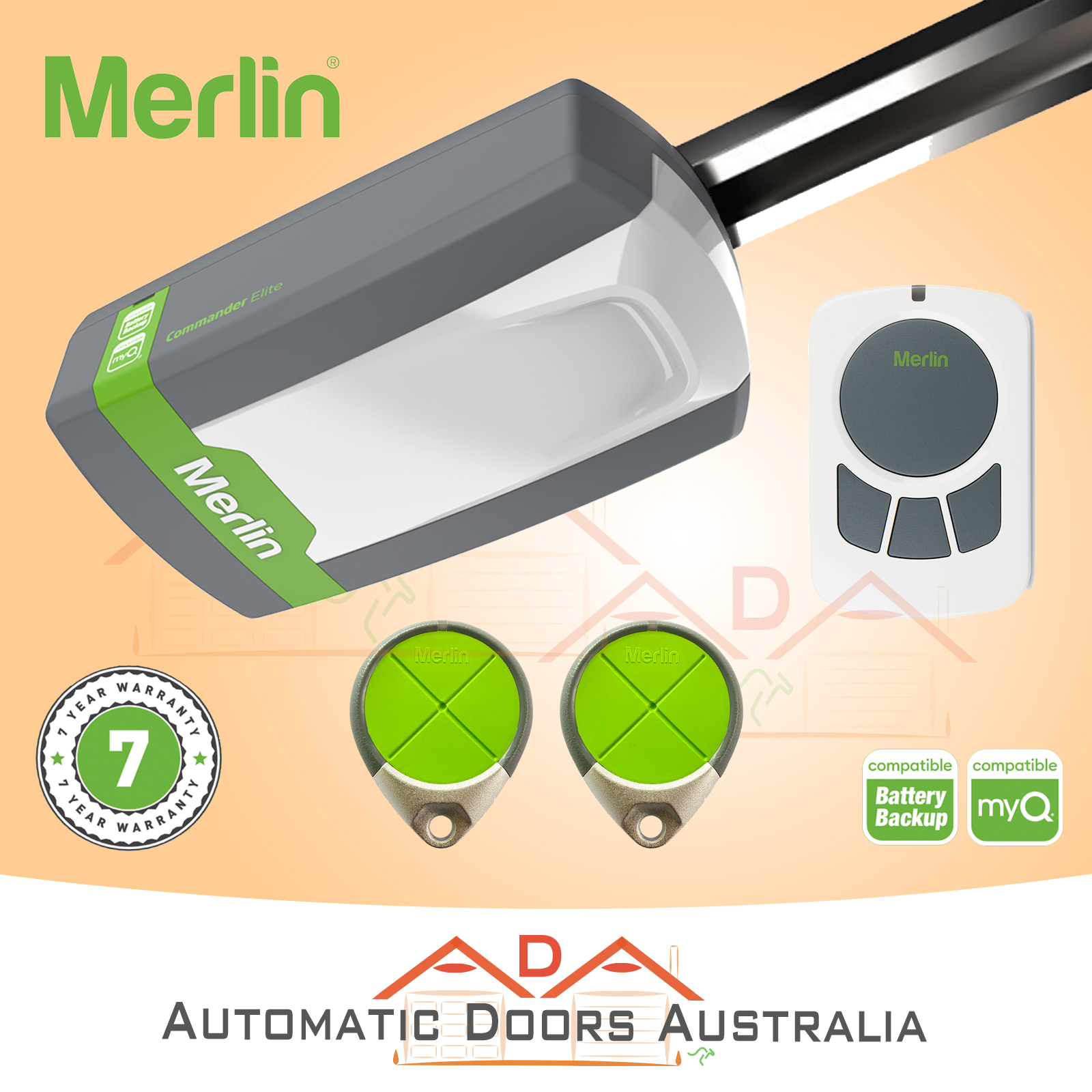

Includes:

  •  Merlin MS105MYQ

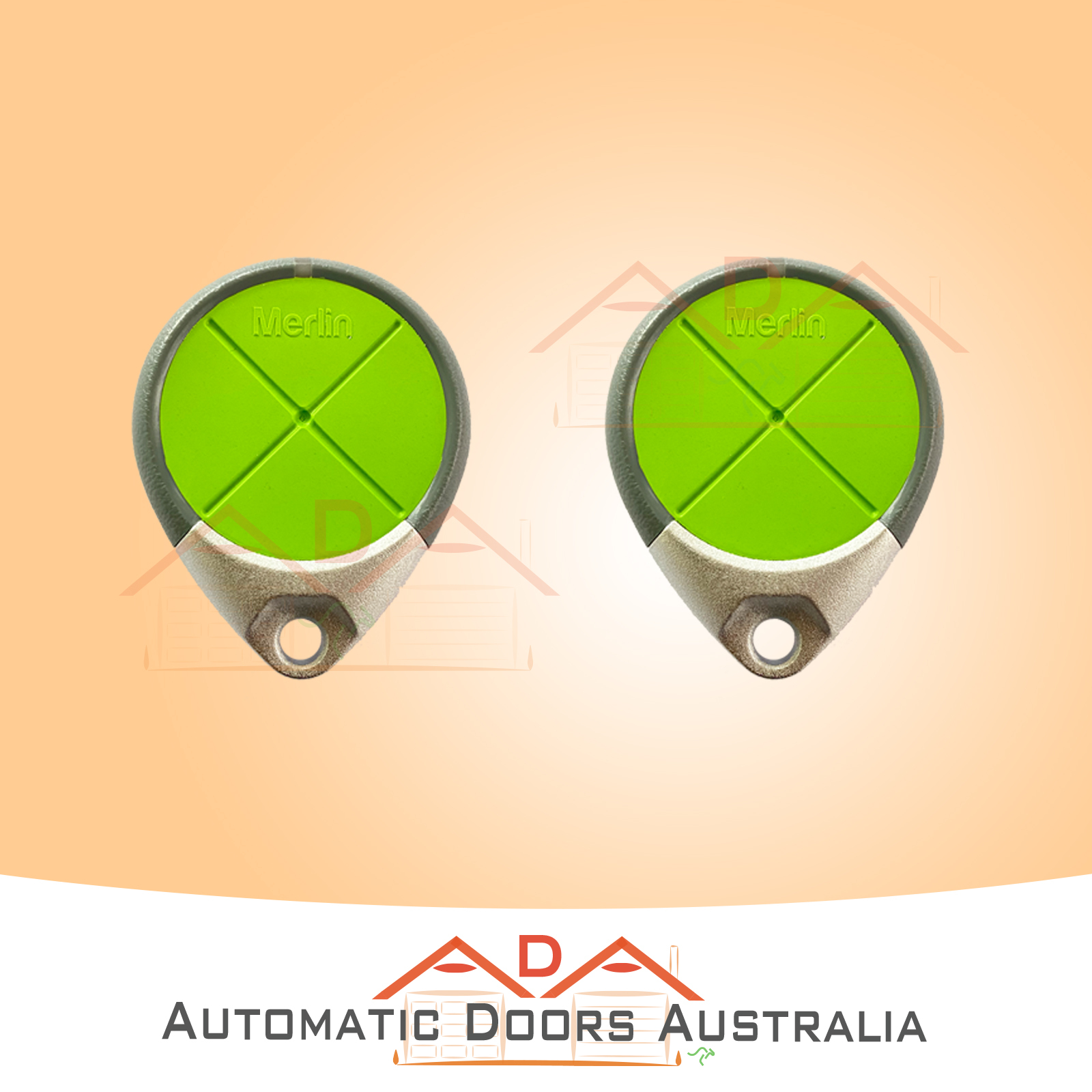

  • E970M premium remotes (NEW STYLE) x 2
  • E1348M Wall button remote (NEW STYLE)
  • Mounting hardware
  • Manual Instructions
Warranty: 7 year manufacturing warranty. (This warranty covers failure due to manufacturer's fault)

NOTE - Compatible with ATA C-Rail (#100605-STEEL-BELT-RAIL) - PICK UP ONLY  or Customer has to arrange shipping . ... Pick up place - Factory 2/67-75 Garden Drive,Tullamarine VIC 3043,

  • https://www.ada-aust.com/merlin-8025cr5anz-belt-rail
Features:
Australia's favourite opener, Commander Elite is myQ compatible & Battery Backup compatible, with heavy lifting power of 150kg and new powerful LED lighting. Powerful, quiet and compliant to Australian & New Zealand Standards, enjoy complete peace of mind with the market leading 7 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected. Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.





Specifications:


General
  • 24V DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 20m2
  • Max door weight: up to 150kg
  • Max peak pulling force: 1000N
  • C-rail with belt drive
  • 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security +2.0 rolling code technology
  • Up to 64 memory registers
  • Courtesy light: LED
  • Min head required: 30mm



Door Specs
  • Maximum lifting under spring tension = 20kg
  • Suitable for steel and timber spring balanced doors

Door Opening and Closing Times
  • Door opening time: 18 seconds
  • Door closing time: 22 seconds
  • Based on 2.4m high door

Door Height
  • Maximum door height: 3.5m
  • Door width: 5.7m
  • Double dwelling

Suited For:

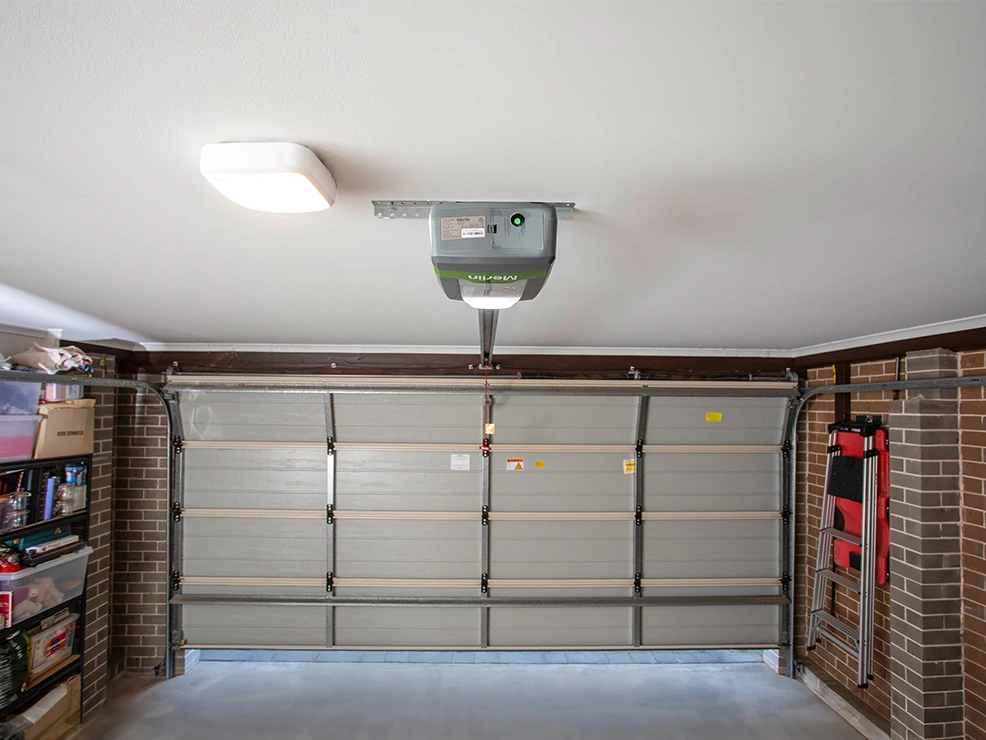

Can be used on single or double sectional or panel domestic garage doors up to 2.4m opening door height.



(MERLINMS105MYQ)

SKU MERLINMS105MYQ
Brand merlin
Shipping Weight 6.5000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.250m
Shipping Cubic 0.020000000m3
Unit Of Measure ea
