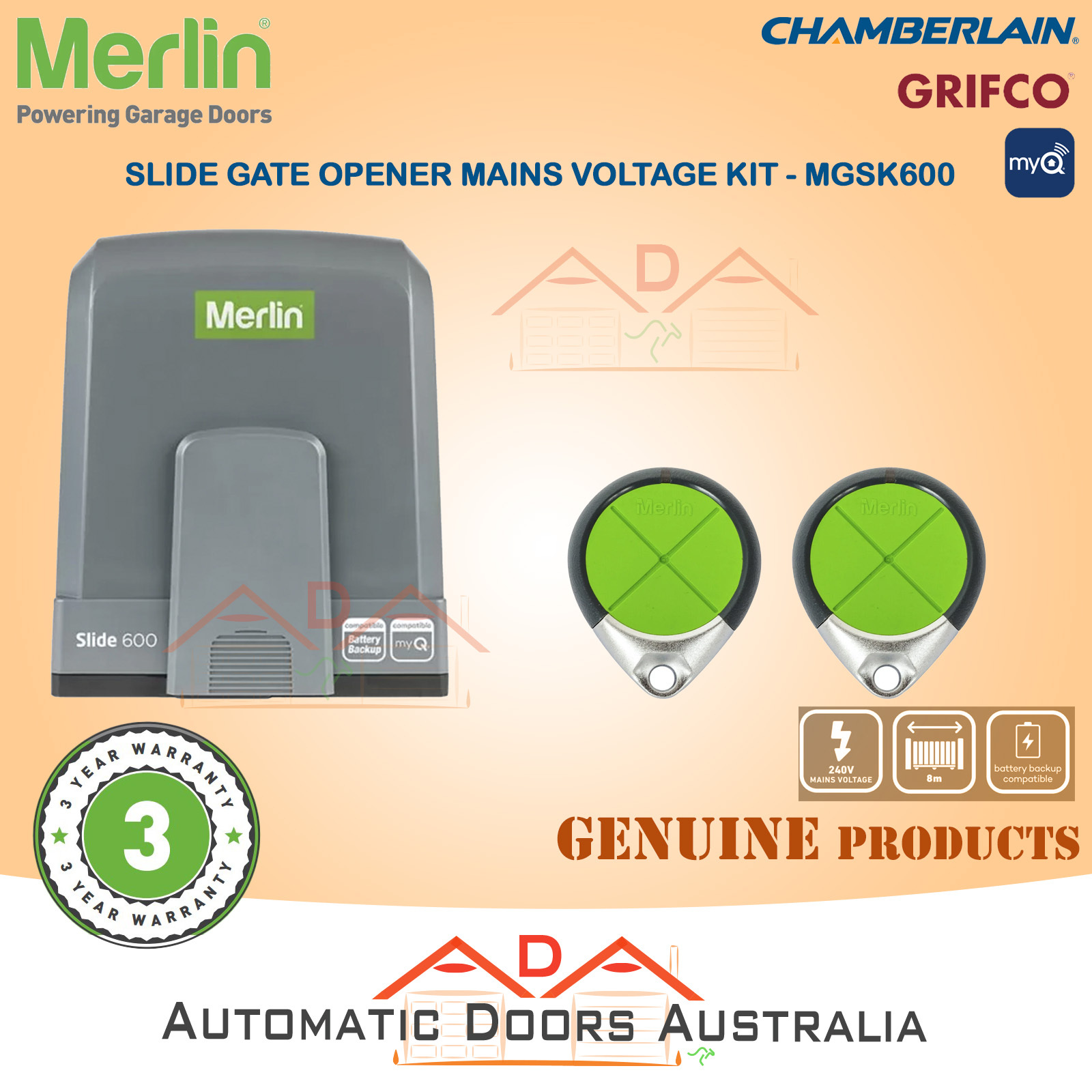

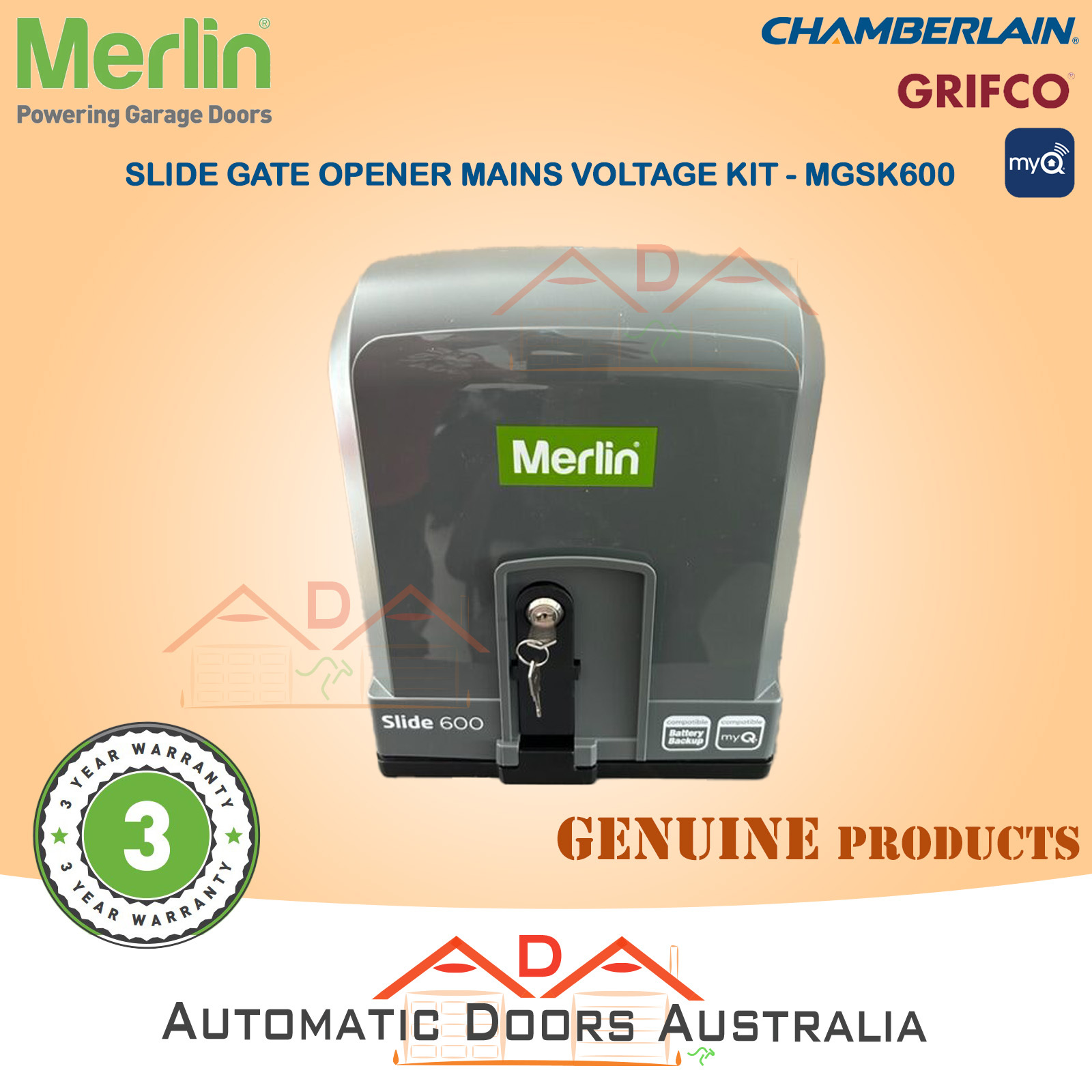

Merlin MGS600 Sliding Gate Motor_Mains Valtage -MGSK600 -240V-

Free Standard Delivery Australia-wide only

Incudes

• Merlin MGS600 Sliding Gate Motor
• 2x Four Button Remote Control (Security+ 2.0 + Security+) (E970M)
• Instruction manual
• https://www.ada-aust.com/assets/files/Slide-600-MGS-Quick-reference-guide-114A5580A.pdf
• https://www.ada-aust.com/assets/files/Slide-600-MGS-Manual.pdf
• https://www.ada-aust.com/assets/files/Slide-600-Gate-Opener-Sell-Sheet.pdf
• https://www.ada-aust.com/assets/files/Gate%20FAQ%20v6.pdf
• https://www.ada-aust.com/assets/files/Slide%20600%20MGS-MV%20Spec%20Sheet%20OUT-Digital%20(1).pdf
•

Warranty -  03 year manufacturer's warranty

Gate Track/Guides can be ordered separately

• https://www.ada-aust.com/nylon-coated-steel-rack-for-sliding-gate-automatio

Description:

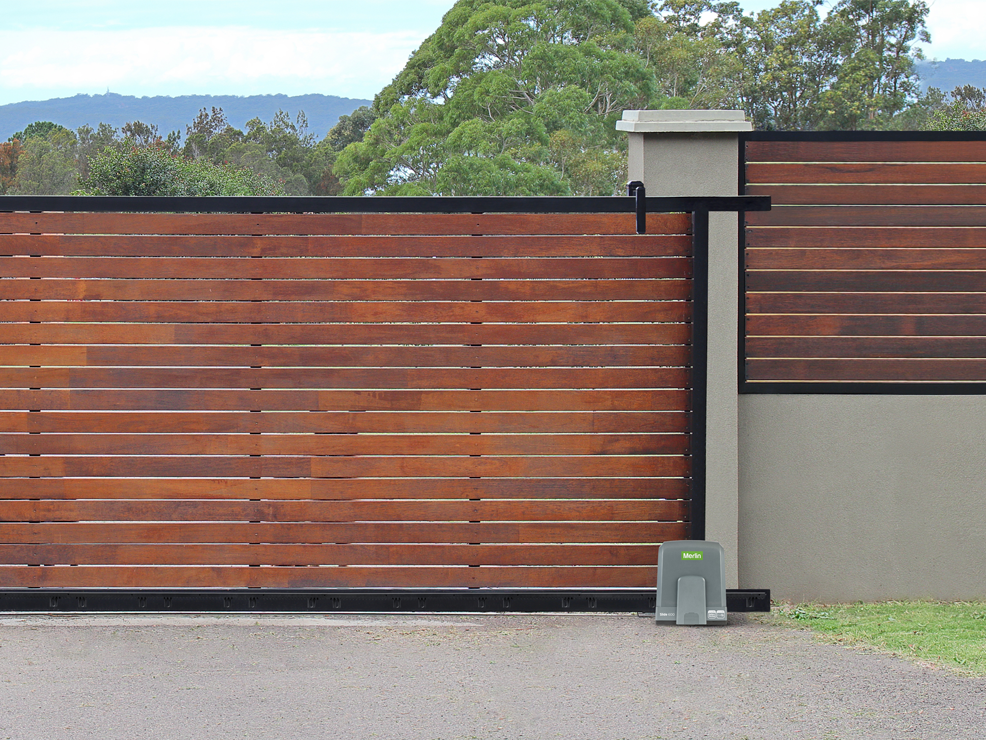

Merlin's Slide 600 Slide Gate Opener is suitable for slide gates up to 8 metres.

IP44 rated, the Merlin Slide 600 provides heavy lifting power performance for a slide gate up to 600kg.

Mains or Low Voltage options available.  myQ capable and Battery Backup compatible.

Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.

Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

For Slide Gates heavier than 600kg, please use GRIFCO-LG-DRIVE

Specifications

Maximum Gate Width & Weights

• Maximum weight for single gate: 600kg
• Maximum width for single gate: 8m

Standard Specifications

• Main AC Supply: 220-240Vac; 50/60Hz or 24V Low Voltage
• Motor Voltage: 24 VDC
• Input Power: 120 W
• Ambient Temperature Range: -20 - +55*C
• Max peak pulling force: 18 Nm
• Max Travel Speed: 31 cm/s
• Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 Technology
• Compatible with myQ technology
• Gate opener capacity of up to 64 memory registers
• IP44 Weather Resistant

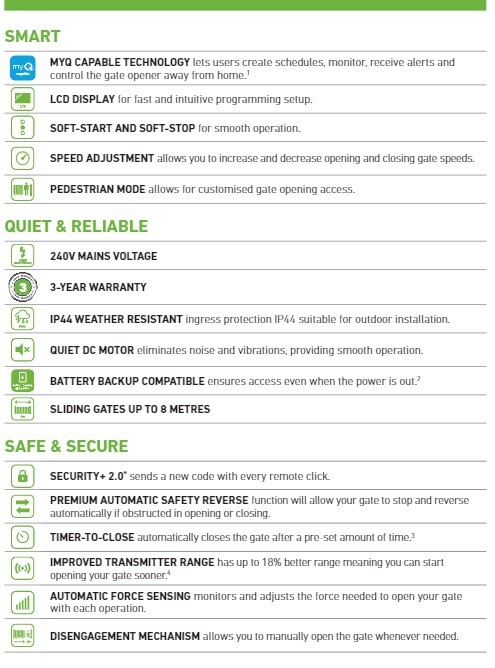

Features

Premium Automatic Safety Reverse

• Function will allow your gate to stop and reverse automatically if obstructed while opening or closing.

Automatic Force Sensing

• Monitors and adjusts the force needed to open your gate with each operation.

Disengagement Mechanism

• Allows you to manually open the gate whenever needed.
