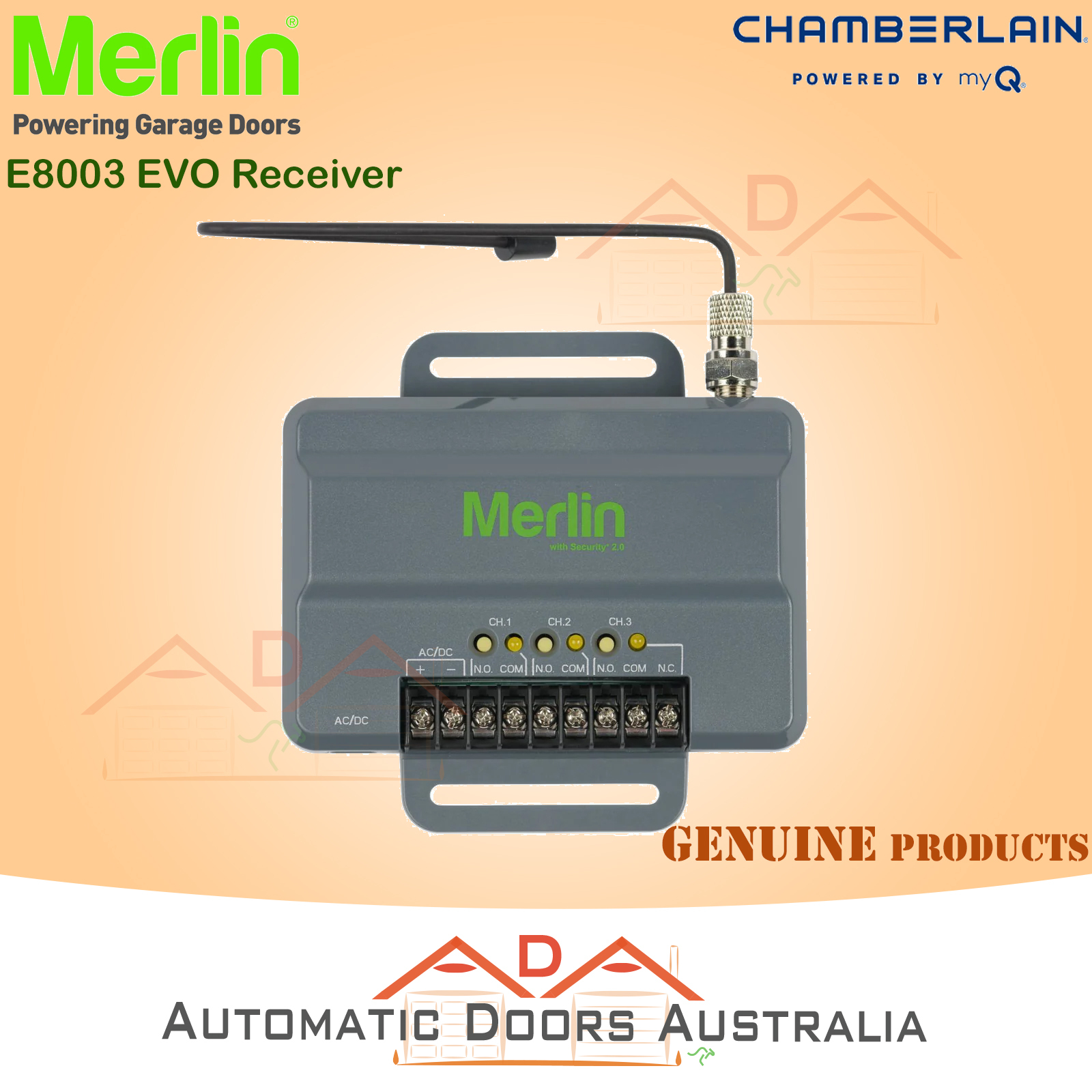

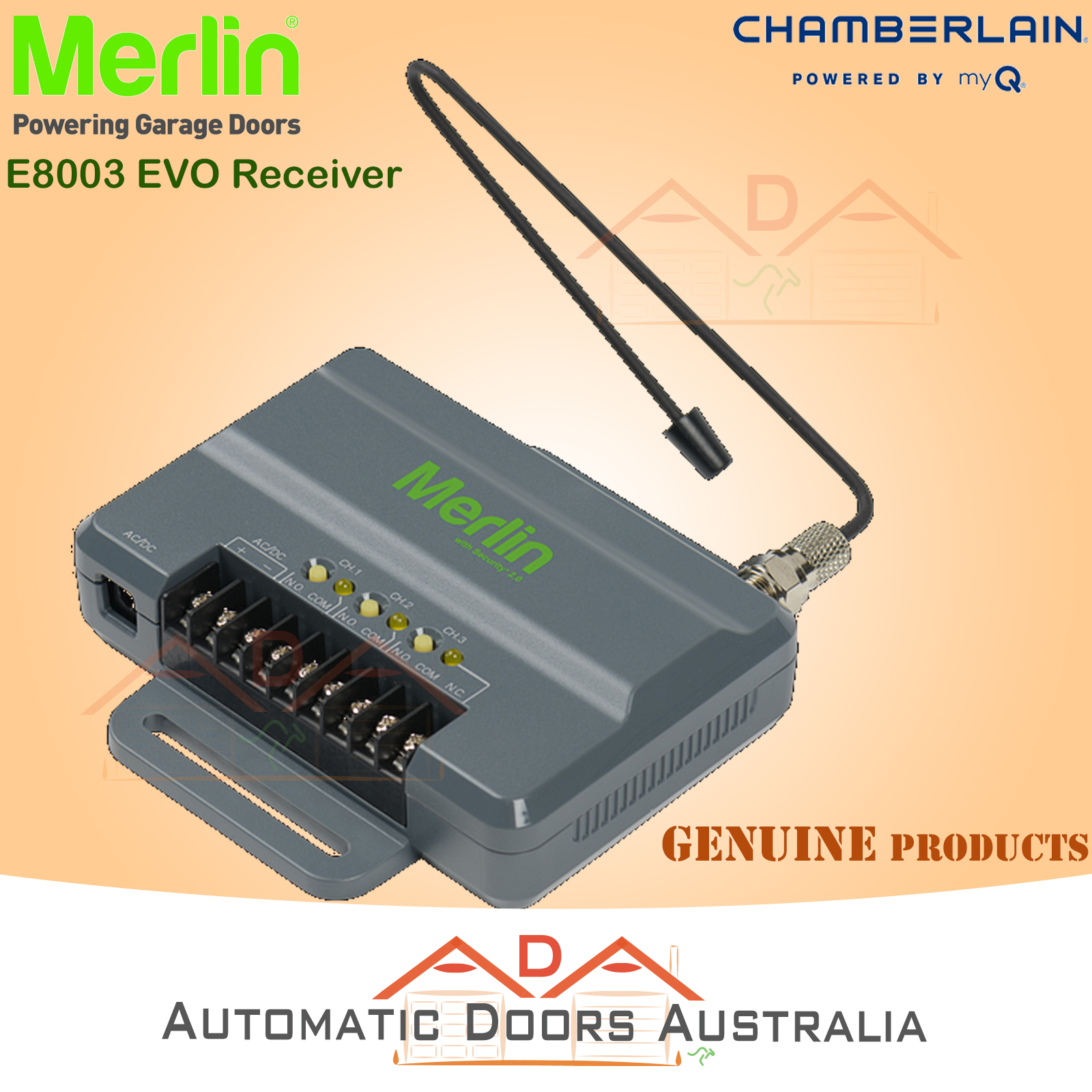

Merlin E8003 EVO.. + 2.0 EVO 3-Channel Universal Receiver



Free Standard Delivery Australia-wide only***

Includes

Warranty -  01 year manufacturer's warranty

Description:

The receiver can be used as a single or three channel receiver to control up to commercial operators or residential door openers. The receiver can also be used with a 3-button remote control to operate the OPEN, CLOSE, and STOP feature on a commercial door operator.

Security+ 2.0TM technology provides improved security and transmitter range.

Each channel is compatible with a specified number of remote controls and keypads. Refer to the list below:

  • CH1: 50 remote controls and 2 keypads
  • CH2: 20 remote controls and 2 keypads
  • CH3: 20 remote controls and 2 keypads

https://www.ada-aust.com/assets/files/E8003%20114-4882-000.pdf

Features

The Merlin receiver allows you to upgrade an older garage door or gate opener to work with a new series of remote controls. A garage door receiver wires into your garage door motor, using standard 2-core wire. The receiver then listens for your remote control and when the button is pressed, opens your garage door. This does not affect the existing remote controls at all.

This is a fantastic way to upgrade your remote controls without having to buy a new garage door opener.

- The receiver doesn't affect existing remotes, by 'Adding On' to the motor it simply allows a new series of remotes to operate.

- Easy-to-read wiring diagrams available on request for all brands of gates & doors

- Compatible with the popular Merlin Security+ 2.0 series of remote controls
- Tri channel receiver to wire into three motors at the same time

Hub Dimensions  10.6 x 10.6 x 3  (cm)
 Hub Weight  152g
 Manufacturer  Merlin
 Model Number  E8003
 Remote Encryption  Security+ 2.0
 Connection Type  Wired

SPECIFICATIONS
Contact Rating. . . . . . . . . . . . . . . . 5 Amps 28 Vac or dc Max.
Power . . . . . . . . . . . . . . . . . . . .9-30V AC or 9-34V DC, 50mA
RF Frequency:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433MHz
NOTE: If your operator does not meet the power specifications you will need a low voltage power supply.
For indoor installation only.

Compatibility List

Below are a list of compatible remote controls. Your instructions will come with the dipswitch position each remote control requires. For more information, please contact our friendly team.

COMPATIBLE ACCESSORIES


Remote Controls . . .... E970M, E980M, E945M, E940M, E943M,
Keypads. . . . . . . . . ...E840M
Wireless Wall Controls ... E148M, E138M, E128M
Antenna Extension Kits . . G86LMT,
Antenna Only. . . . . . . . .K77-36541

(E8003)

SKU E8003
Brand Merlin
Shipping Weight 0.1860kg
Shipping Width 0.145m
Shipping Height 0.055m
Shipping Length 0.165m
Shipping Cubic 0.001315875m3
