Free Shipping Australia Wide

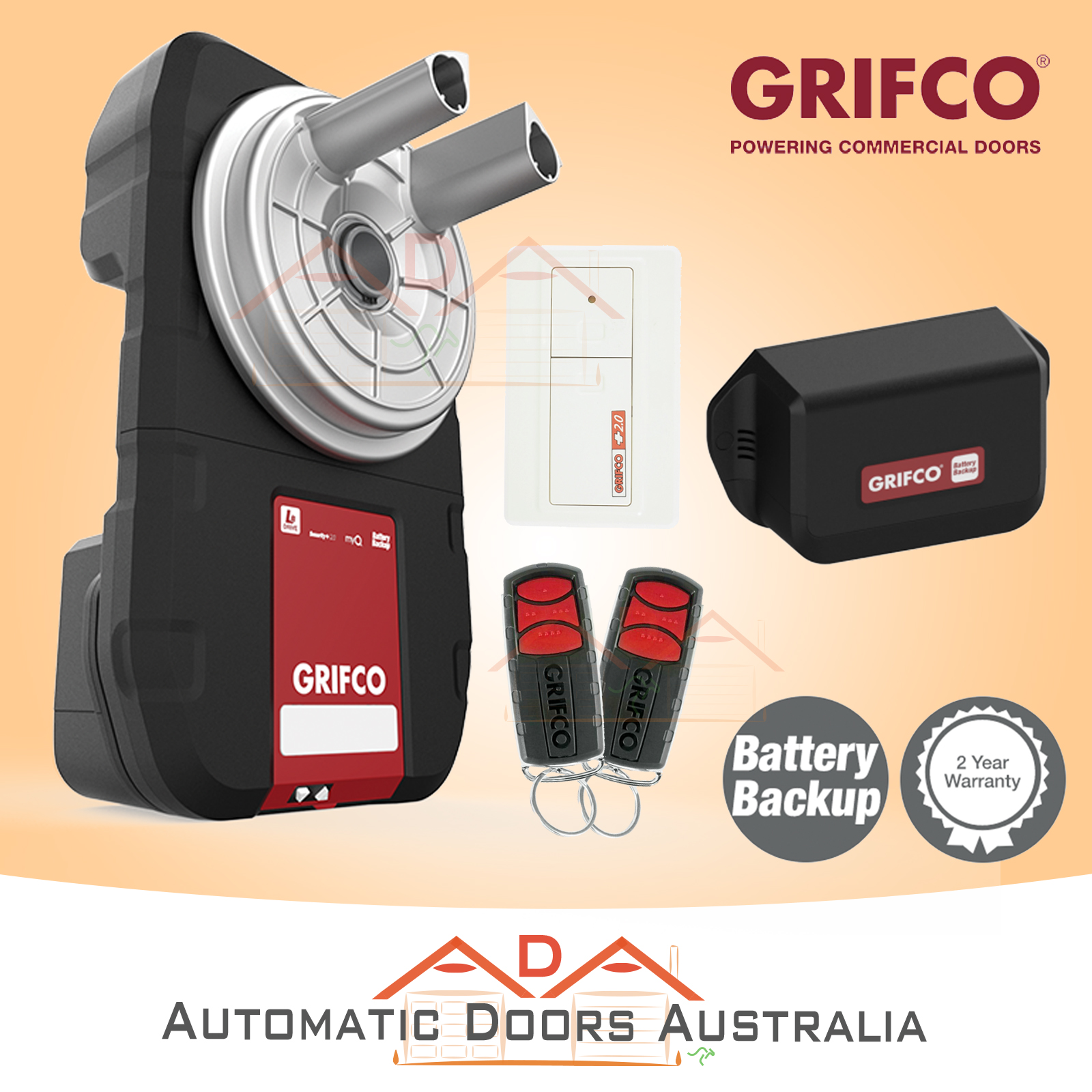

Listing Includes:


1 x Grifco LR DRIVE

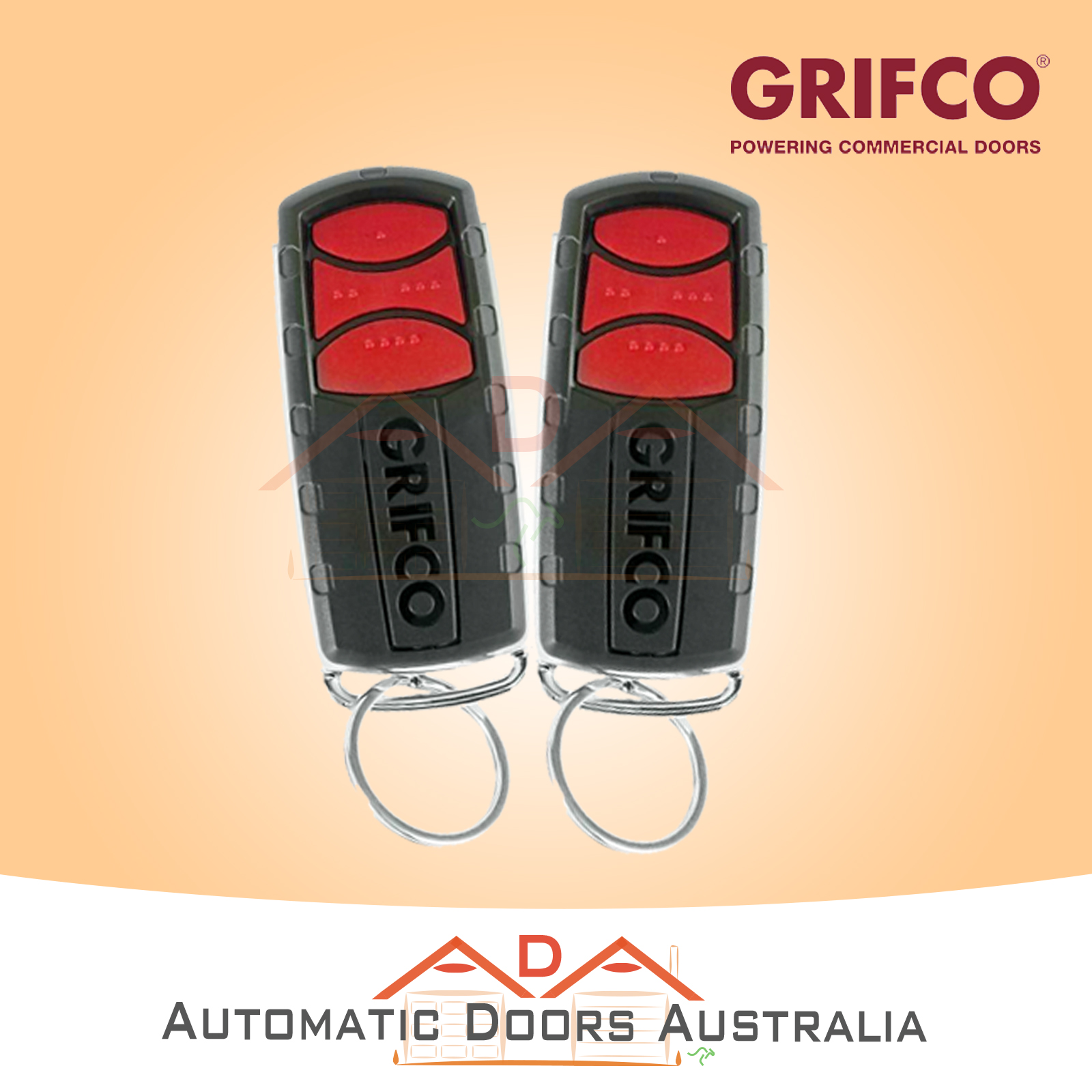

2 x E960G premium remotes

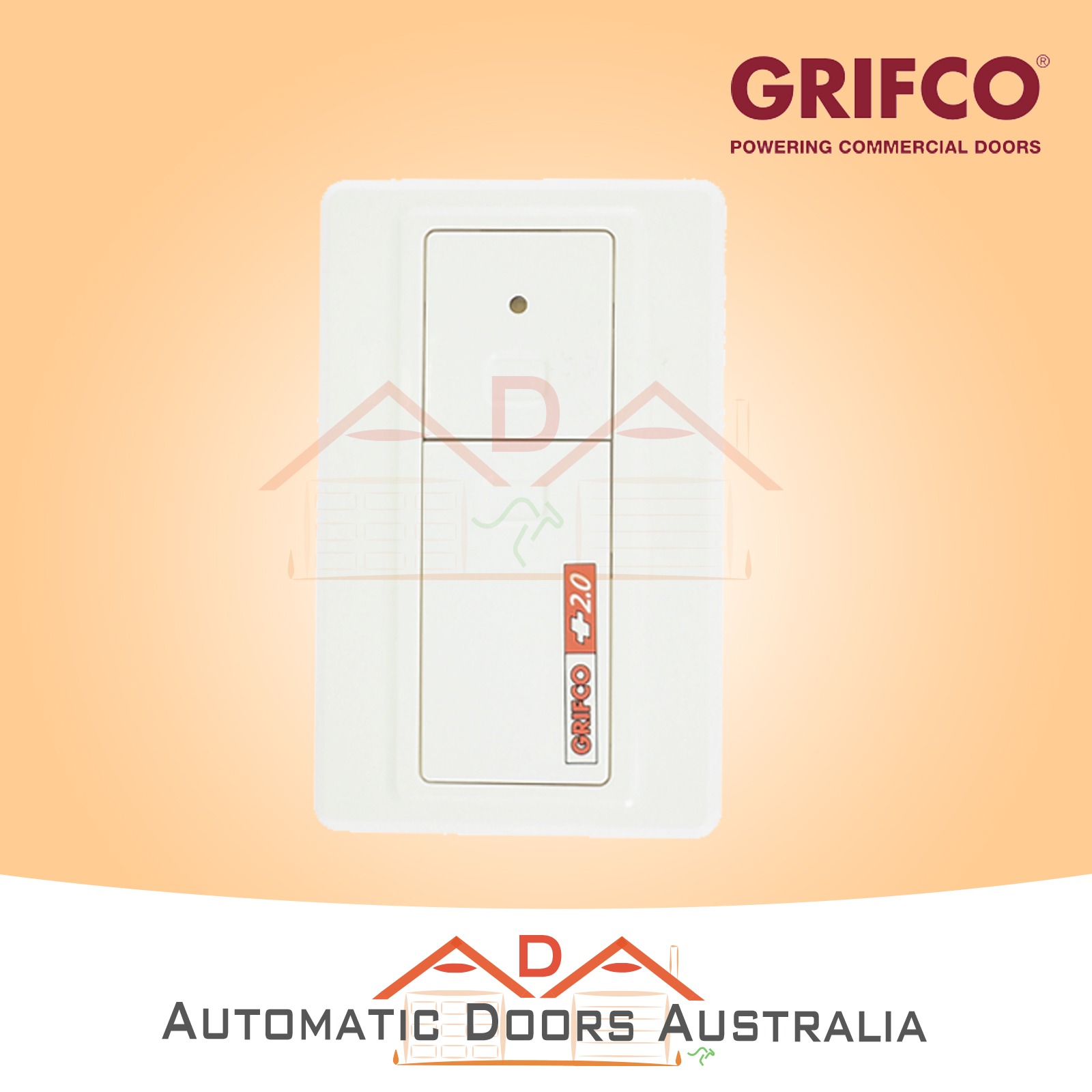

1 x E138G Wall button remote
1 x Weight bar
1 x Mounting hardware
1 x Manual Instructions



Warranty:



2 Years / 10,000 Cycles



Description:



The Grifco LR-Drive heralds the latest addition to the Grifco Light Commercial portfolio. It has been specifically designed for large and wind-locked roller doors. It is also ideal for shopfront roller grilles thanks to commercial terminals that allow dedicated open and closing.

  • Faster: LR-Drive opens a 2.4m high door in only 21 seconds. Fastest in its class!

  • Stronger: The powerful motor and gearbox can lift roller doors up to 28m²

  • Thinner: The incredibly thin operator requires only 45mm of sideroom clearance

  • Smarter: LR-Drive is myQ compatible and features dedicated inputs for open / close

With myQ technology, you can see if your door is open  or closed from anywhere in the world as well as control it*. You can also schedule to operate your door at certain times of the day and receive notifications when you desire.





Specifications:


Power Specifications
  • Main AC Power: 230-140 VAC 50Hz
  • Max. Pull Force: 1300N
  • Power: 150W
  • Operating Temp: -20oC to +50oC

Door Specifications

  • Max Door Height: 5.5m
  • Max Door Weight: 270kg
  • Normal Torque 45Nm
  • Door Type: Commercial Steel Spring-Balanaced Roller Door or Grille
  • Max. Door Size: 28m2

​                                  22m2


  • Max. Door Cycles: 50 cycles / day

Dimensions

  • Operator Dimensions: 470(H) x280(W) x 95mm(D)

                                           470(H) x280(W) x 150mm(D) with BBU                                           ​​

  • Side Room Clearance: 45mm between door drum and mounting bracket
  • Operator Depth: 95mm, 150mm with BBU (Door Curtain to Wall)
  • Tines: 2 x 90mm diecast aluminium tines
Door Height
  • Door height: 5.5m, 3.0m, 2.3m
  • Door width: 2.7m, 5.0m, 5.5m
  • Single Dwelling



(GRIFCOLRDRIVE)

SKU GRIFCOLRDRIVE
Brand Grifco
Shipping Weight 14.0000kg
Shipping Width 0.420m
Shipping Height 0.340m
Shipping Length 0.320m
Shipping Cubic 0.045696000m3
Unit Of Measure ea
