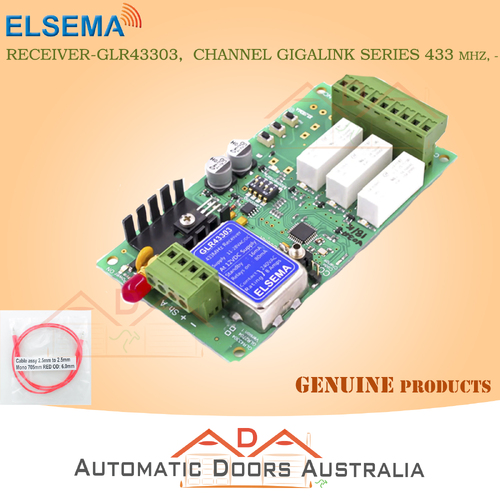

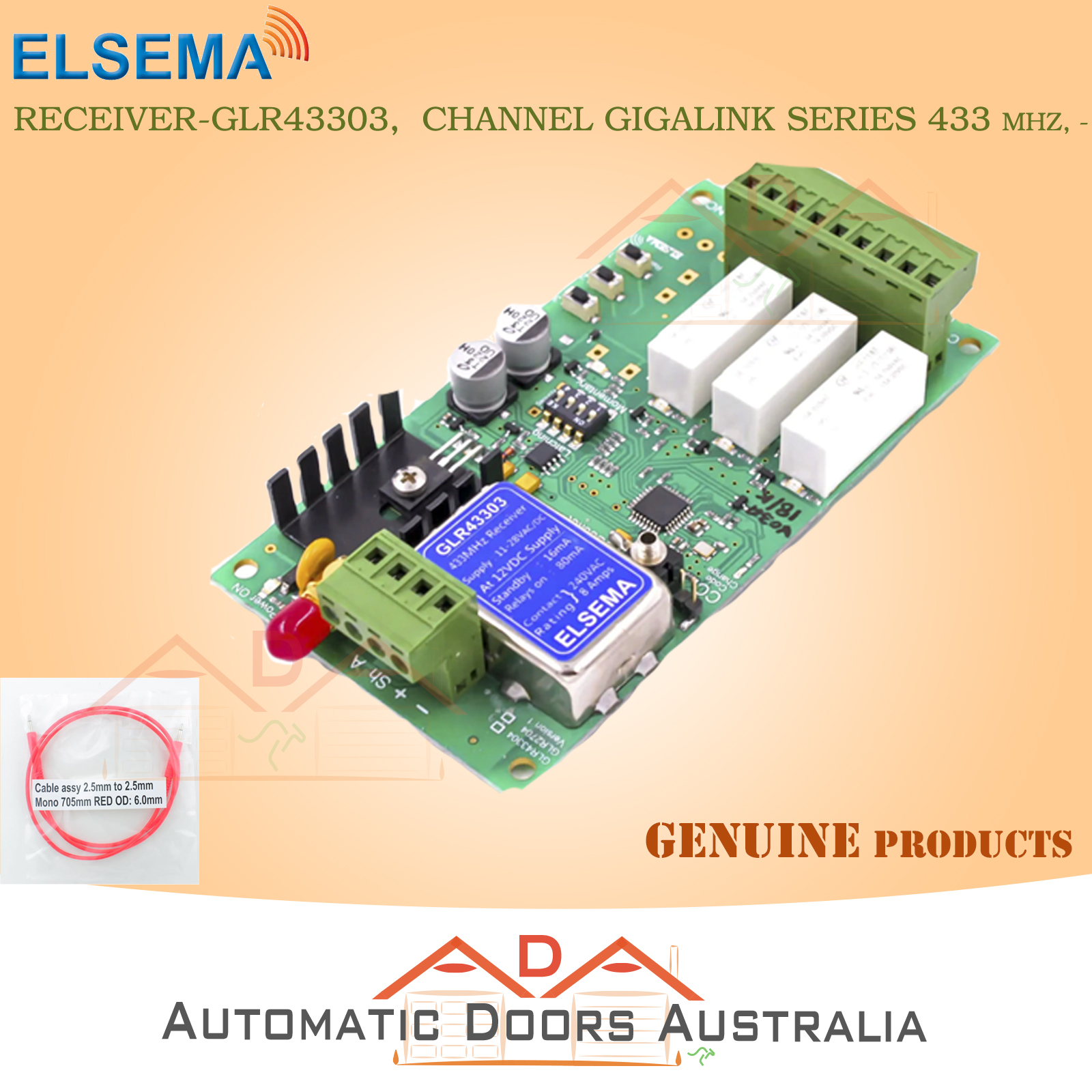

ELSEMA _ GLR43303, 3 Channel Gigalink^® Series 433MHz Receiver

This Gigalink^® receiver gives you three relay outputs that can switch currents up to 8 Amps each. There is an on-board switch to test each relay and a LED to indicate when the relay is “On”. The receiver has a power “On” LED to indicate that the correct supply voltage is connected.

The receiver’s micro-controller can store unlimited number of transmitters with a high security level using the encrypted 32-bit digital code. Included with the receiver is the Gigalink^® programming cable.

Includes:

• 1 x GLR43303 Elsema Gigalink Receiver
• 1 x Remote Coding Cable

Compatibility:

• Will be compatible if you are currently using 433MHz Eslema Gigalink remotes

FEATURES

• Three channel receiver with relay outputs
• Over 4 billion code combinations
• Supply voltage can be AC or DC
• Highly sensitive receiver input stage
• Crystal controlled for high reliability
• Can store unlimited number of transmitters
• Momentary, Latching and Security Latching output modes can be selected by the user

SPECIFICATIONS

• Supply Voltage: 11.0 - 28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000 or 24PP.
• Current Consumption: 16mA standby
• Receiving Frequency: 433.920MHz (other frequencies available on request)
• Sensitivity: Better than 1µV (for relay output to switch on)
• Relay Output: Two change over relay outputs, rated at 8 Amps / 240VAC
• Antenna: Elsema ANT 433MHz series
• Dimensions: 130 x 70 x 20mm
• Useable Transmitters: All Elsema type GLT433 series
