ELSEMA_915 ANTENNA – ANT915S_N


Free Delivery Australia-wide only ***

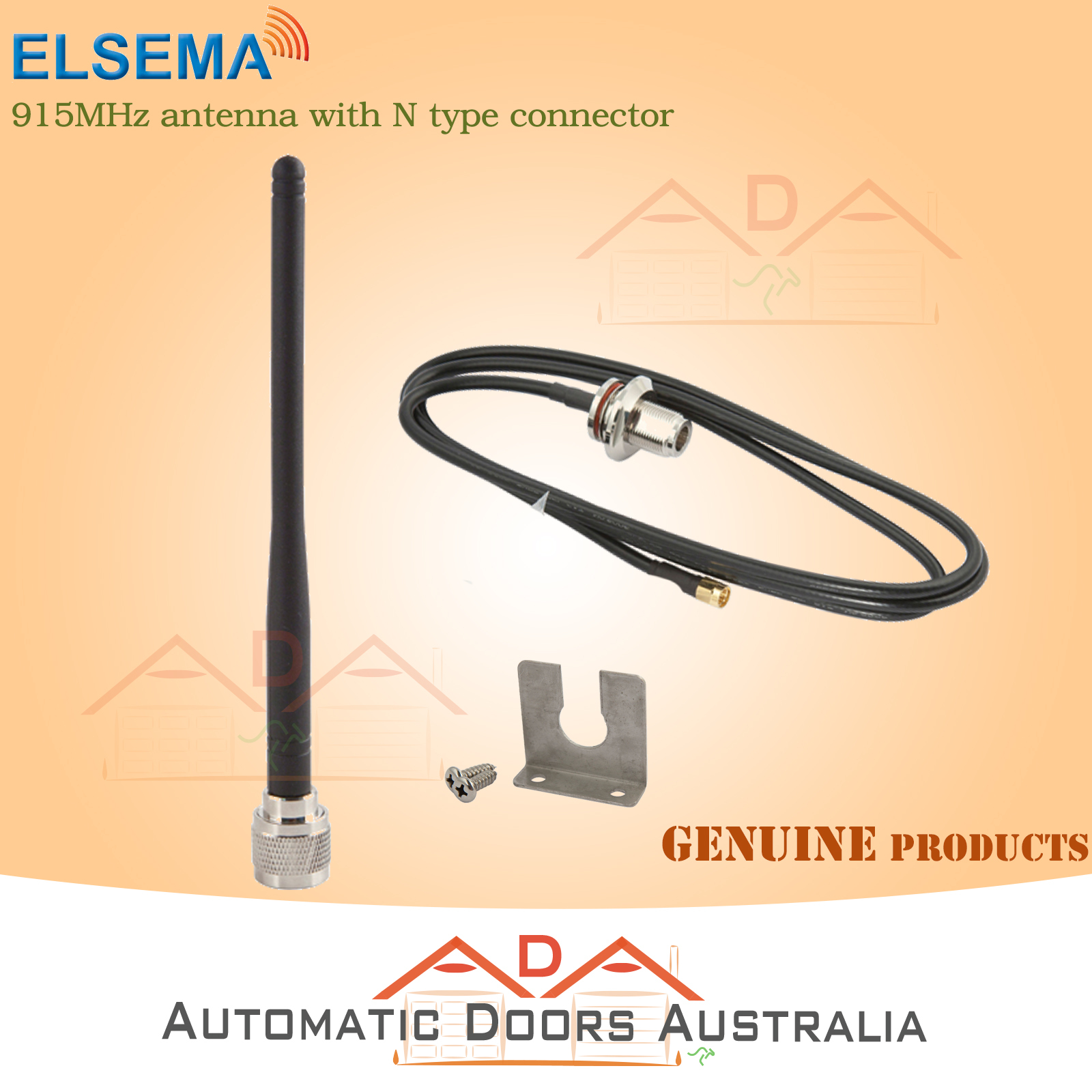

Includes:

  • ANT915S-915MHz antenna with coaxial cable, mounting bracket and SMA connector
  • 3.6 metres of low loss coaxial cable terminated with an SMA connector
  • Mounting Bracket

Warranty -  02 year manufacturer's warranty

Description

THE ANT915S_N antenna represents the “State of the Art” in Ground Independent Antenna technology, providing a low angle of radiation with a minimum of 4dBi gain.

The base is made from a high grade N-connector to allow the whip antenna to be disconnected from the base.

The antenna comes standard with a universal mounting bracket for wall or roof installations and includes 3.6 metres of low loss Cellfoil coaxial cable terminated with a SMA connector.

Features

  • Tuned to the 915MHz band
  • Includes Low Loss Cellfoil Coaxial Cable and mounting bracket
  • High quality SMA connector
  • N-type connector base for very low loss and weatherproof

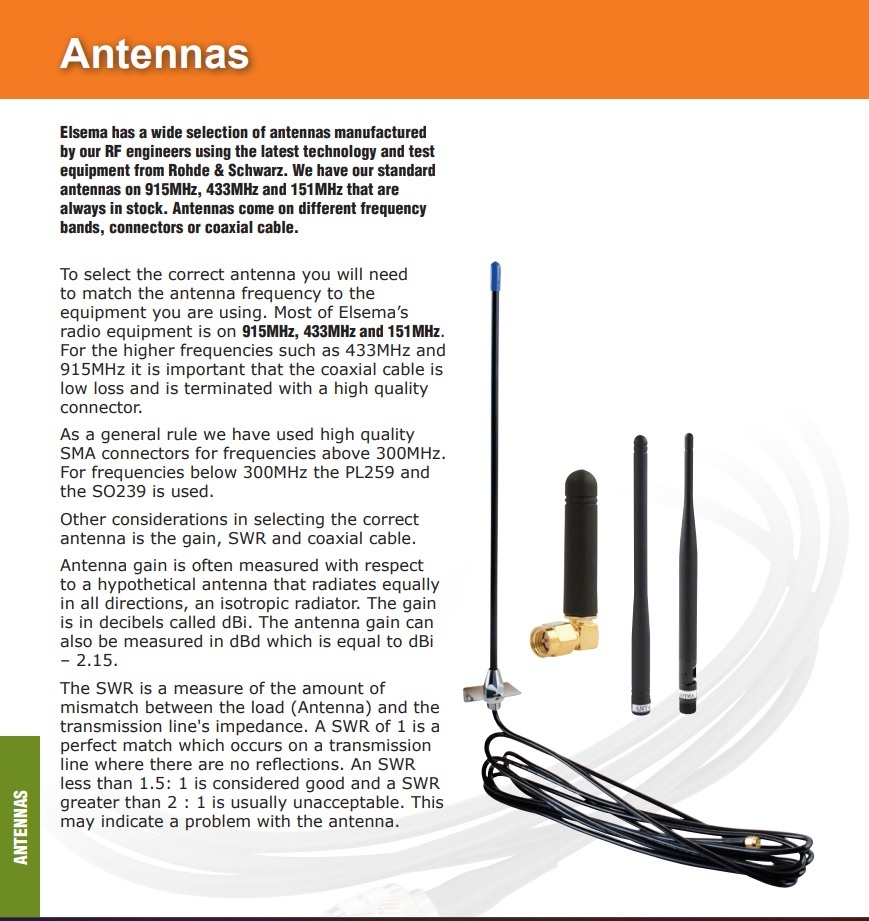

Antennas, Coaxial, Connectors and Mounting brackets

Elsema has a wide range of antennas manufactured by RF engineers using the latest technology and test equipment from Rohde & Schwarz.

We have our standard antennas on 151MHz, 433MHz, 915MHz, GSM, Next G and 3G that are always in stocks. Antennas come on different frequency bands, connectors or coaxial cable can be designed to meet specific customer requirements.

Part Number 915S-N
Frequency 875 to 950MHz
Length 18 cm
Gain 4 dBi

https://www.ada-aust.com/assets/files/915s-n.pdf







(ANT915S_N)

SKU ANT915S_N
Brand Elsema
Shipping Weight 0.2550kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.380m
Shipping Cubic 0.001140000m3
