ELSEMA_433Mini ANTENNA – 433Mini


Free Delivery Australia-wide only ***


Includes:

1 x 433Mini ANTENNA..

Warranty -  02 year manufacturer's warranty



Description

To be used with 433MHz Gigalink Receivers

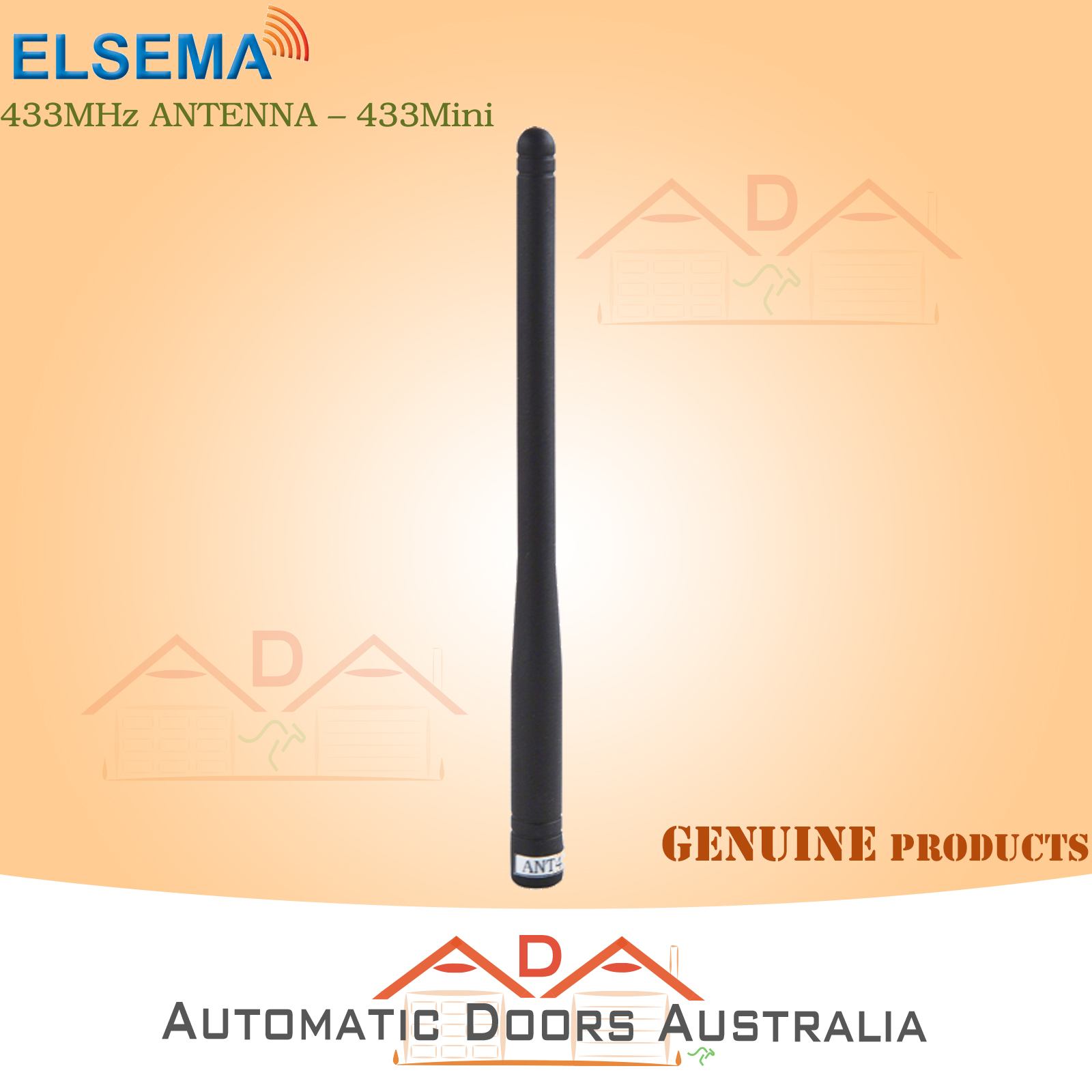

The 433Mini is a 18 cm long antenna made for portable applications. It can be used on any 433MHz equipment where a small antenna is required. The termination on the 433Mini is a high quality SMA connector.

Features

  • Tuned to the 433MHz band
  • SMA termination
  • Short length at 18 cm
  • Uses strong molded flexible rubber
  • Specifications

    Frequency - 430.00 to 440.00Mhz

    Turned Bandwidth - 10.00Mhz

    Gain - 1.0 dBi

    Impedance - 50 Ohms

    Maximum Power - 5 Watt

    Radiated Pattern - Omni Directional

    Length - 18 cm

    Weight - 12 grams

    Termination - SMA, Standard

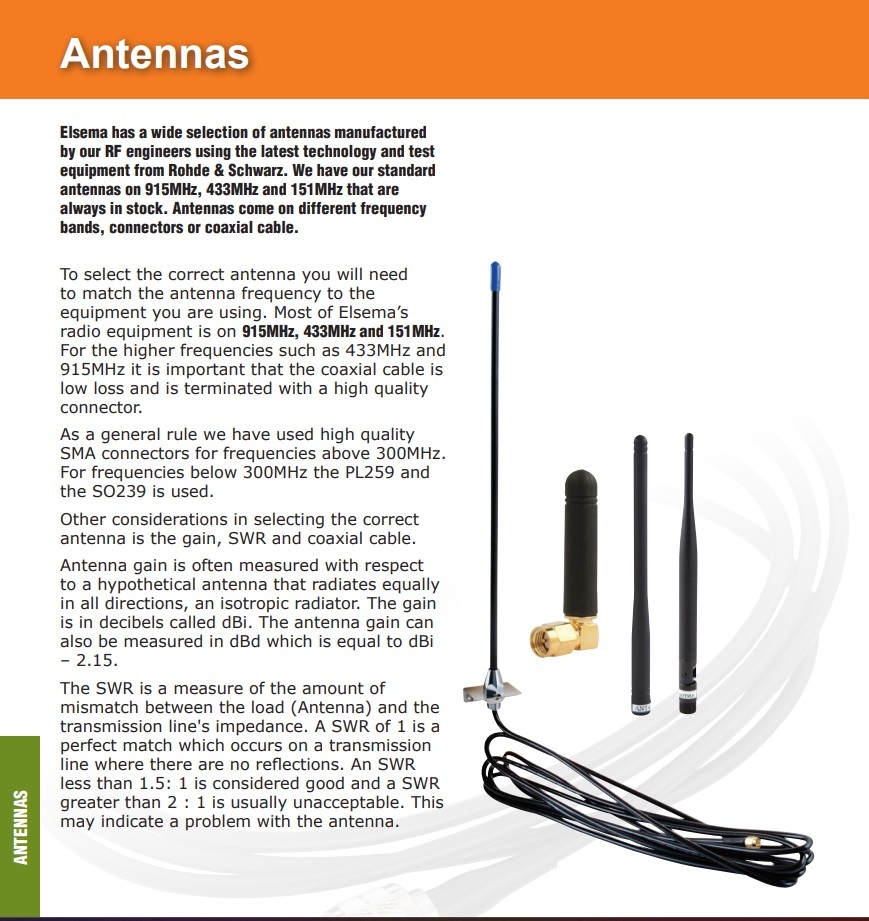

Antennas, Coaxial, Connectors and Mounting brackets

Elsema has a wide range of antennas manufactured by RF engineers using the latest technology and test equipment from Rohde & Schwarz.

We have our standard antennas on 151MHz, 433MHz, 915MHz, GSM, Next G and 3G that are always in stocks. Antennas come on different frequency bands, connectors or coaxial cable can be designed to meet specific customer requirements.

Part Number 433Mini
Frequency 433 to 440 MHz
Length 18 cm
Gain 1 dBi



 https://www.ada-aust.com/assets/files/433mini.pdf





(433Mini)

SKU 433Mini
Brand Elsema
Shipping Weight 0.1400kg
Shipping Width 0.120m
Shipping Height 0.020m
Shipping Length 0.180m
Shipping Cubic 0.000432000m3
