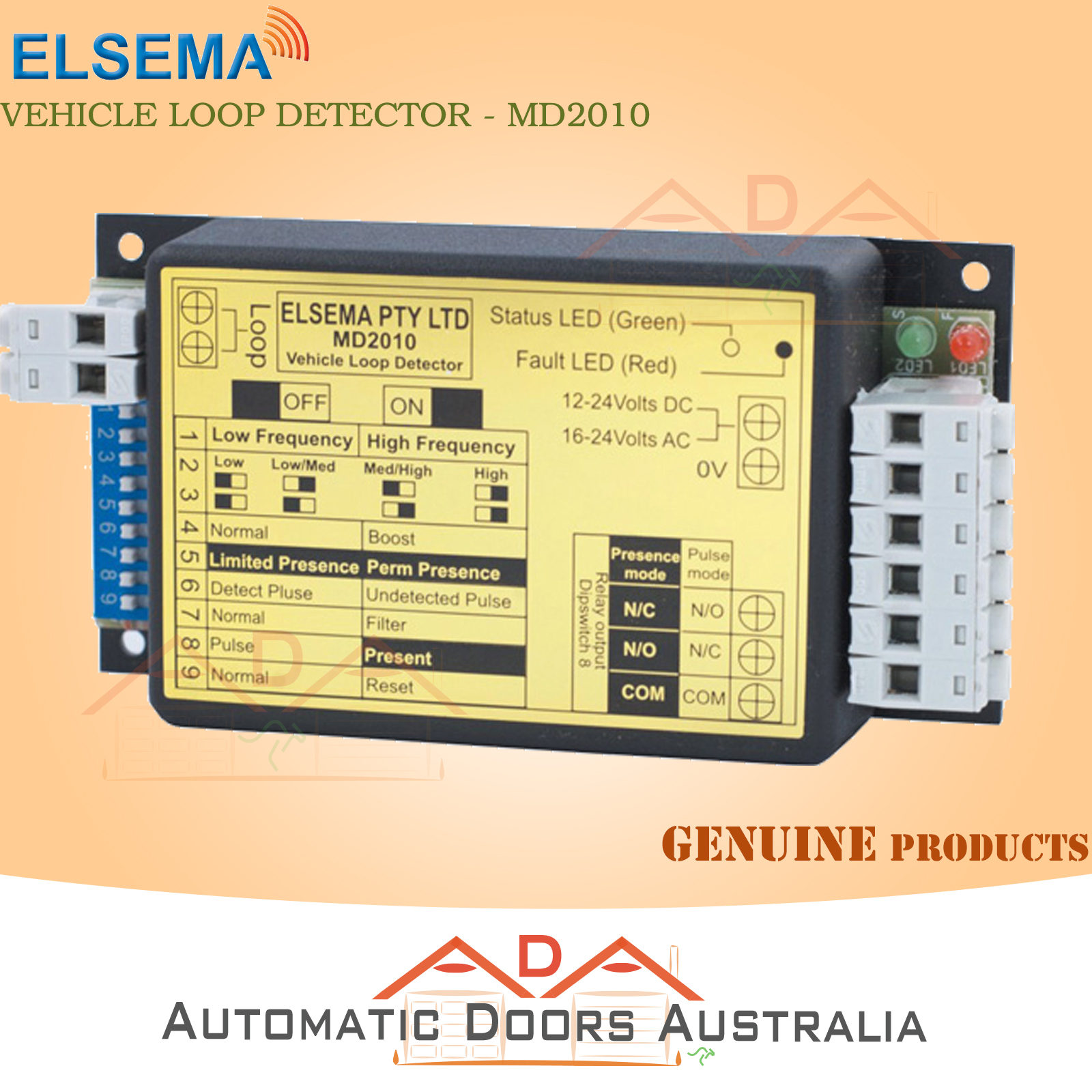

ELSEMA_ MD2010  - MEDIUM SENSITIVITY VEHICLE LOOP DETECTOR FOR AUTOMATIC GATES AND DOORS

Free Delivery Australia-wide only **********

 Includes

• MD-2010 Medium sensitivity loop detector (For single motor, 1 x relay output, 12-24V AC/DC)

Warranty -  01 year manufacturer's warranty

​Description

The digital technology of the loop detector enables the equipment to sense a change in the inductance of the loop as soon as it detects the metal object in its path. The inductive loop which detects the object is made of insulated electrical wire and is arranged either as a square or rectangle shape.

Features

• Wide supply range: 12.0 to 24 Volts DC 16.0 to 24 Volts AC
• Selectable sensitivity
• Pulse or Presence setting for relay output.
• Power up and loop activation LED indicator

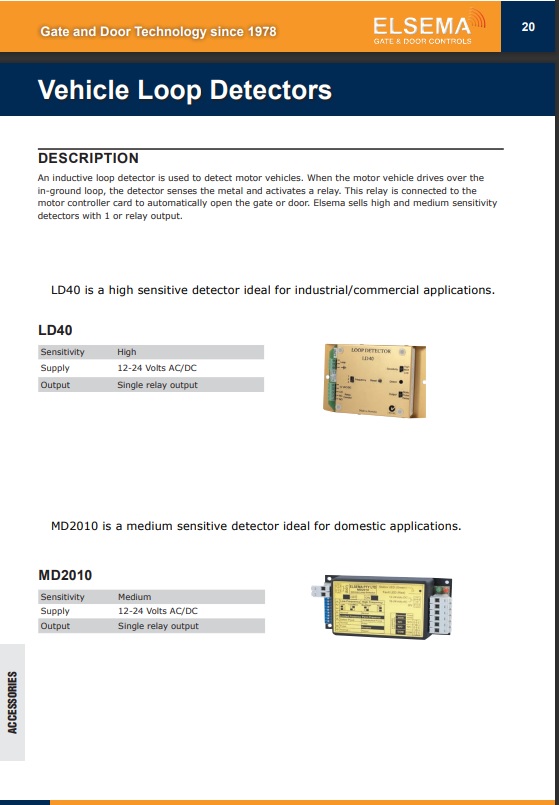

Vehicle Loop Detectors

An inductive loop detector is used to detect motor vehicles. When the motor vehicle drives over the detectors wire loop the detectors senses the metal and then a relay is activated.

This relay is connected to the motor controller card to automatically open the gate or door. Elsema sells high and medium sensitivity detectors with relay output.

Elsema has a range of Saw-Cut loops and Direct Burial loops. They are pre-formed with recommended loop sizes for commercial or domestic applications and makes installation quick and easy.
