ELSEMA PENTA WIRED 1 CH RECEIVER – PCR43301RE

Free Delivery within Australia only

Lisiting includes

  • 1 x Brand new Elsema PCR43301RE - 1-Channel, 433MHz Penta Receiver with Frequency Hopping
  • 3 x Penta Fob Transmitters
  • Easy programmable instructions

Descriptions

PCR43301RE

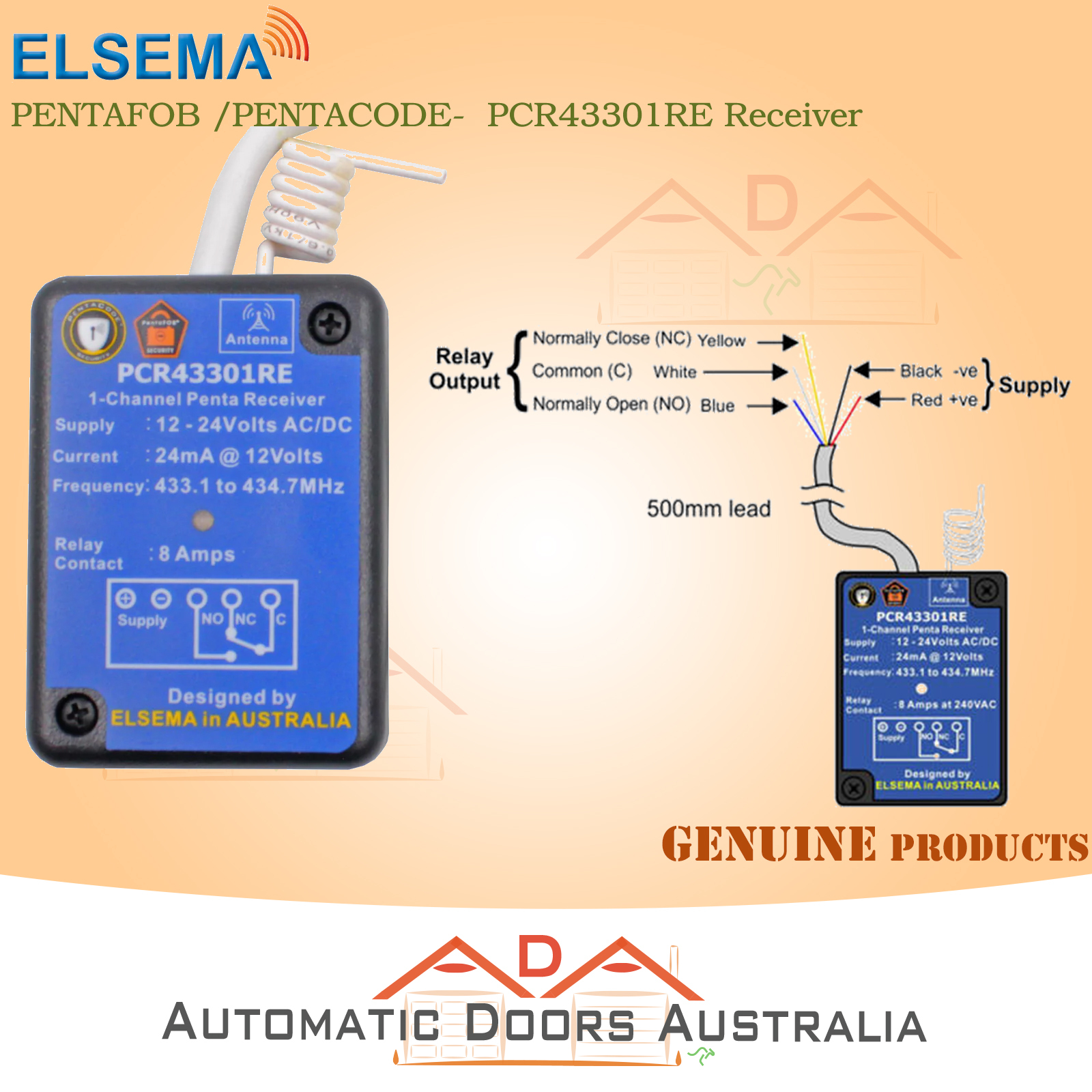

Single Channel Stand-alone Penta Series 433MHz Receiver

This receiver is compatible with “PentaFOB® and “PentaCODE® remotes. The receiver is so small that it can be easily installed into your existing automatic gate opener or garage door controls. Other applications include light control, security shutters or anywhere else you need a wireless signal to transmit a contact closure.

The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

With the 12-way dip switch, just match the keyring remotes and the receiver’s dip switch and it’s coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.



Features

  • Frequency hopping between 433.10 to 434.70MHz
  • 12-way dipswitch or encrypted coding
  • Compatible with PentaFOB® and PentaCODE® remotes
  • Unlimited remotes can be programmed to the receiver
  • Wide operating supply voltage and low current consumption
  • Momentary and latching modes are user selectable
  • On-board diagnostic LED’s to indicate correct power, reception and relay activation



Specifications

 Hub Dimensions  7 x 5.5 x 2.5 (cm)
 Hub Weight  -g
 Manufacturer  Elsema
 Model Number  PCR43301RE
 Remote Encryption  PentaCode & PentaFob
 Connection Type  Wired
 Warranty  2 Year

Warranty - 12 Months Money Back or Replacement

(PCR43301RE)

SKU PCR43301RE
Brand Elsema
Shipping Weight 0.0900kg
Shipping Width 0.095m
Shipping Height 0.020m
Shipping Length 0.120m
Shipping Cubic 0.000228000m3
