Free Shipping Australia Wide


Listing Includes:

1 x PE 1500 Beam unit
1  x Reflector
1 x Sensor Cover
Fittings
Mounting Brackets
Instructions
Free Delivery



Warranty:

1 Year Warranty



Description:

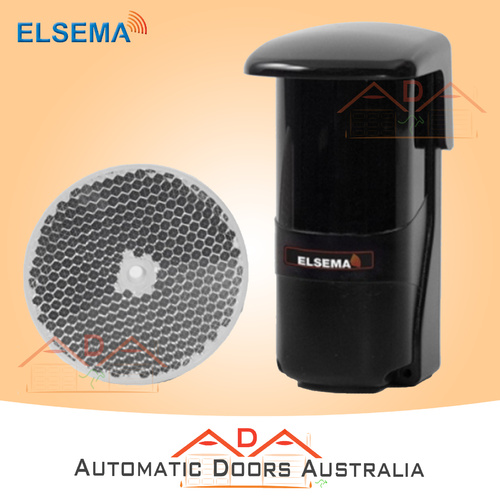

The PE1500 is a polarised ultra sensitive, long range, retro-reflective photoelectric beam. The sensor module uses a modulated beam which stops interference from the sun and can be used outdoors to 12 metres. It works with any Elsema type automatic gate or door controller cards used on sliding, swing or roller doors. It is used as a safety device to control automatic gates and doors.

With IP66 rated case the PE1500 is ideal for outdoor installations. The polycarbonate casing provides protection again sun damage and reliable operation in rainy, foggy or dusty environments.



Application:



  • Sliding Gates, Swing Gates or Garage Doors
  • Overhead Doors, Conveyers or Door Entrance
  • Boom Gates, Alarm System or Warehouse Monitoring

Features:

  • Long range beam, 12 metres outdoor
  • Input V oltage 12 - 250V AC/DC
  • Polarised retro reflective type
  • Polycarbonate weatherproof casing, anti fog/rain/dew
  • Optional cover for reflector, HD-15
  • Rugged all weather design (IP-66)
  • LED indicator beam alignment
  • Tamper switch


Technical Data:

  • Power Source: 12 to 250 Volts AC/DC
  • Standby: 19mA at 24Volts DC
  • Response Time: 10 millisecond
  • Connection: Plug in type terminal block
  • Additional feature: Normally closed (NC) Tamper output
  • Operating Temperature: -20 ̊C to 60 ̊C
  • Relay Output: Common, Normally Open or Normally Close: 0.5 Amps / 120VAC
  • Useable Operating Range: 18 metres indoor and 12 metres outdoor range
  • Dimensions: 122 (L) x 61(W) x 62(D) mm



CLICK HERE FOR INSTRUCTION MANUAL




(ELSEMAPE1500)

SKU ELSEMAPE1500
Brand Elsema
Shipping Weight 0.3000kg
Shipping Width 0.018m
Shipping Height 0.017m
Shipping Length 0.085m
Shipping Cubic 0.000026000m3
Unit Of Measure ea
