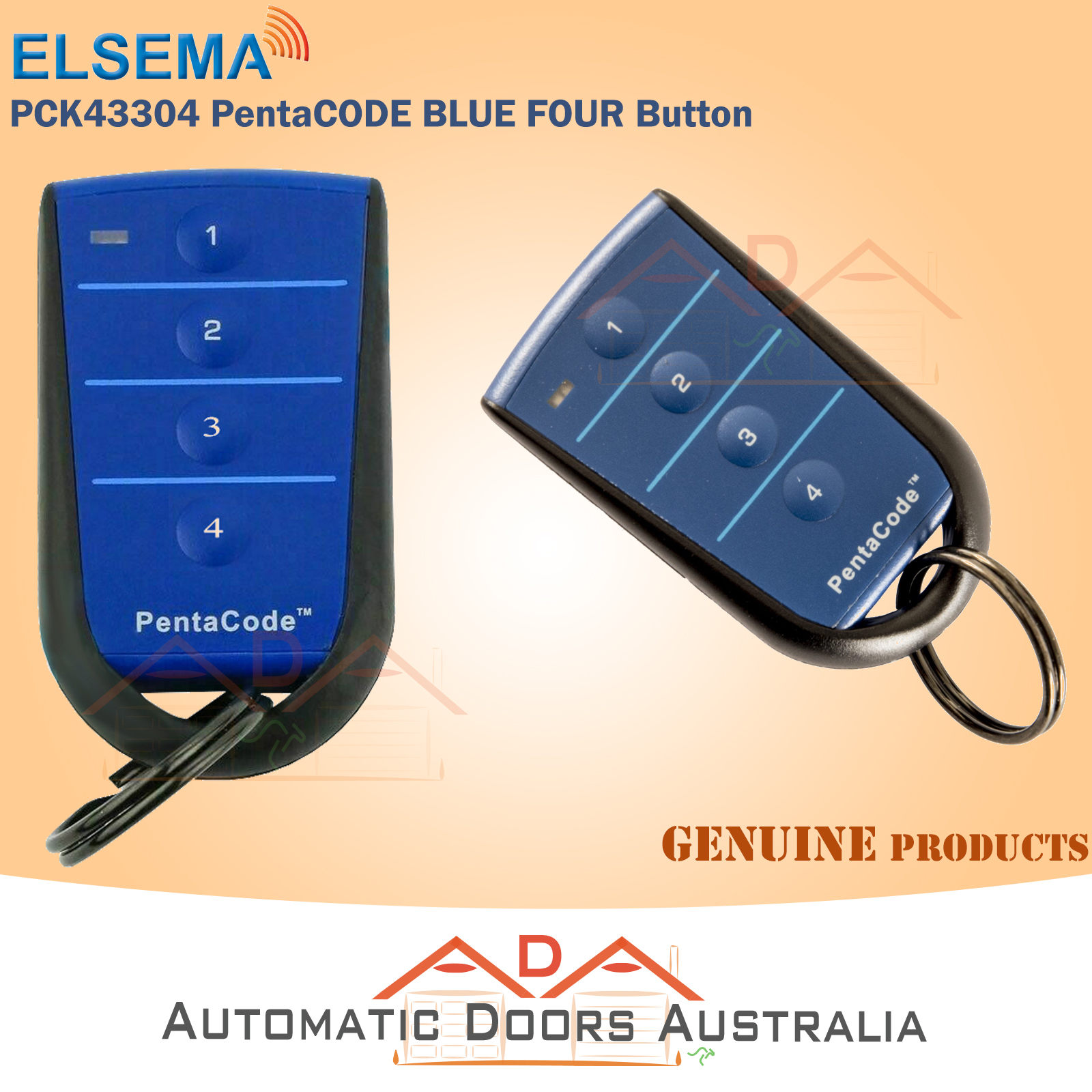

Elsema PCK43304_ PentaCODE BLUE FOUR Button Remote Control

Free Delivery within Australia only

Includes

• Elsema PentaCODE PCK43304_BLUE Remote
• A23 12v Lithium Battery
• Instuction manual

Warranty -  01 year manufacturer's warranty

Description

PentaCODE Series

The Next Generation of Wireless Key Fob Remote Controls, Superior to Rolling Code Remotes

The PentaCODE^® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

The PCK43304 remote control has two buttons, which will allow you to code this remote control to two door or gate openers. The PentaCode remote controls have a dual coding ability, which gives you the option to use either the classic 12 way dip switch coding or one of over 17 billion encrypted codes via a ‘Rolling Code’. The PentaCode series of remote controls are available in 2 or 4 button configurations. The keyring retainer is moulded as part of the chassis using reinforced nylon, making this one of the sturdiest remote controls on the market.

If you want to use the dipswitch encoding method, simply match the PentaCode remotes dipswitches to the receivers dipswitches and the remote control will be ready for use.

If you want to use the rolling code method, you switch all of the dipswitches in the rear of the remote control to off. The remote control can then be programmed into the Elsema receiver, enabling your high security remote control to operate the receiver.

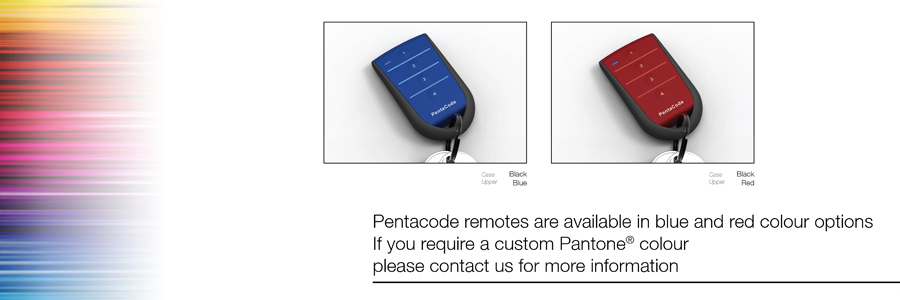

The PentaCODE® series is an extremely versatile remote control that can be customized through a range of configurations and colors to suit your needs.

Features

• Keyring transmitter with 2 or 4 channels
• Dual Coding System, 12-way dip switch coding or one of over 17 billion encrypted codes
• Simultaneously transmits the code on 5 different frequencies, making it impossible for the remote to be interfered with or jammed
• Uses frequency hopping spread spectrum (FHSS)
• Operating range of up to 200 metres depending on building structure and receiver antenna
• Custom print available for front labels.
• Designed in Australia and competitive pricing
• AS/NZS 4268, CE and FCC Certified
• PentaCODE brochure
• Technical data click here

Programming Instructions

1. Check that all switches are “OFF” on the receivers 12-way dip switch
2. Press and hold the program button on the receiver
3. Press the remote button for 2 seconds, receiver LED will flash and then turn Green
4. Release the button on the receiver and the remote
5. Press remote control button to test the receiver output

https://youtu.be/noQXsG4ARf8

https://www.ada-aust.com/assets/files/pckseries.pdf

https://www.ada-aust.com/assets/files/PentacodeProgramming.pdf

Compatibility

The Elsema PentaCode remote controls are designed to with PentaCode and PentaFox remote controls and their associated receivers.

Compatible Elsema PentaCODE Receivers

Penta Series 433MHz Receivers

Elsema has once again revolutionised the wireless, automatic gate and door industry. With our next generation of Penta series that use dual coding, frequency hopping, antenna diversity and customisable features, these receivers are superior to rolling code receivers and remotes.

Penta originated from the 5 sides of a Pentagon. The 5 sides representing each frequency the receiver operates on. Most receivers operate on a single frequency, we wanted to be the first in the world to operate a receiver with Key Fob remotes on 5 different frequencies giving it a high level of security and immunity to interference.

Combine these receivers and Key Fobs with our intelligent automatic gate and door motor kits, installation and operating an automatic gate and door has never been easier.

Penta series Receiver Selection Table

Elsema PCR43301RE
Elsema PCR43301240R
Elsema PCR43302R
Elsema PCR43302240R
Elsema PCR43304R
Elsema PCR43305R
Elsema PCR433WG
Elsema PCR43302P
Elsema PCR43301240RE
Elsema PCR43302RE
Elsema PCR43302240RE
Elsema PCR43304RE
Elsema PCR43305RE
Elsema PCTR433

TECHNICAL DATA

• 12-way dip switch coding or one of over 17 billion encrypted codes
• Option of 2 or 4 buttons
• Operating range of up to 200 metres depending on building structure and receiver antenna
• 18mA (typical) at 12 Volts DC supply during transmission
• Battery life of 1.5 years with average use
• Frequency Band: 433.100 to 434.700 MHz
• Custom print available for front labels
•
