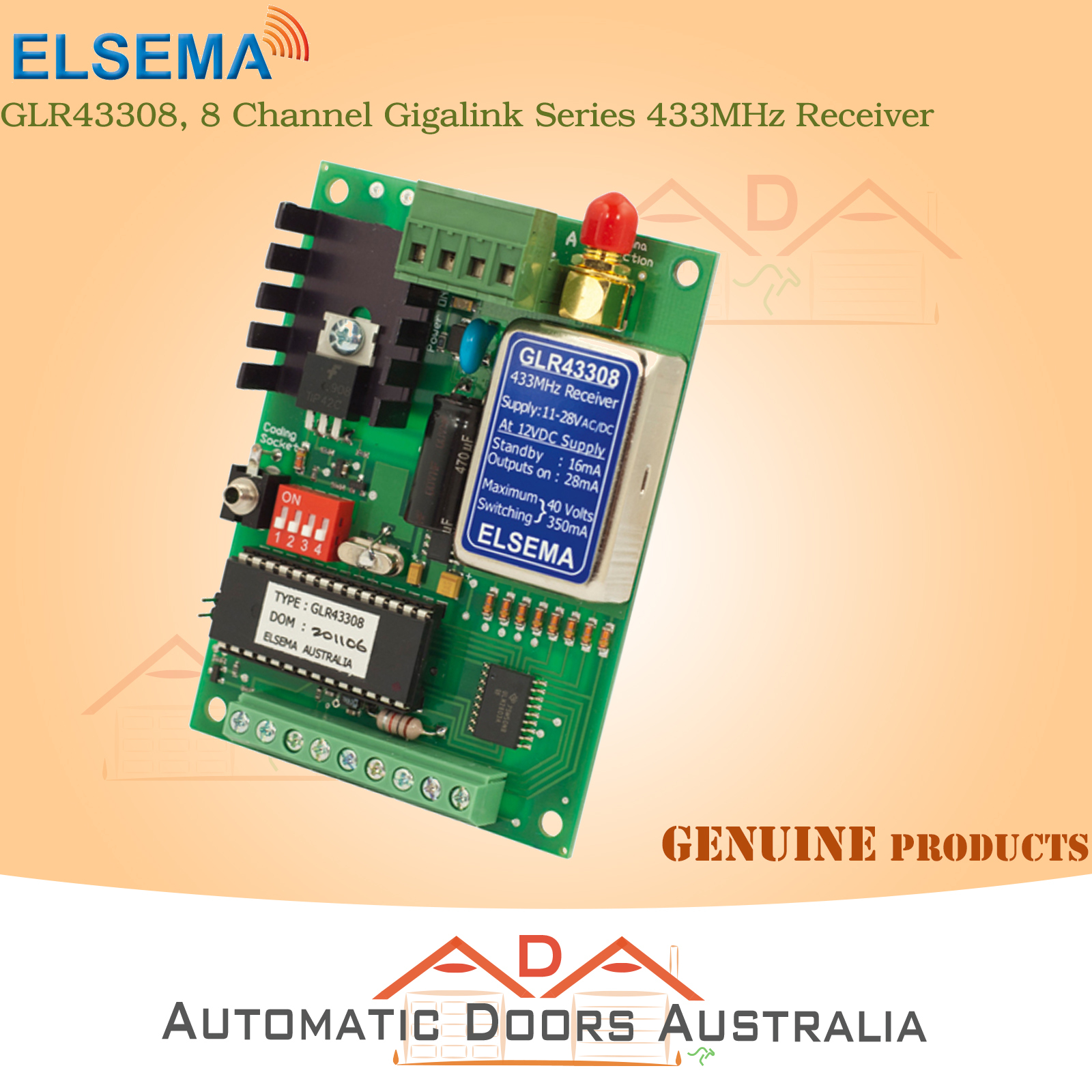

ELSEMA GLR43308POS 8-Channel 433MHz Gigalink Receiver
GLR43308POS
GLR43308POS... 8 Channel Gigalink® Series 433MHz Receiver
8-CH . 11-28 VAC/DC SUPPLY
**Free Delivery within Australia only
1 X Elsema GLR43308POS Wired 8 Channel Gigalink Receiver
Warranty - 01 year manufacturer's warranty
Discription
This Gigalink receiver gives you eight outputs.
The outputs for GLR43308 switches to negative when activated. Outputs can hold 40 Volts in “Off” state with output current rated up to 125mA.
The outputs for GLR43308POS switches positive when activated. Each output can be up to 50 Volts and a drive current of 120 mA
The outputs are protected with a diode to stop any EMF or transient from getting to the receiver.
The receiver’s micro-controller can store unlimited number of transmitters with a high security level using the encrypted 32-bit digital code. Included with the receiver is the Gigalink programming cable.
- Operating range of up to 350 – 400 metres
- Can store unlimited number of transmitters
- Supply voltage can be 12 – 24 Volts AC or DC
- Momentary, Latching and Security Latching output modes can be selected by the user
- Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation, Automatic Gates, Security Systems, Timer Controlled outputs and other simple on/off functions
Features
- Supply voltage can be 12 – 24 Volts AC or DC
- Highly sensitive receiver input stage. When used with GLT433… transmitters an operating range of 350 metres (980 ft) is possible. • All outputs can be operated simultaneously.
- Two versions available
- GLR43308POS positive switching output
- GLR43308 open collector output
- Crystal controlled for high stability and performance.
- Uses micro-controller technology that can be re-programmed to suit unique applications.
- Momentary, latching and security latching output modes is user selectable.
Receiver Compatibility
This Elsema GLR43308 receiver is compatible with the Gigalink series of Elsema remotes.
GLT43301
GLT43302
GLT43303
GLT43304
GLT43308
ANT433 LP (Antenna)
ANT433 S (Antenna)
ANT433 M (Antenna)
Applications
- Automatic gates.
- Security systems.
- Timer controlled outputs.
- Simple on/off function.
https://youtu.be/X1V0ReHyHY0
https://youtu.be/8VkWCMCLe6Q
https://youtu.be/X1V0ReHyHY0
https://www.ada-aust.com/assets/files/glr43308p.pdf
| DIP Switch Mode Settings The output relay will respond in the following manner when receiving the correct signal from a transmitter | ||
| All OFF | "All Momentary": Relay on, only while correct signal is received | |
| 1 ON | "All Latching": Outputs alternate at every correct incoming signal | |
| 2 ON | "Momentary & Latching": Outputs 1-4 are momentary & 5-8 are latching | |
| 1 & 2 ON | "Security Latching on": Outputs will be on until supply to receiver is momentarily interrupted | |
| 3 ON | "Momentary & Latching ": Outputs 1-6 are momentary & 7-8 are latching | |
| 1 & 3 ON | "Momentary & Latching ": Outputs 1-2 are momentary & 3-8 are latching | |
| 2 & 3 ON | "Momentary & Latching ": Outputs 1-3 are momentary & 4-8 are latching | |
| 1, 2 & 3 ON | "Security Latching on": Output 1 is security latching & 2-8 are momentary |
(GLR43308_POS)
| SKU | GLR43308_POS |
| Brand | Elsema |
| Shipping Weight | 0.1490kg |
| Shipping Width | 0.125m |
| Shipping Height | 0.030m |
| Shipping Length | 0.165m |
| Shipping Cubic | 0.000618750m3 |
