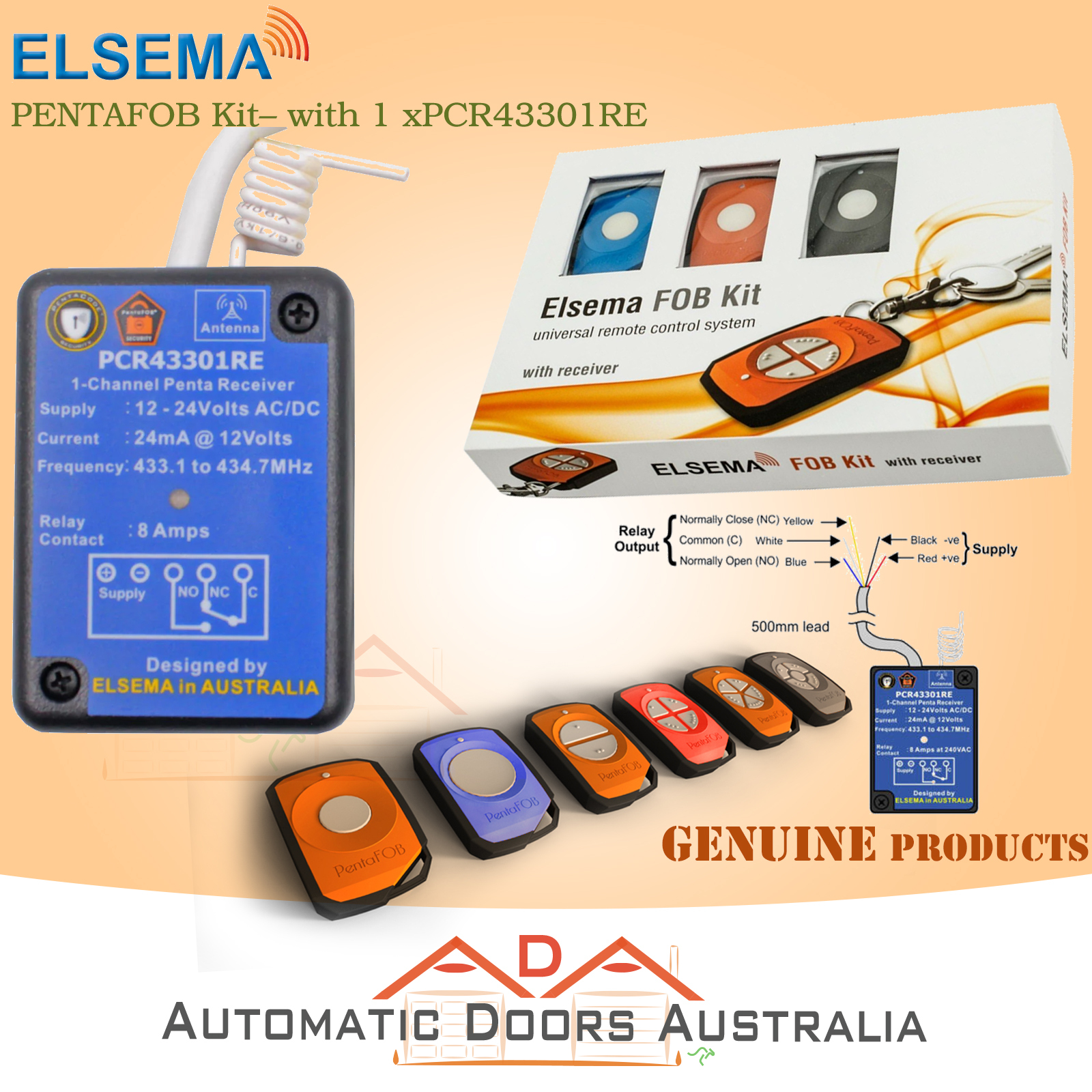

Elsema FOB Kit  WITH PCR43301RE Receiver

Free Delivery within Australia only

Includes

• 3 x Pentafob Remotes
• 1 x PCR43301RE Receiver
• Manual

Note :- Please let us know your choise of  Remote and colour by mail with the attaching  invoice

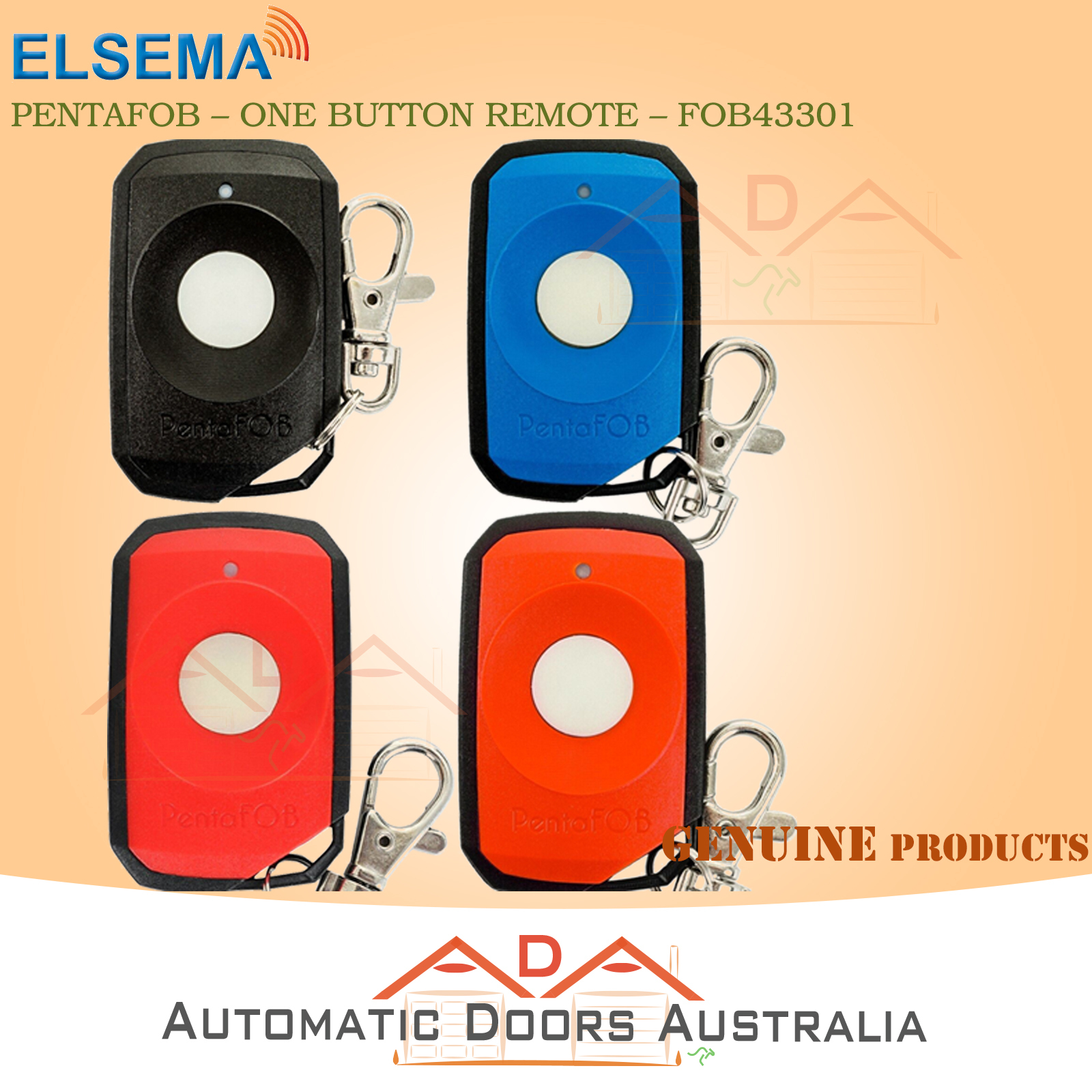

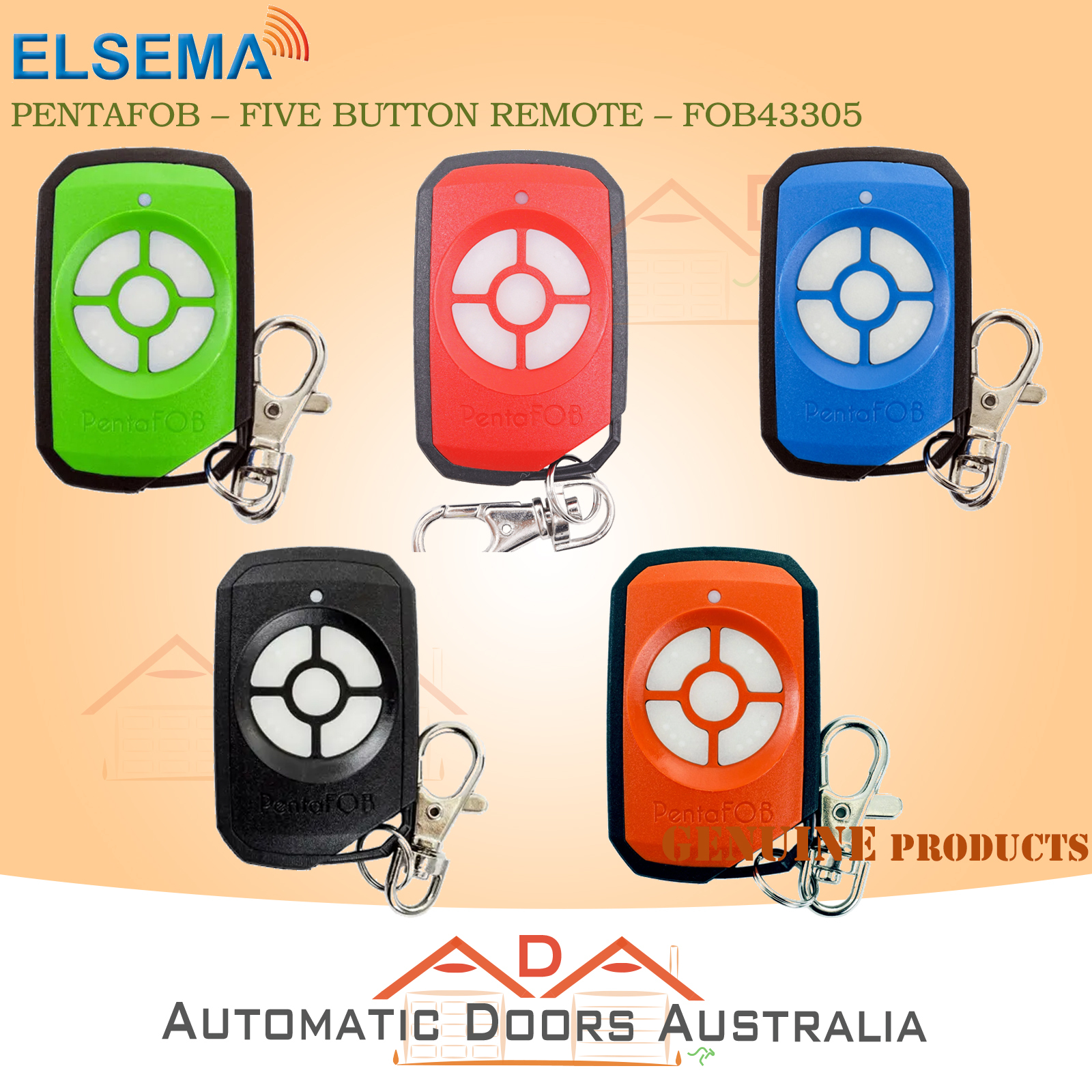

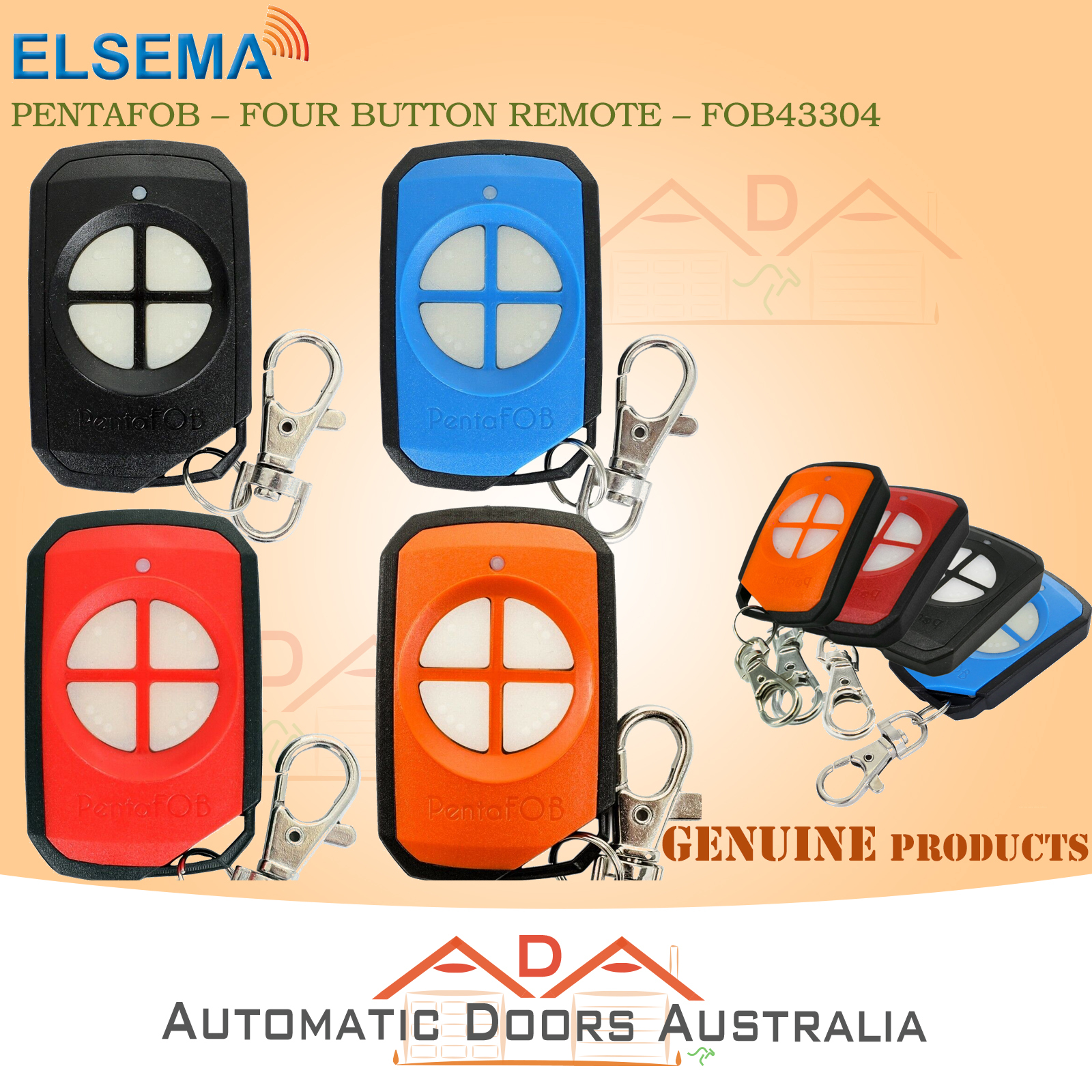

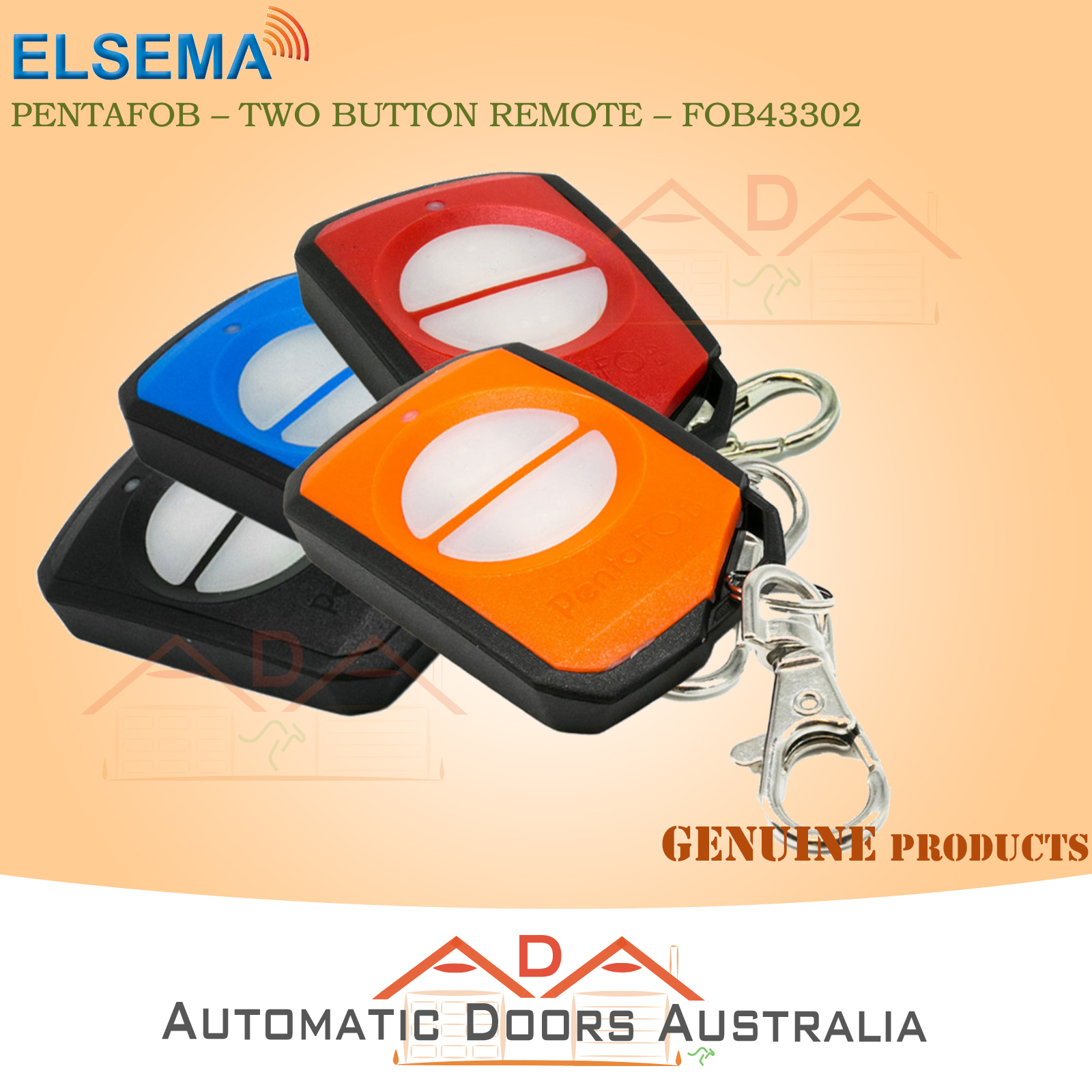

Personalise FOB remotes to match your personal choice or your company colour. Four different colours to choose from.
Default colour is orange.

The FOB remotes are available in different colours. Add the colour code to the end of the part

number to order a different colour. No colour code in the part number is the standard orange.

RED = Red Rose             BLU = Blue Sky           BLK = Black Pearl            xxx = Wild Orange

Features

• One channel receiver pre-wired with relay output
• 12-way dipswitch coding or one of over 17 billion encrypted codes.
• Supply voltage can be AC or DC
• compatible with PentaFOB and PentaCode remotes
• Unlimited remotes can be programmed to the receiver
• Highly sensitive receiver input stage
• Crystal controlled for high reliability
• Modes include Momentary and Latching
• Easy mounting to cases or walls

Description

PentaFOB^® Series

The Next Generation of Wireless Key Fob Remote Controls, Superior to Rolling Code Remotes

The PentaFOB^® is a 433MHz wireless remote control and is also available with proximity RFID. This dual technology, 433MHz remote control + RFID allows the remote controls to be used as everyday remotes for automatic gates & doors, switching lights, garage doors, panic buttons or any other “ON” “OFF” applications and the RFID for access control. Simply swipe the PentaFOB^® remote instead of the tags or access cards.

The PentaCode dual coding system gives the installer the option to use the classic 12-way dipswitch coding or one of over 17 billion codes.

With the 12-way dipswitch, just match the keyring remotes and the receiver’s dipswitch and it’s coded. With the encrypted code you switch all the 12-way dipswitches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.

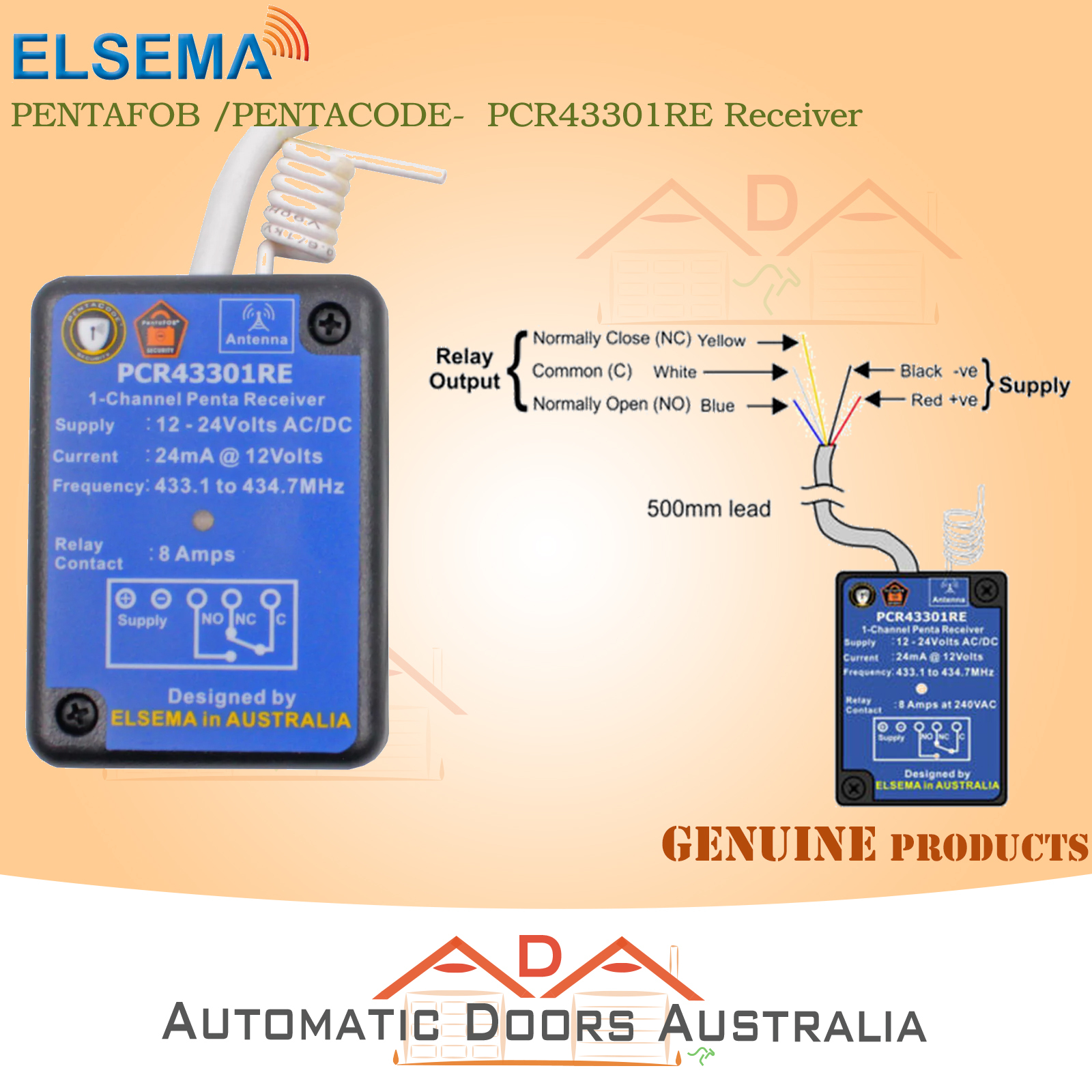

Receiver Technical Data

• Supply Voltage: 11.0 -28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000 or 24PP
• Current Consumption: 21mA Standby
• Operating Frequency: 433.100 to 434.700 MHz
• Sensitivity: Better than 0.316uV (-117dBm) for relay output to switch on.
• Relay Output: One changeover relay output, rated at 10 Amps / 240VAC
• Antenna: Elsema ANT 433MHz Series
• Dimensions: 70 x 55 x 25mm
• Useable Transmitters: All Elsema type PCK433 & FOB433 Series
