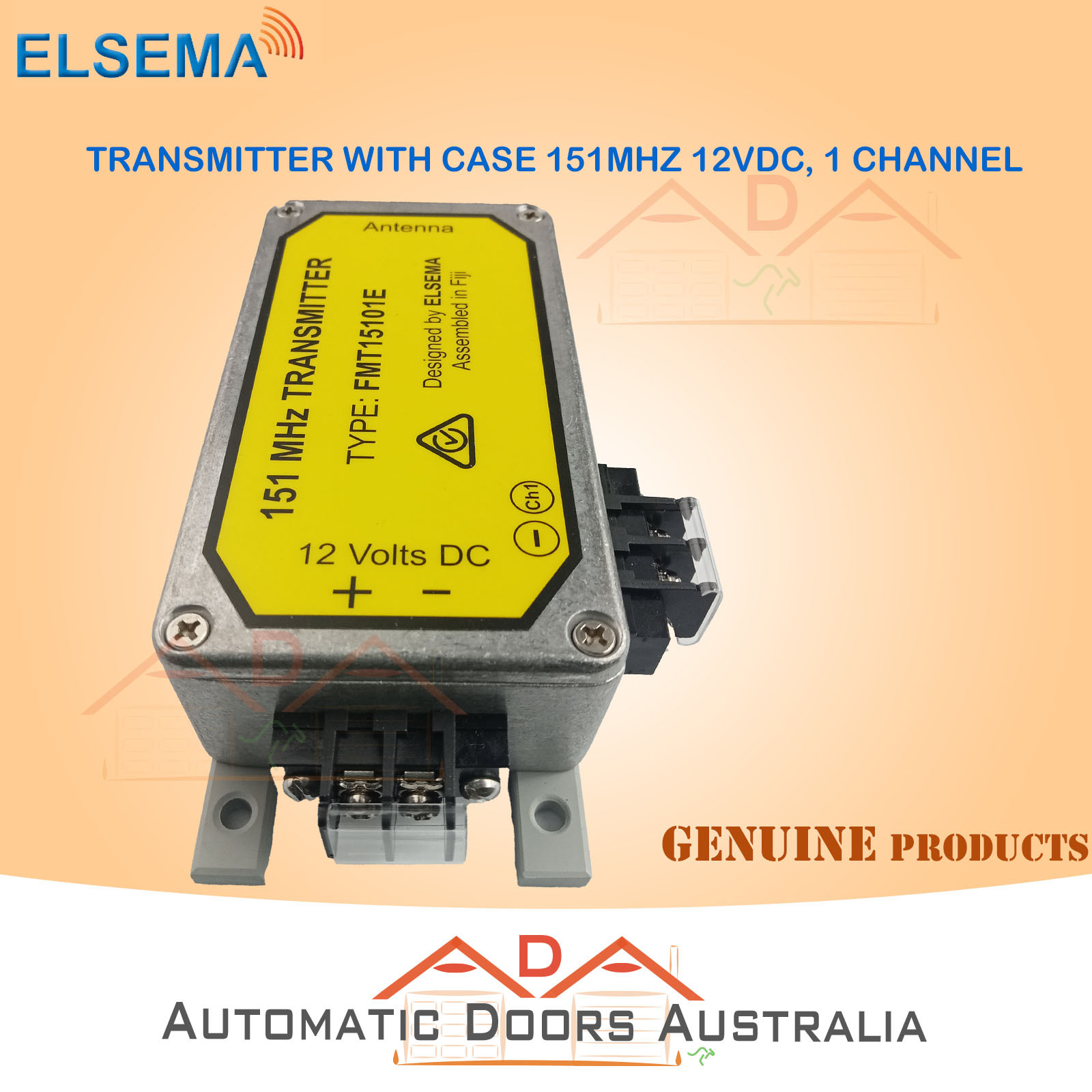

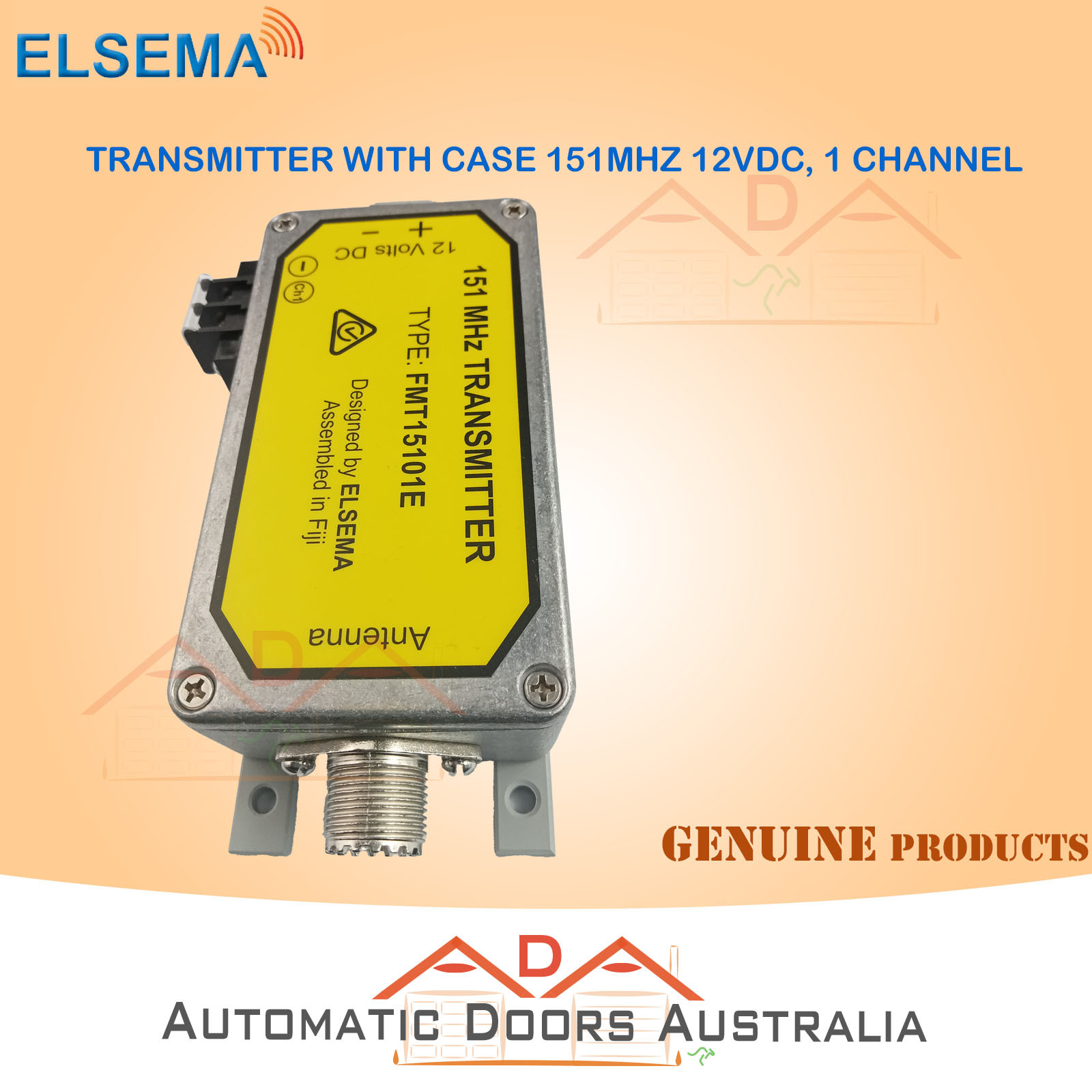

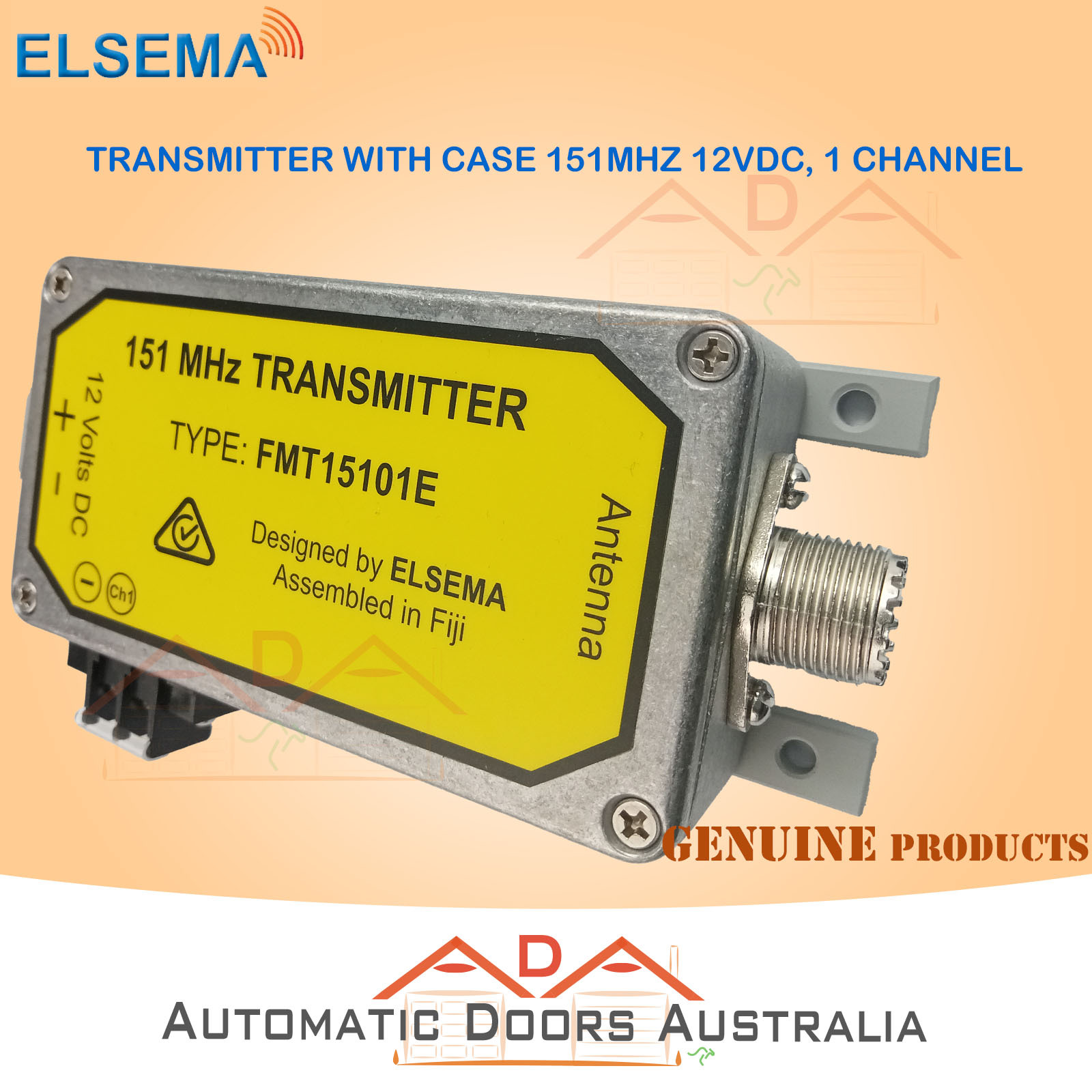

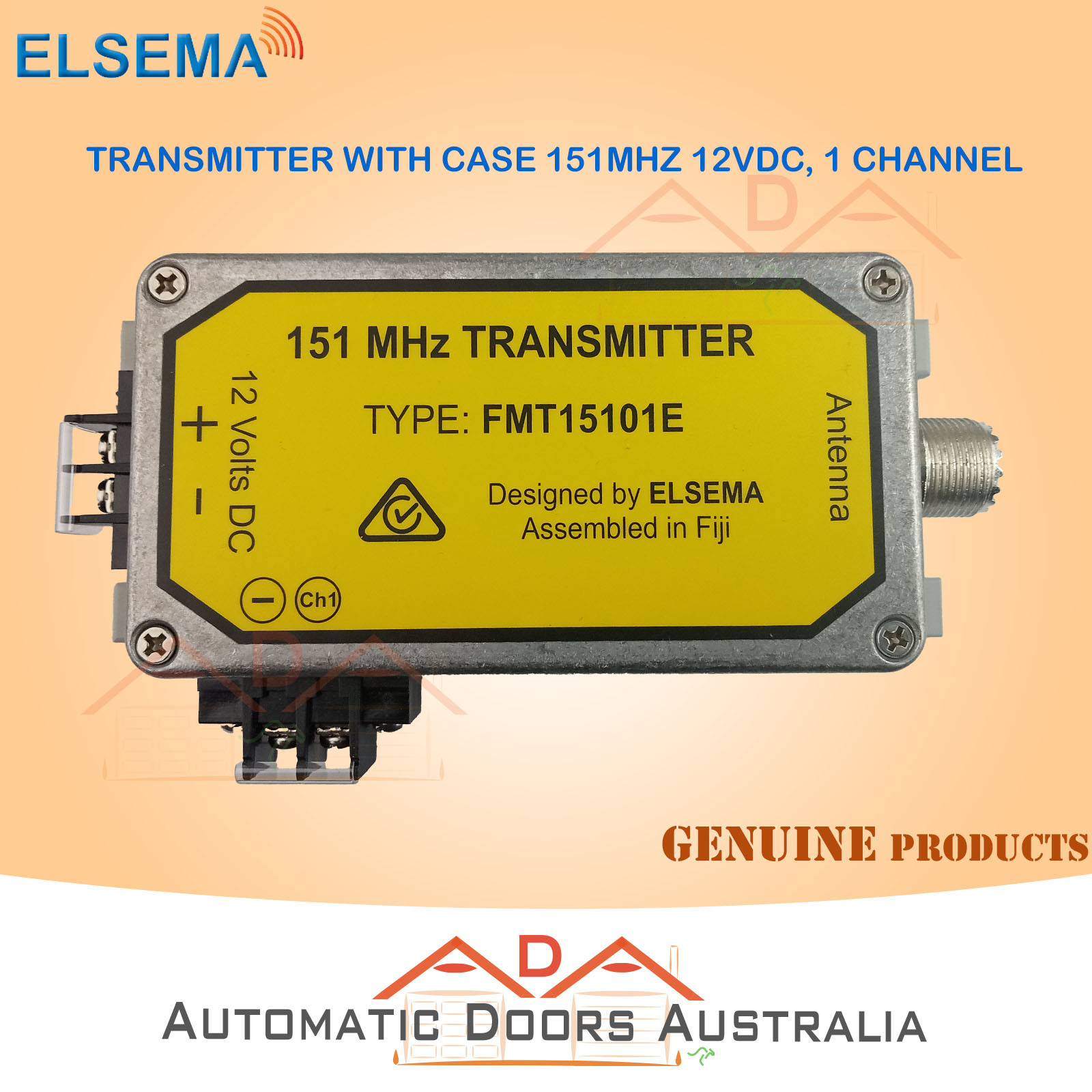

ELSEMA _FMT15101E_TRANSMITTER WITH CASE 151MHZ 12VDC, 1 CHANNEL
FMT15101E_Long Range Wireless Transmitter
ELSEMA _FMT15101E_TRANSMITTER WITH CASE 151MHZ 12VDC, 1 CHANNEL
Free Standard Delivery Australia-wide only
Incudes
- FMT15101E _ TRANSMITTER
- Programming Instructions
Warranty - 02 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)
Description
Long Range Wireless Transmitter for Switching Applications
The FMT series 151MHz transmitter represents a cutting-edge solution in long-range communication, designed to operate within the 151MHz frequency band. These Long range wireless transmitter series is engineered for those requiring reliable, high-quality transmission over vast distances, making it an ideal choice for a broad spectrum of applications, including but not limited to, remote control operations, water pump control, irrigation control, industrial monitoring, sports field lighting . It gives a long range wireless control of up to 5000 metres. The controlled operation can be any electronic or electrical operated device when used with the FMR151… series of receivers.
The channels are activated via screw type terminals onto which the user can connect reed switches, toggle switches, push buttons or any form of normally open (NO) contact.
Features
- Available with 1, and 8 channel inputs
- Built in LED indicates transmission
- User selectable up to 8 different frequencies
- Useable Operating Range: Up to 5000 metres, depending on installation and type of antenna used.
Compatible Receivers: Elsema type FMR151… series - Selectable transmission modes, off delay, continuous and one burst
- Not affected by natural or man-made electrical interference
- Export Models also available for USA/Canada & New Zealand
- Technical data click here
Specifications
| Power Supply | 11 to 13.6 VDC (for constant RF-Output) , screw type terminal
Absolute maximum 14VDC |
|
| Current Consumption | Nominal 85mA at 12VDC supply (Transmitting) Nominal 12mA on standby (10uA on sleep mode, all inputs off) | |
| Operating Frequency | 151.6MHz (8 selectable frequencies) | |
| Operating Temperature Range | 0 – 50°C | |
| Type of Emission | Narrow-band-width Frequency Modulation | |
| R.F. Output Power | 100mW, into 50 ohms SO239 socket | |
| Baud Rate | 40 to 4800bps | |
| Digital Coding System On-board | 12-way Code Switch | |
| Antenna | SO239 socket is provided | |
| Dimension | 90 X 56 X 15 mm
(PCB Assembly) |
140 X 60 X 34 mm
(Enclosed). |
| Mounting Hole Size | 4.00 mm or 5/32 ” (PCB Assembly) | 4.76 mm or 3/16″ |
| Mounting Hole Spacing | Length 76 mm (3.00″) Width 45 mm (1.77″) (PCB Assembly) | Length 125 mm (4.92″) Width 45 mm (1.77″) (Enclosed). |
| Weight | 85 grams (PCB Assembly) | 225 grams (Enclosed). |
| Useable Operating Range | Up to 5000 meters, depending on installation and type of antenna used. Recommended Antenna is Elsema ANT151M | |
(FMT_15101E)
| SKU | FMT_15101E |
| Brand | ELSEMA |
| Shipping Weight | 0.2200kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.040m |
| Shipping Length | 0.060m |
| Shipping Cubic | 0.000360000m3 |
