CENTURION UNIVERSAL PANEL LIFT HINGE 1 & 2

Older Centurion doors , this hinge has three hole centers to accommodate the roller shaft giving it the versatility to be used between various panels so that modified hing has two holes to determine which raw need to be chaged.


Free Standard Delivery Australia-wide only

1 X Centurion Hinge 1  & 2

Warranty -  6 Months - manufacturer's warranty

Descriptions

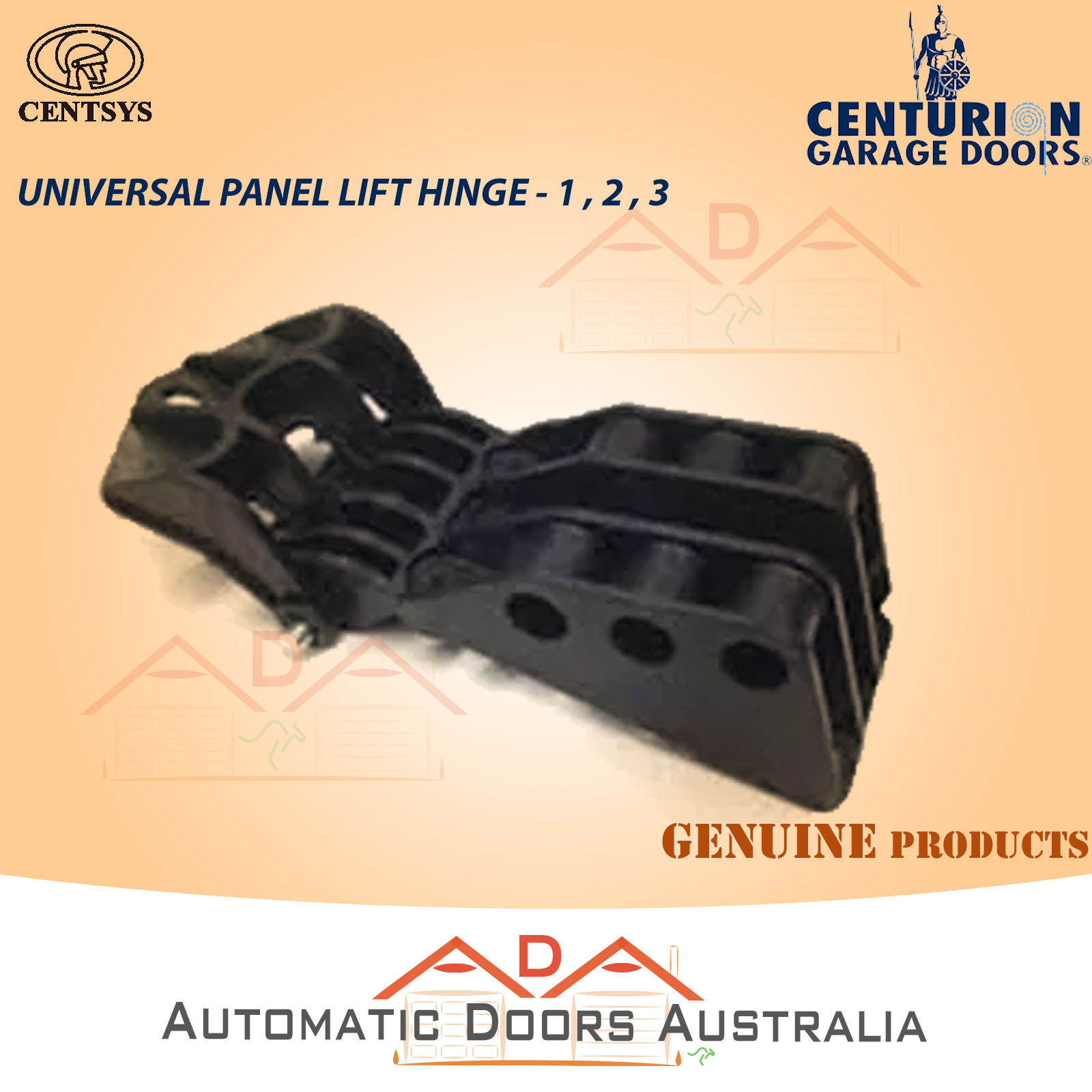

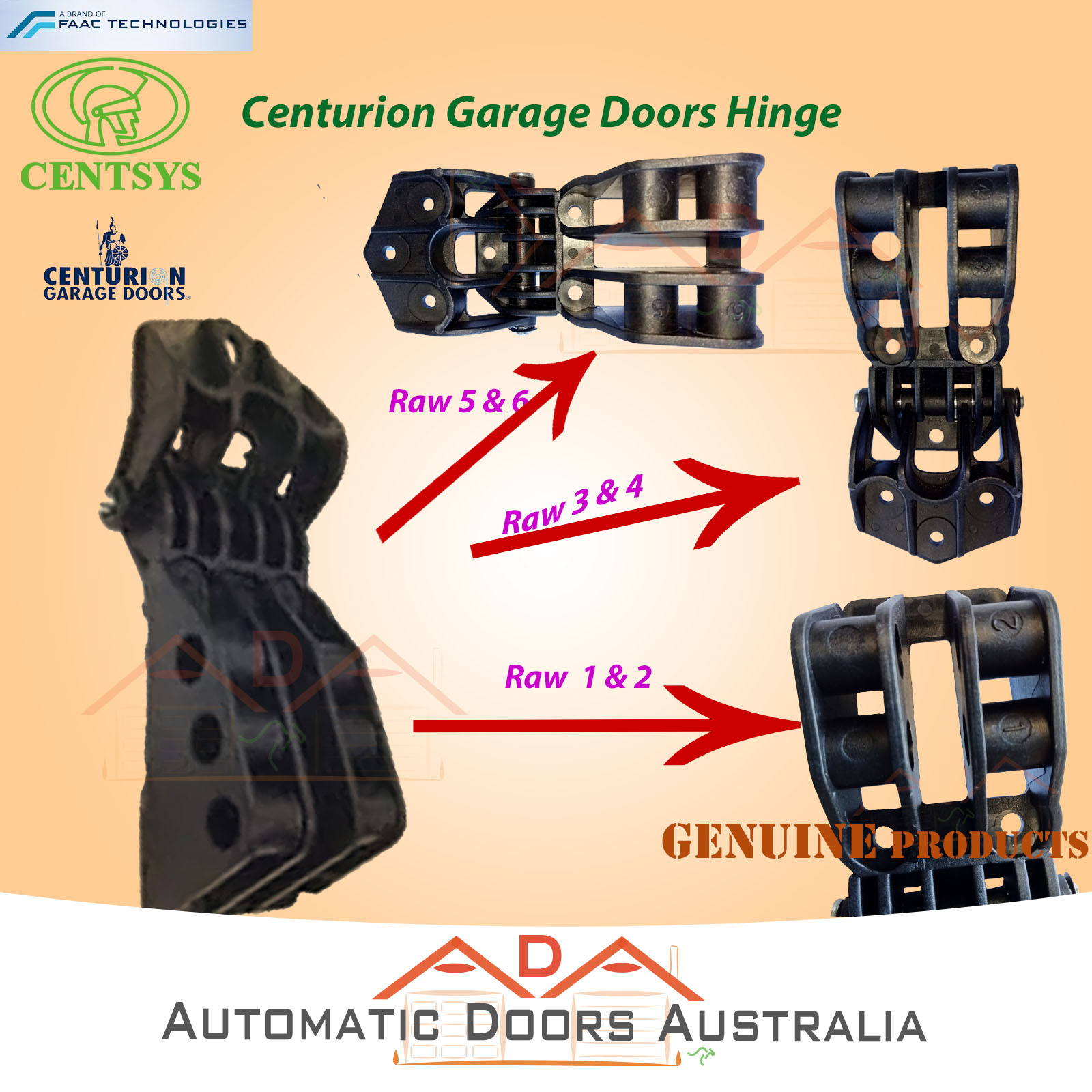

Centurion universal sectional garage door plastic hinge. Original Hinges, As per pic this hinge can be used for either a number 1 , 2 , 3 by using the 3 hole options for the roller to be fitted in. When taking off old broken hinge best to copy exact same hole setup to ensure no changes in operation of the door.Use hole 1 between the bottom and second panel, hole 2 between the second and third panel or hole 3 between the third and fourth panel. so that make sure to oder correct hing from the modified version ..

NEW Hing  DIMS

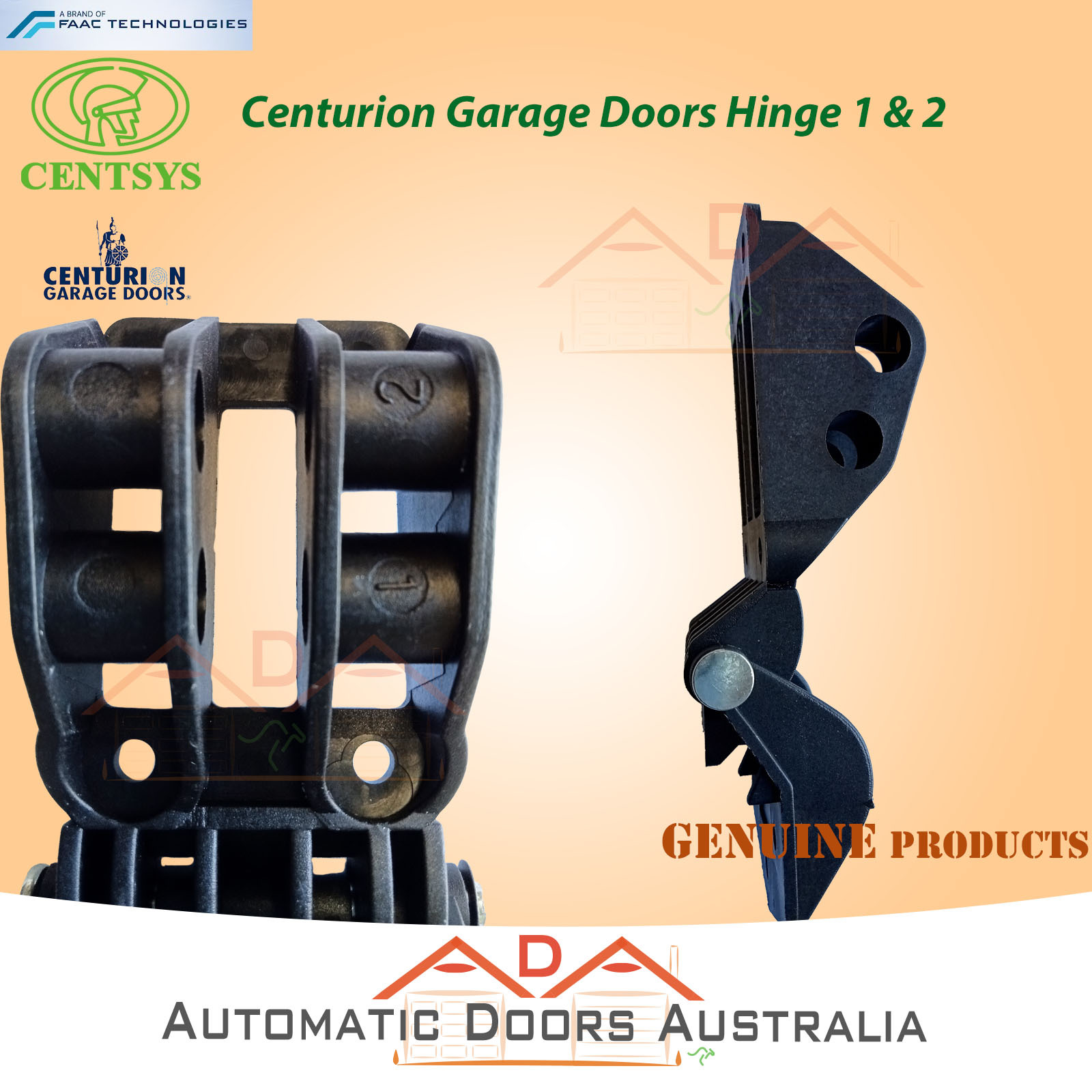

Centurion Hing 1 & 2 L 145mm X W 68mm X H 35mm

Centurion Hing  3 & 4 L 145mm X W 68mm X H 47mm

Centurion Hing   5 & 6 L 145mm X W 68mm X H 62mm


(Centurion_Hinge1-3)

SKU Centurion_Hinge1-3
Brand Centurion Garage Doors
Shipping Weight 0.0930kg
Shipping Width 0.165m
Shipping Height 0.060m
Shipping Length 0.145m
Shipping Cubic 0.001435500m3
