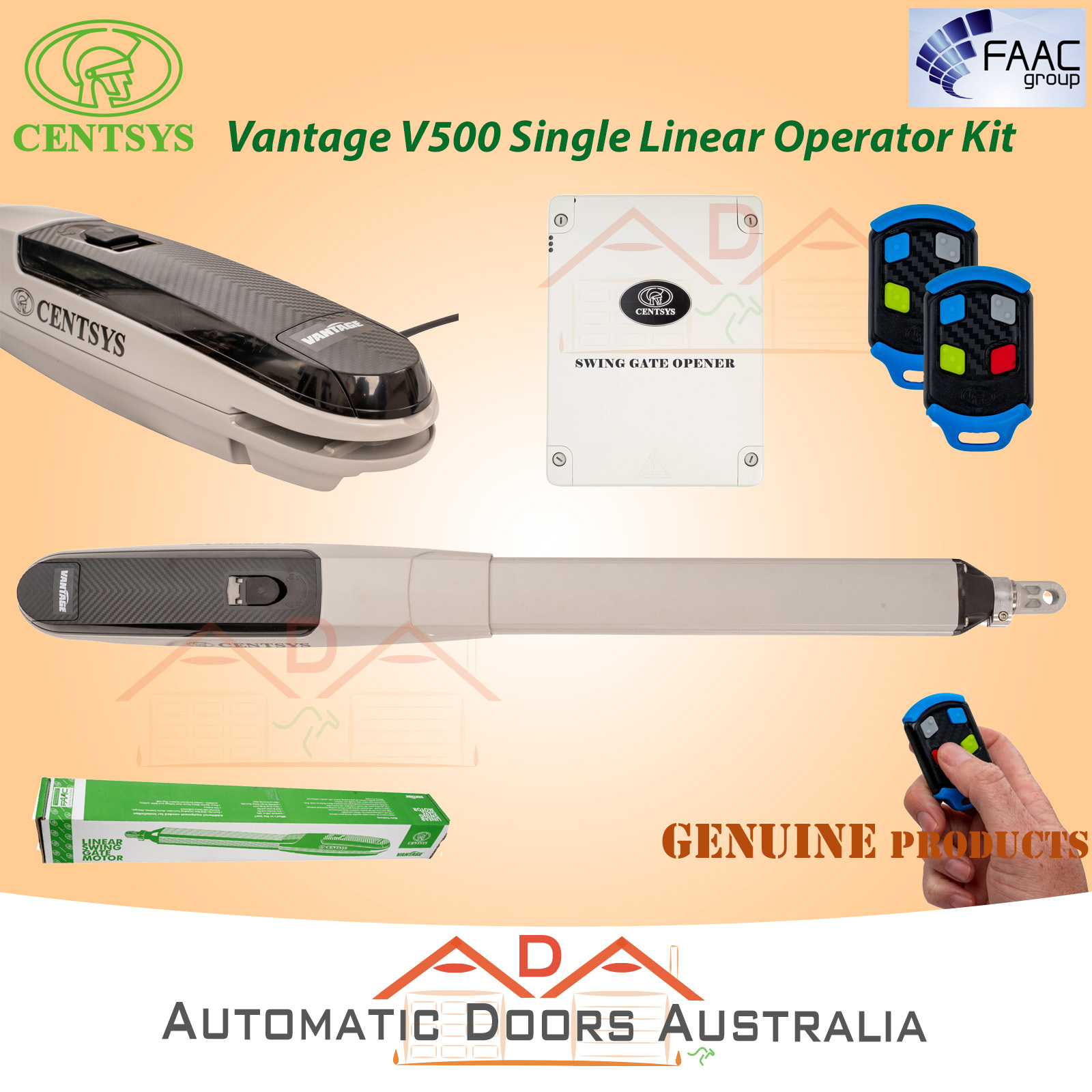

CENTSYS_Vantage V500 Single Linear Operator 240V Mains Supply Kit

Free Standard Delivery Australia-wide only

Incudes

Warranty -  02 year manufacturer's warranty

Description

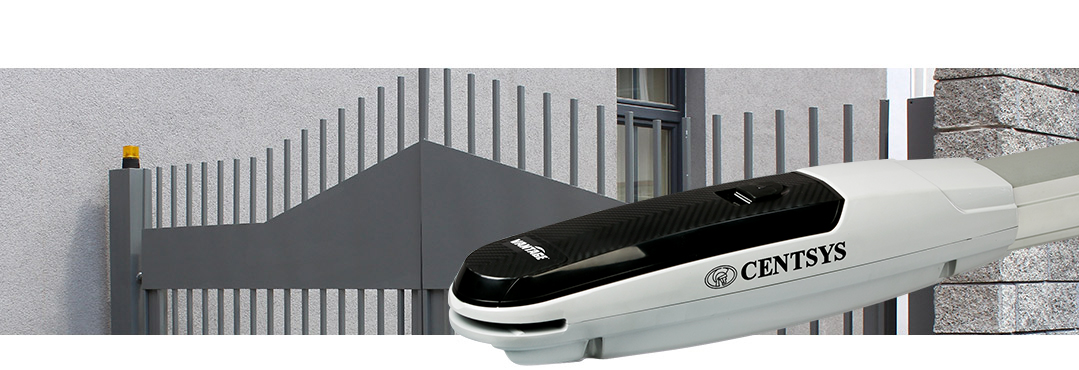

V400 & V500 – SWING GATE MOTOR

Sleek, stylish, secure and strong: these are some of the words that describe the V-Series linear swing gate motor for domestic and industrial gates. V-Series gate automation comes standard with battery backup offers a quick and easy (not to mention good looking) installation. It is an exceptionally strong set of operators for gates up to 4m wide, per leaf (consult specifications for further details). Boasting tough-as-nails die-cast aluminium construction throughout, a grade 304 stainless steel wormshaft for the ultimate in reliability and durability and with sophisticated electronics for smooth, safe operation, V400 and V500 gives you everything you need to swing the future your way.



Compatibility

The Centsys Vantage 400 suits gates up to 4m wide and up to 300kg in weight.

Features

When you’re looking for a sliding gate opener, you want more than just a button to open the gate. You want the security benefit of securing your yard and driveway and the expectation of the motor to be reliable. Coming from the ever-security conscious South Africa, the Centsys Vantage V400 Dual has proven time and time again that’s it’s secure, it’s reliable and ready to open your gate each and every time.

The Centsys Vantage V400 Dual suits gates up to 4m wide and up to 500kg in weight. With an average opening time of just 12 seconds (based on a 4m gate) the gate will be open in time for you to drive out without waiting for it. The D5 EVO also has obstruction detection, to help prevent accidental damage to your family or possessions. Live in a blackout or bushfire prone area? The included battery backup will still open and close the Centsys D5-EVO, to help you get out when you need to most. Plus, the unit is suitable for high cycle applications with a rated 50+ openings per hour!

Wanting to use the Vantage V400 on a secure property? Not only does the Centsys Vantage V400 Dual detect when it’s about to hit something and automatically stop, you can also wire the gate motor to alert your security company if someone slips in when it’s closing. It has every feature you’ll need in a gate opener and then possibly even more!

  • Exceptionally easy system setup via LCD user interface.

  • Supports inward- and outward-opening gates without needing mechanical endstops.

  • High push force.

  • Full position control.

  • Fast operating speed, with smooth acceleration and deceleration.

  • Safe anti-crushing protection.

  • Multiple operating features including Intruder-detection Alarm Modes (a world first).

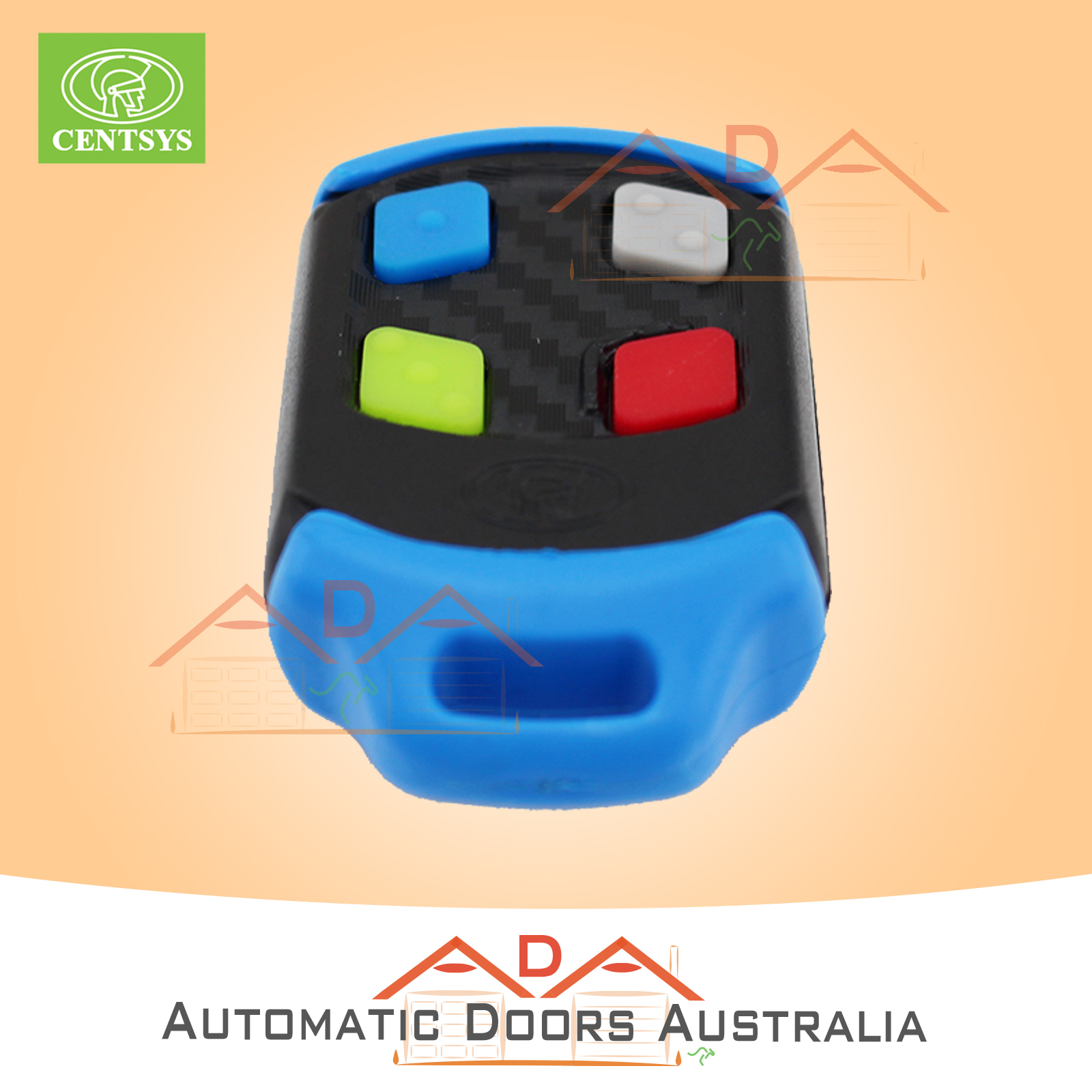

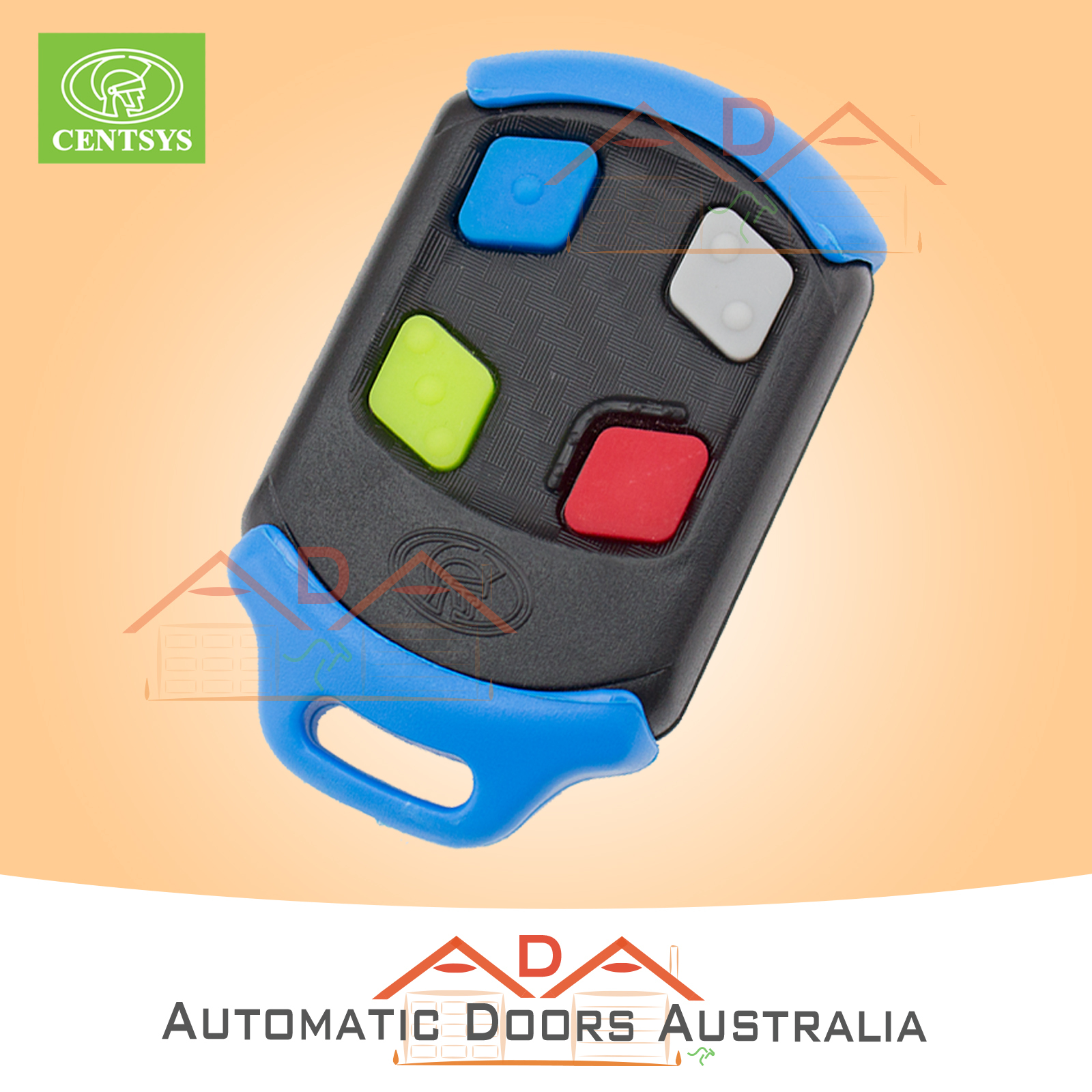

  • Onboard CENTSYS code-hopping multichannel receiver with selective add and delete.

  • Battery backup for uninterrupted operation during power failures.

MODELS:

  • V400 – Reliable operator with a shorter stroke for the majority of domestic swing gate applications.

  • V500 – Extended stroke for larger domestic and light-industrial swing gate applications.

 Technical Data

Input Voltage 90v - 240V AC +/- 10%, 50/60Hz 1
Motor Voltage 12V DC
Motor Power Supply Battery-driven 21.8A Charger
Push Force - Max 250kgf
Typical Gate Opening Time V400 (short stroke) 14.3 sec / V500 (long stroke) 17.8 sec (V500)
Duty Cycle - Mains Present 50% 3
Daily Operations - Max 250
Maximum Leaf Width for Corresponding Gate Mass (90° opening) [****] V400 ,2.5m = 500kg <4m = 150kg V500 ,2.5m = 750kg <4m = 230kg
Onboard Receiver Specification CENTURION code-hopping, multichannel, 433MHz, Capacity - 65 transmitter buttons



Specifications

Arm Dimensions 1070mm retracted, 1570mm extended
Model Number V500 Dual
Cycles Per Day 150 Open/Close Per Day
Opening Speed 300-367 mm/second
MHz Frequency FM 433.92
Memory Register 60
Water Protection IP55




V500 Dual Max Allowable Gate Mass Information

Gate Swing Up To Up To Up To Up To Up To Up To
Angle 1.5m 2m 2.5m 3m 3.5m 4m
90°  750Kg  750Kg  750Kg  550Kg  410Kg  310Kg
100°  750Kg  750Kg  600Kg  420Kg  310Kg  230Kg
110°  750Kg  550Kg  320Kg  220Kg



(CENTSYS_V500)

SKU CENTSYS_V500
Brand CENTURION SYSTEMS
Shipping Weight 15.0000kg
Shipping Width 0.165m
Shipping Height 1.200m
Shipping Length 0.160m
Shipping Cubic 0.031680000m3
