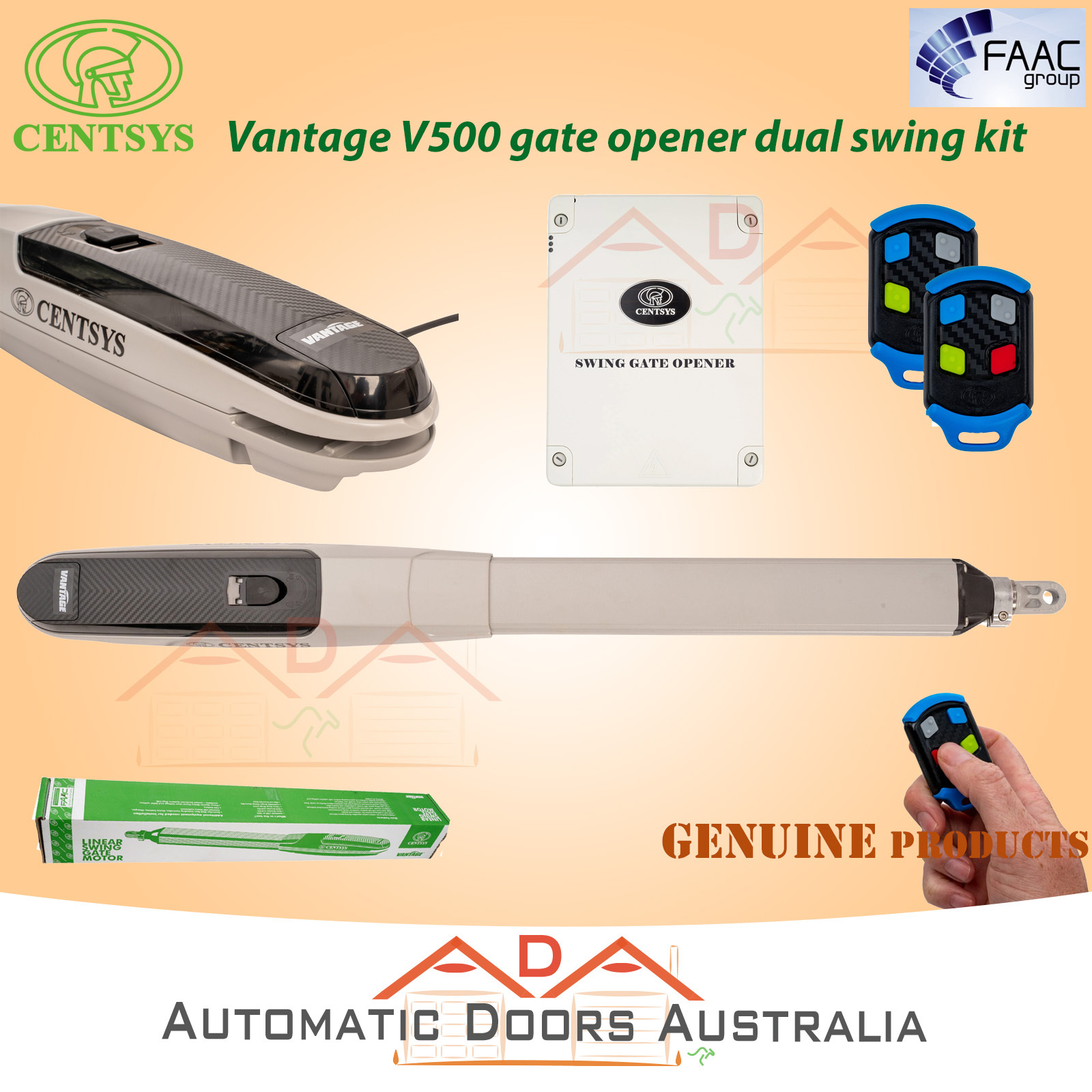

Centsys Vantage V500 gate opener dual swing kit
Vantage V500 dual swing kit
Centsys Vantage V500 gate opener dual swing kit
Free Standard Delivery Australia-wide only

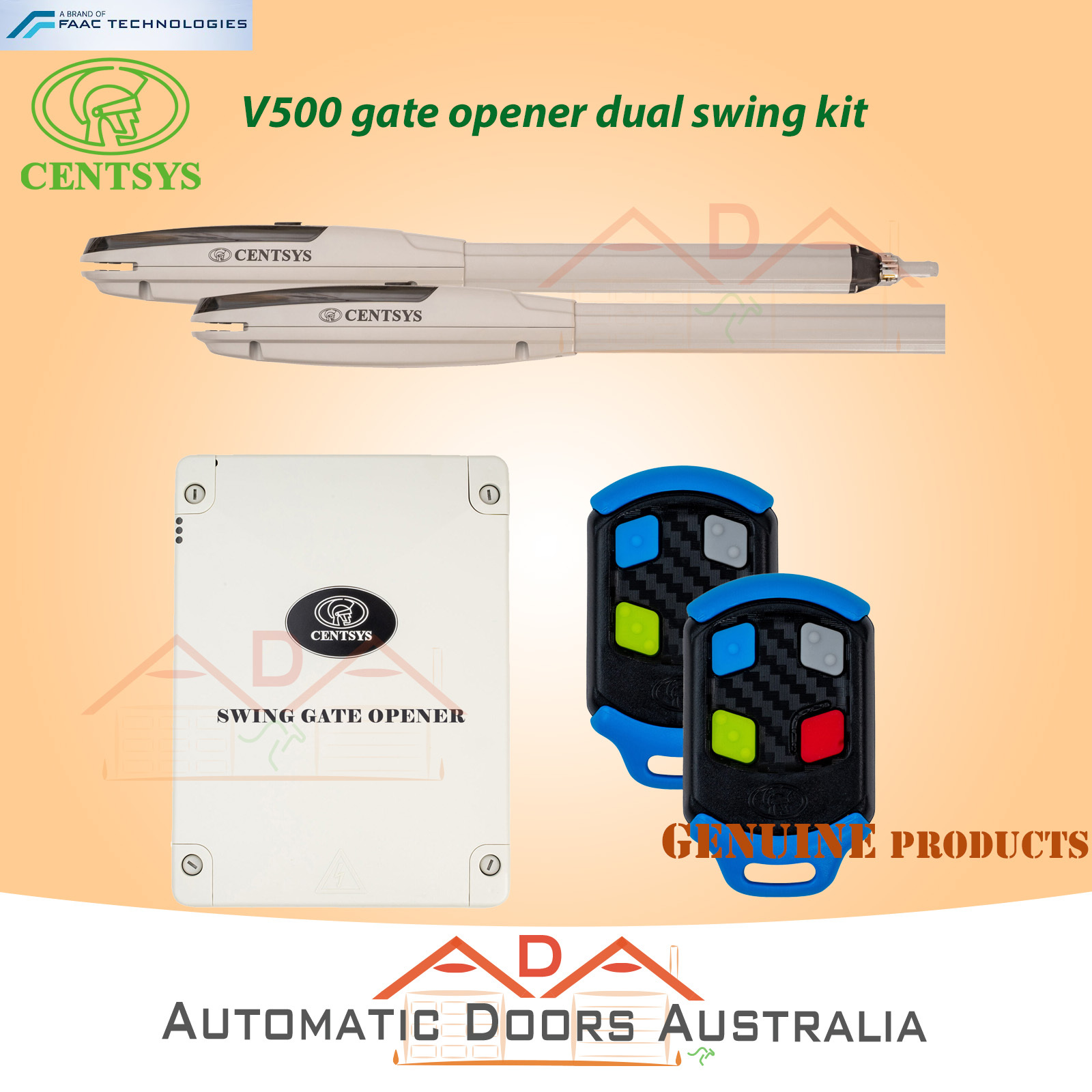

Incudes

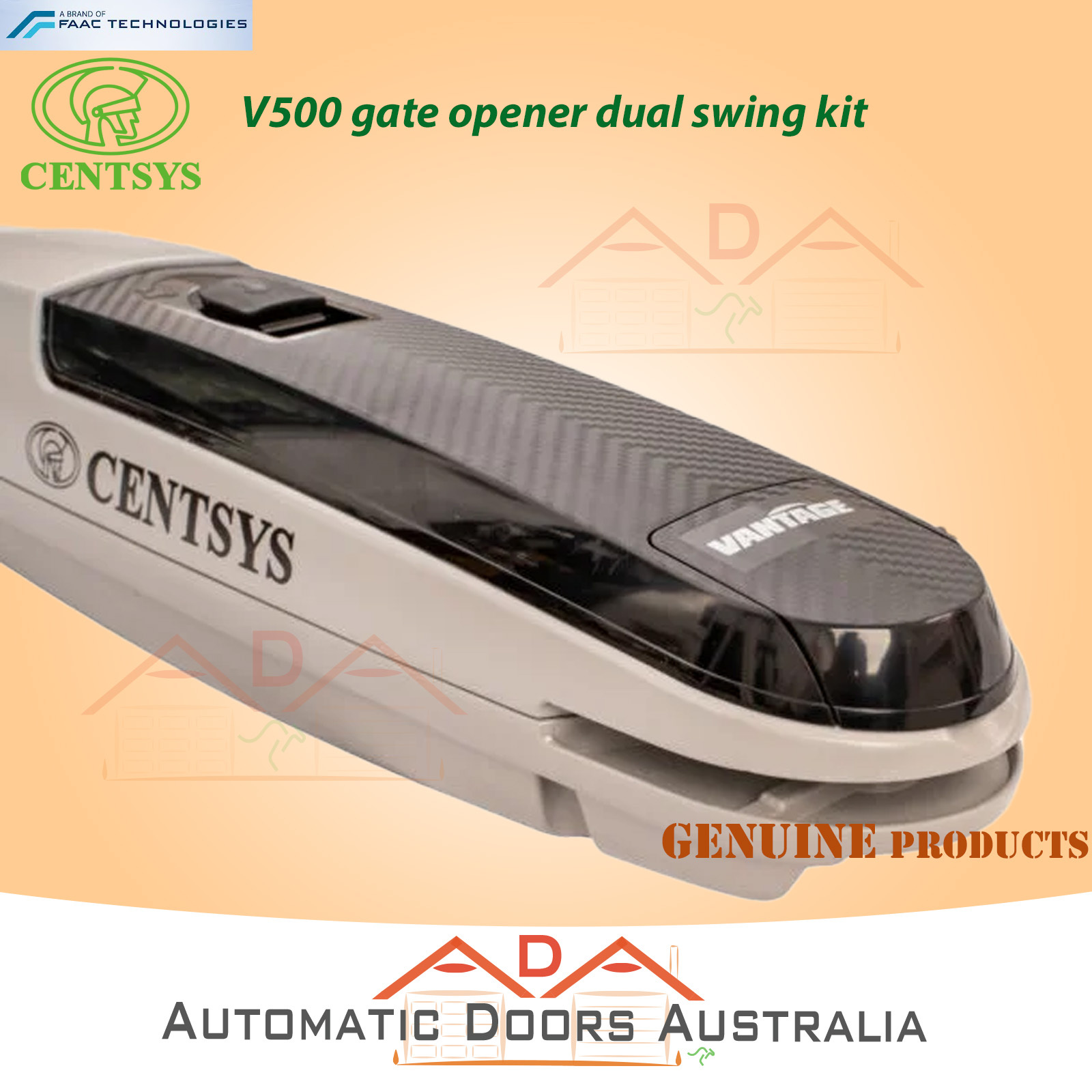

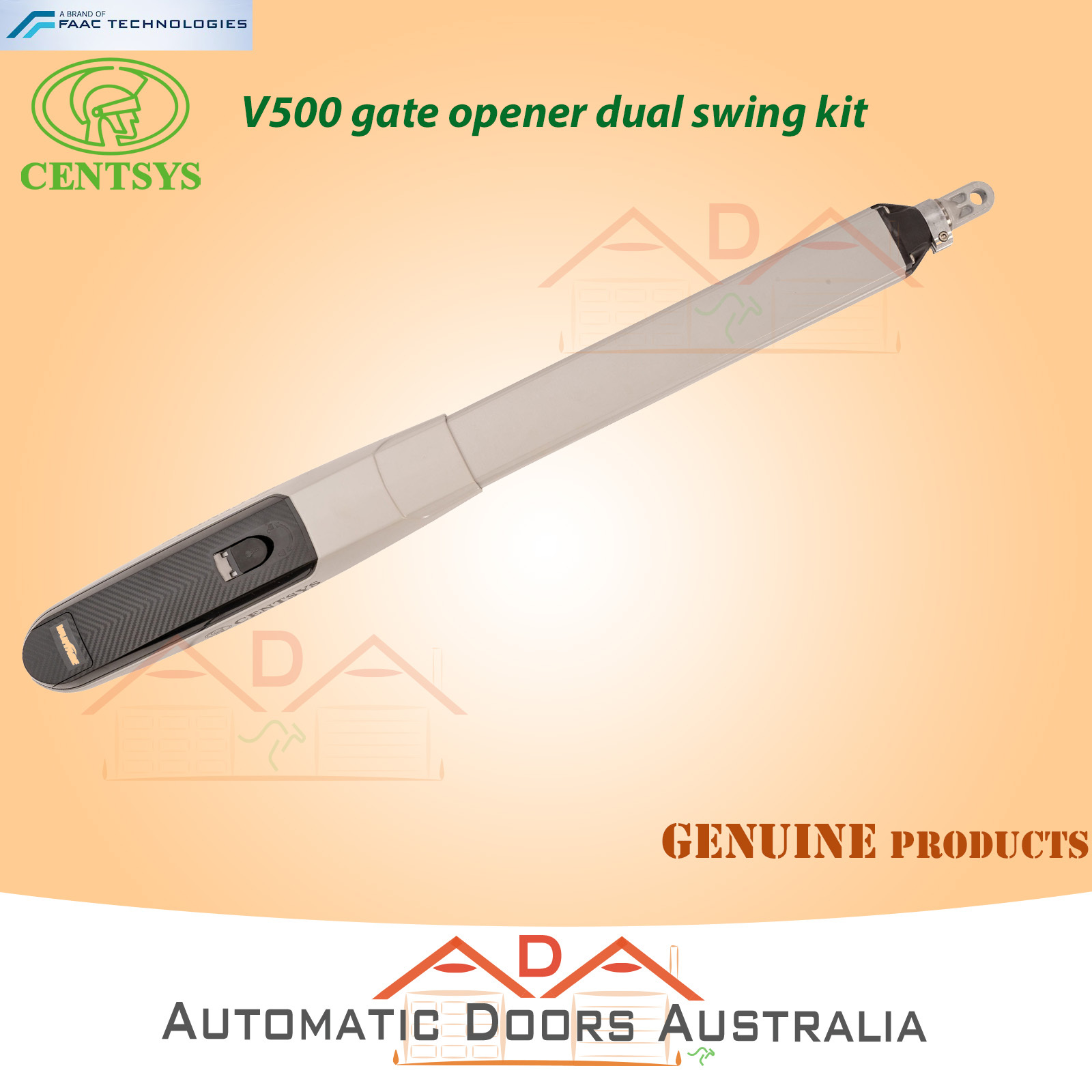

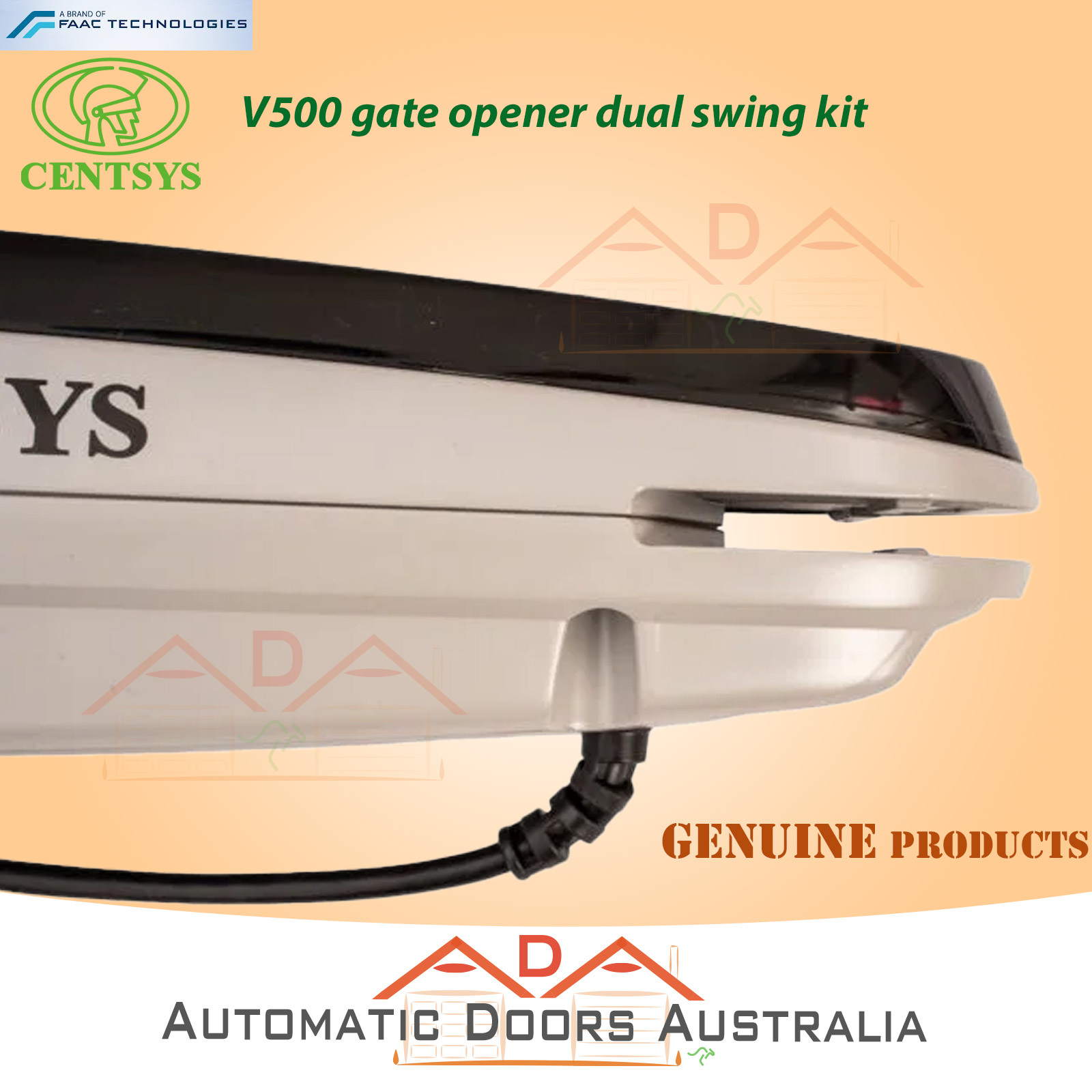

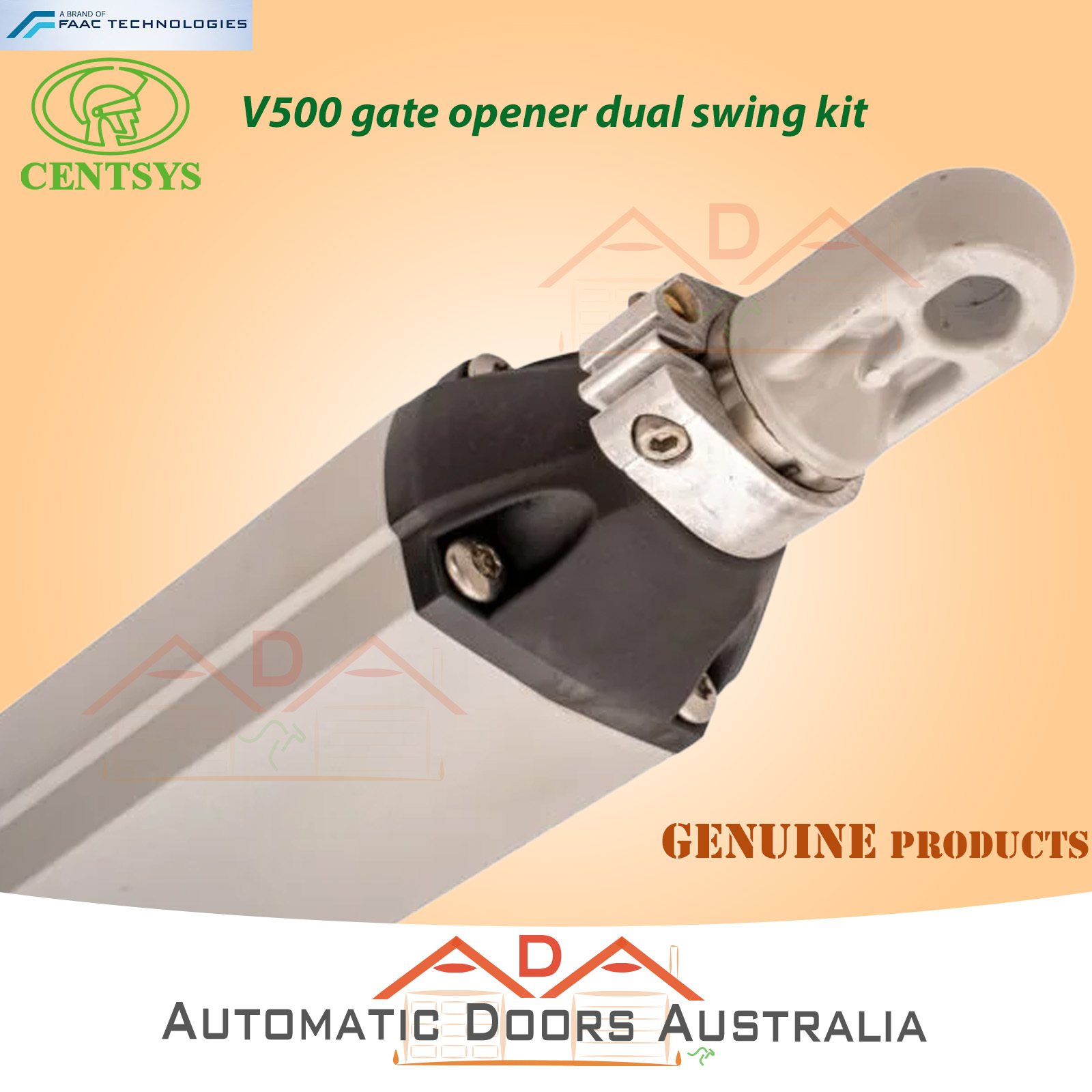

- Centsys Vantage 500 Swing Gate Opener X 2

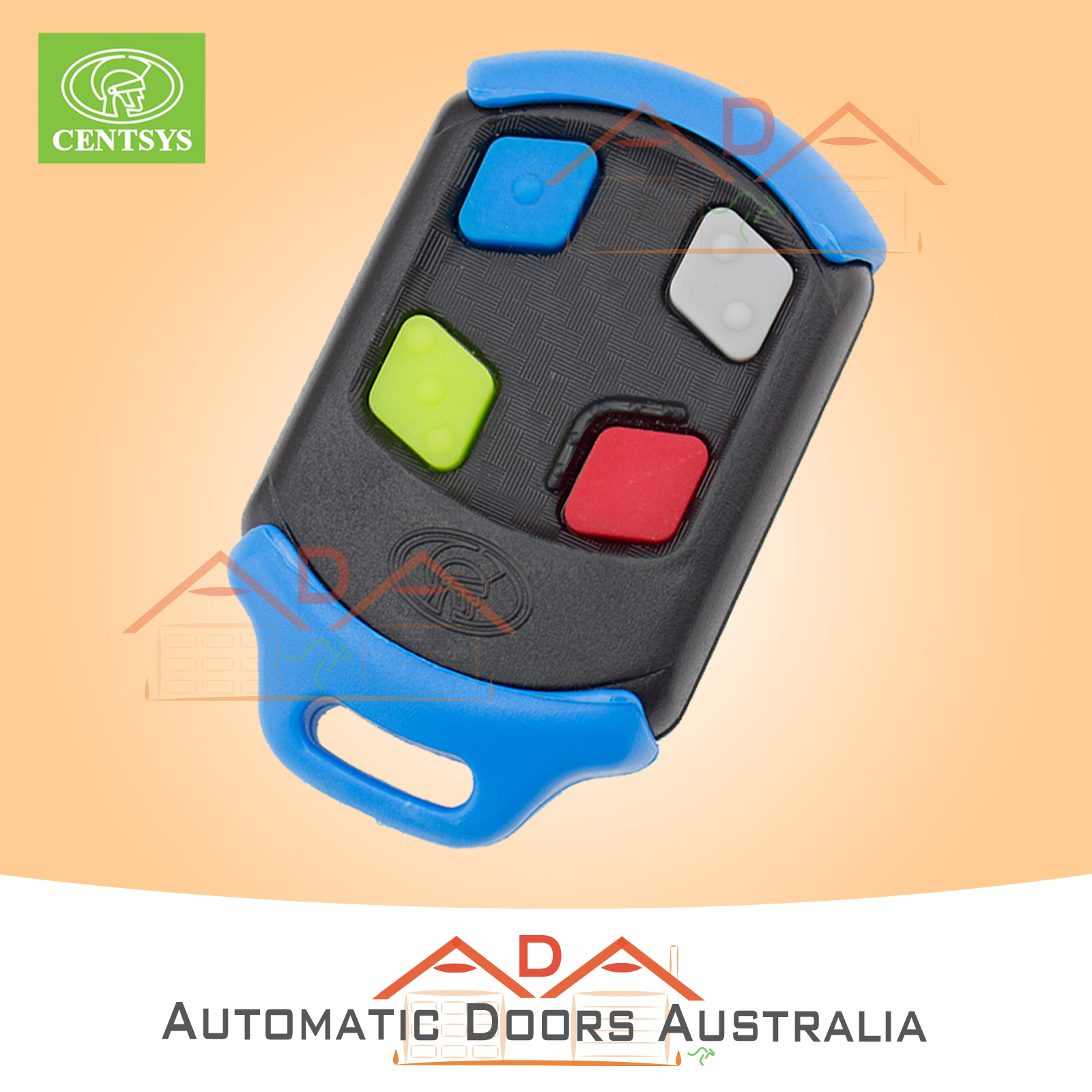

- Centsys Nova Remote Controls X 2
- Centsys V-Series Control Box
- Pair of Manual Over-Ride Keys
- Hardware Mounting Pack
- Battery 12v
Warranty - 02 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)
Centsys Dual Swing Gate Kit Features
When you’re looking for a sliding gate opener, you want more than just a button to open the gate. You want the security benefit of securing your yard and driveway and the expectation of the motor to be reliable. Coming from the ever-security conscious South Africa, the Centsys Vantage V500 Dual has proven time and time again that’s it’s secure, it’s reliable and ready to open your gate each and every time.
The Centsys Vantage V500 Dual suits gates up to 4m wide and up to 500kg in weight. With an average opening time of just 12 seconds (based on a 4m gate) the gate will be open in time for you to drive out without waiting for it. The V500 also has obstruction detection, to help prevent accidental damage to your family or possessions. Live in a blackout or bushfire prone area? The included battery backup will still open and close the Centsys V500, to help you get out when you need to most. Plus, the unit is suitable for high cycle applications with a rated 50+ openings per hour!
Wanting to use the Centsys Vantage V500 Dual on a secure property? Not only does the Dual Vantage detect when it’s about to hit something and automatically stop, you can also wire the gate motor to alert your security company if someone slips in when it’s closing. It has every feature you’ll need in a gate opener and then possibly even more!
Centsys Vantage V500 Dual Specifications
Arm Dimensions | 1070mm retracted, 1570mm extended |
Model Number | V500 Dual |
Cycles Per Day | 150 Open/Close Per Day |
Opening Speed | 300-367 mm/second |
MHz Frequency | FM 433.92 |
Memory Register | 60 |
Water Protection | IP55 |
Warranty | 2 Year Manufacturer |
Centsys Vantage V500 Dual Max Allowable Gate Mass Information
Gate Swing Angle |
Up To 1.5m |
Up To 2m |
Up To 2.5m |
Up To 3m |
Up To 3.5m |
Up To 4m |
90° | 750Kg | 750Kg | 750Kg | 550Kg | 410Kg | 310Kg |
100° | 750Kg | 750Kg | 600Kg | 420Kg | 310Kg | 230Kg |
110° | 750Kg | 550Kg | 320Kg | 220Kg | ||
120° | 310Kg | 170Kg | 110Kg |
(CENTSYS_V500_DUEL)
SKU | CENTSYS_V500_DUEL |
Brand | CENTSYS |
Shipping Weight | 15.0000kg |
