Centsys Photon INFRARED GATE SAFETY PE BEAMS WITH WIRELESS TECHNOLOGY

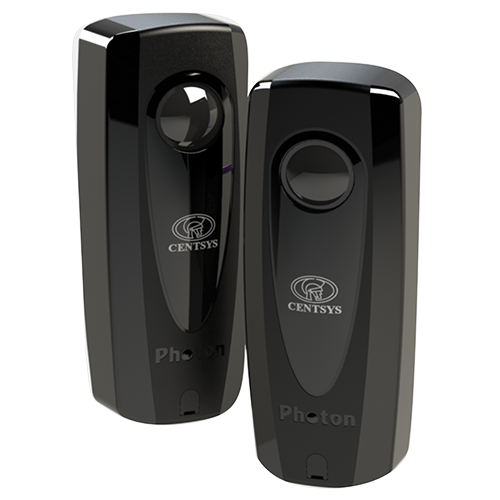

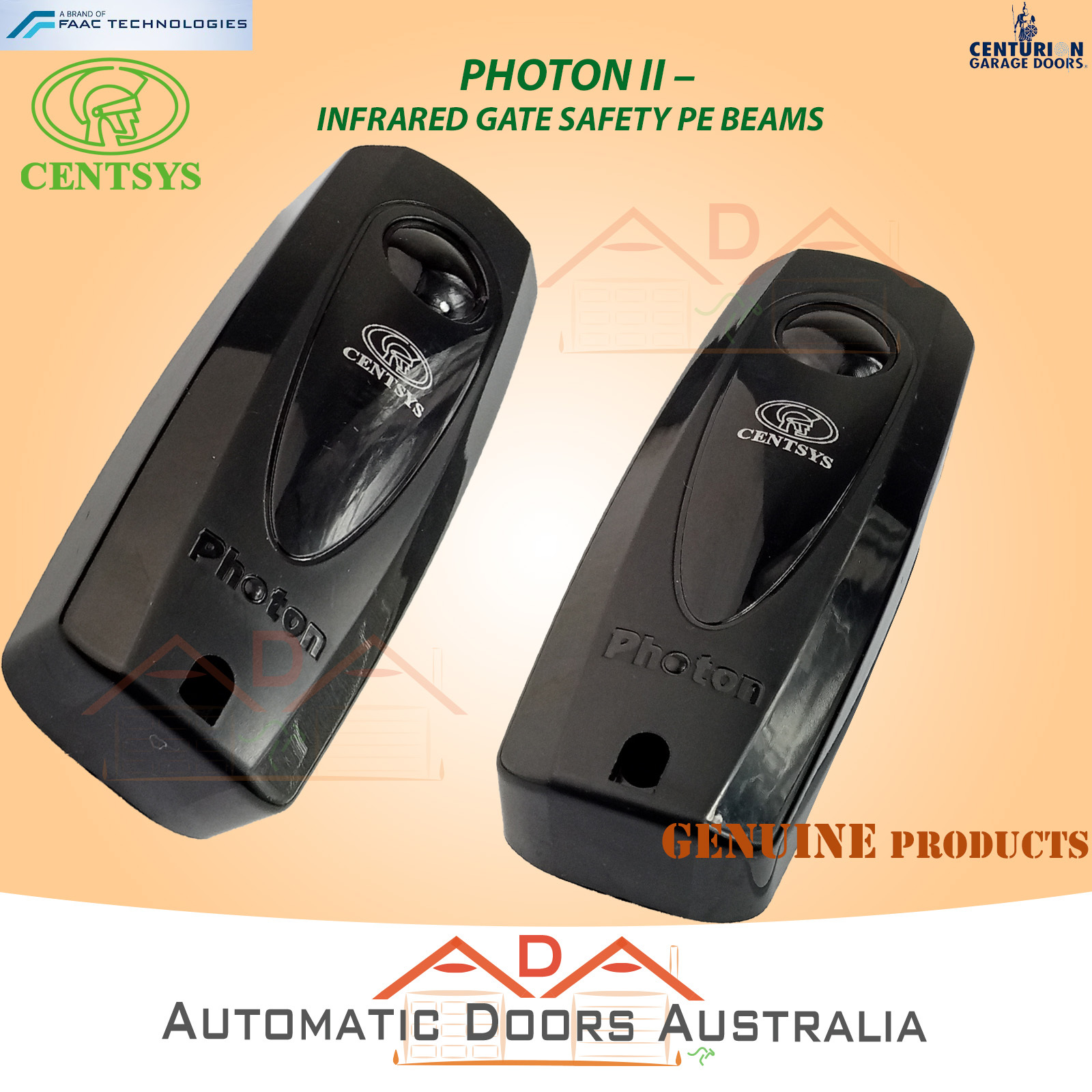

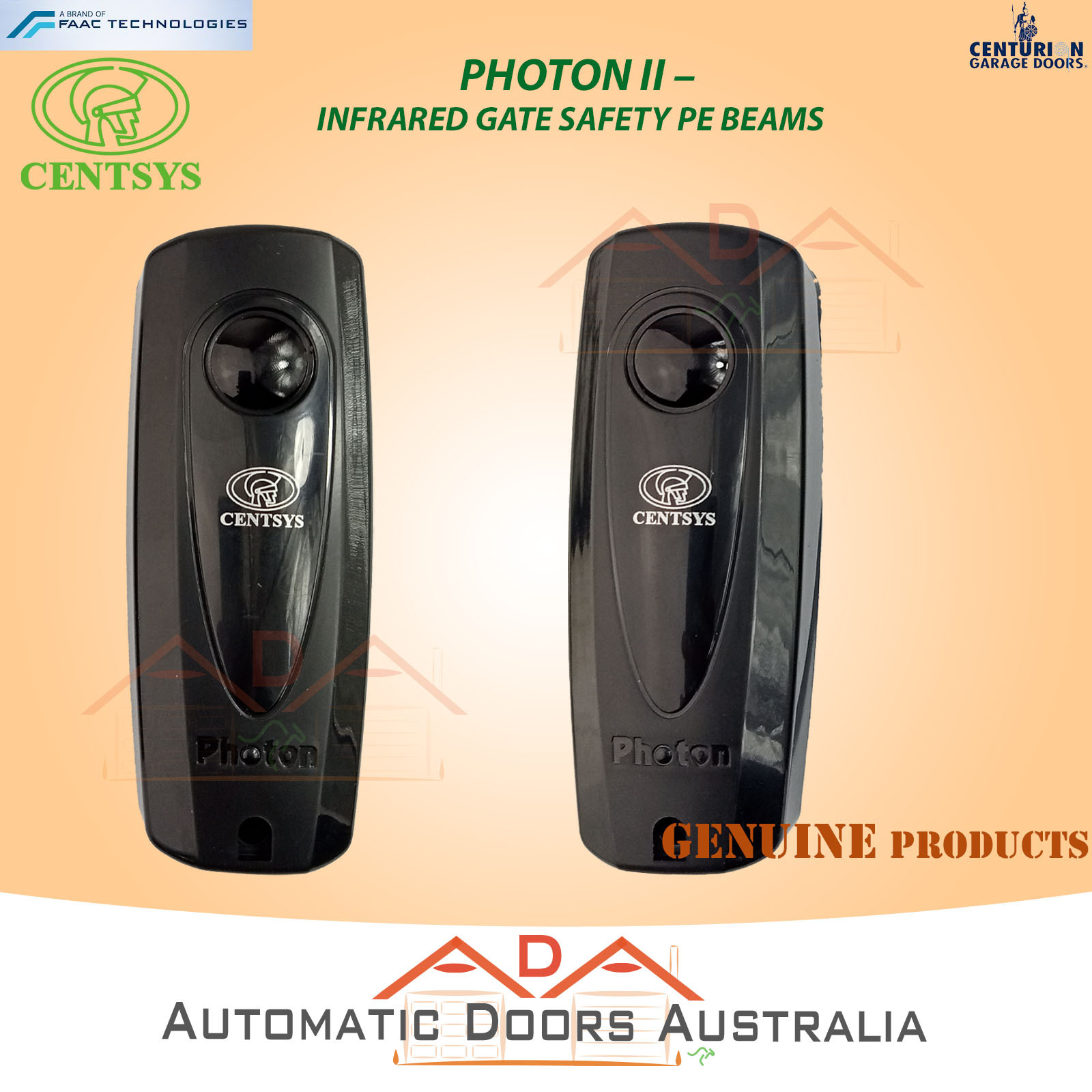

PHOTON II – INFRARED GATE SAFETY PE BEAMS
Centsys Photon INFRARED GATE SAFETY PE BEAMS WITH WIRELESS TECHNOLOGY
Free Standard Delivery Australia-wide only

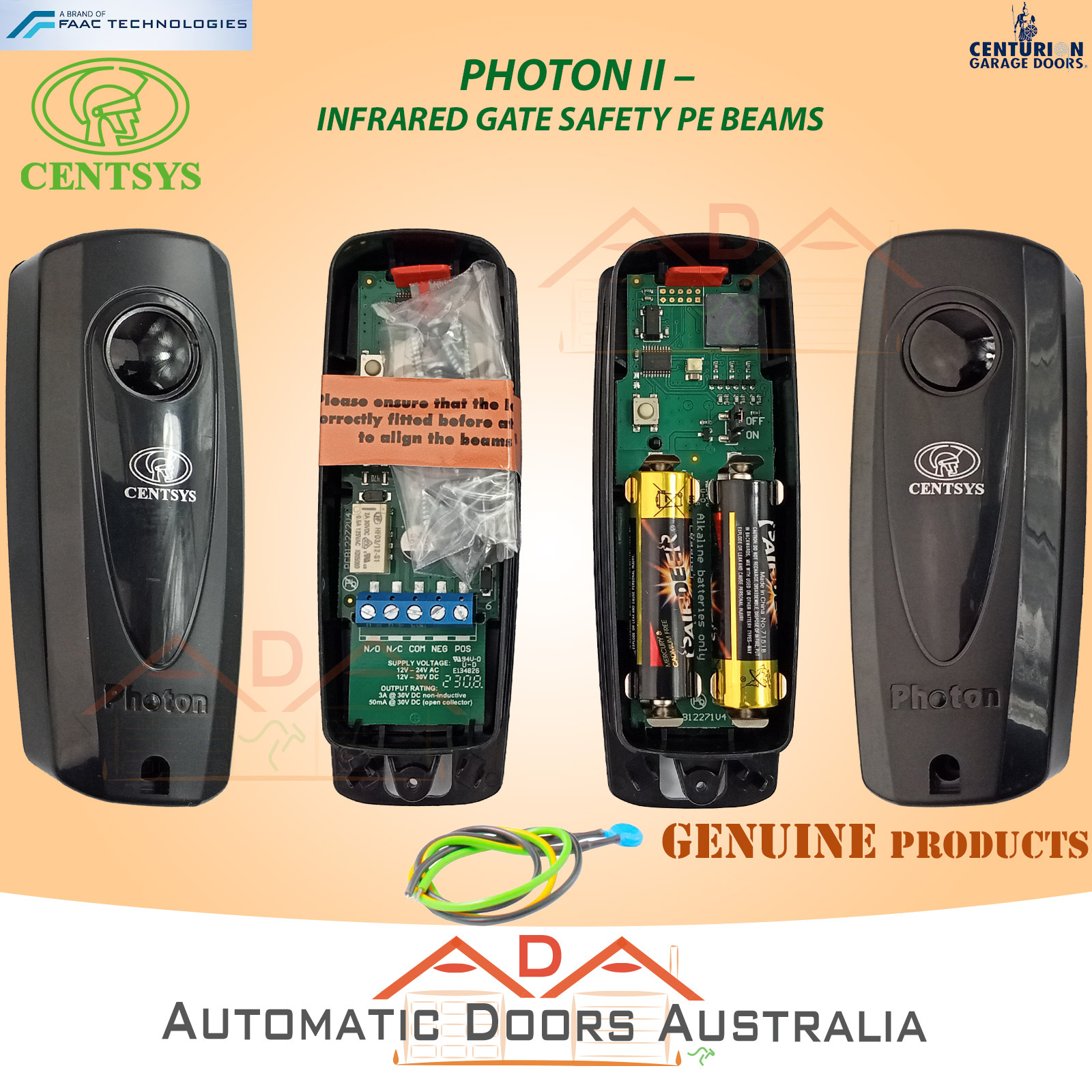

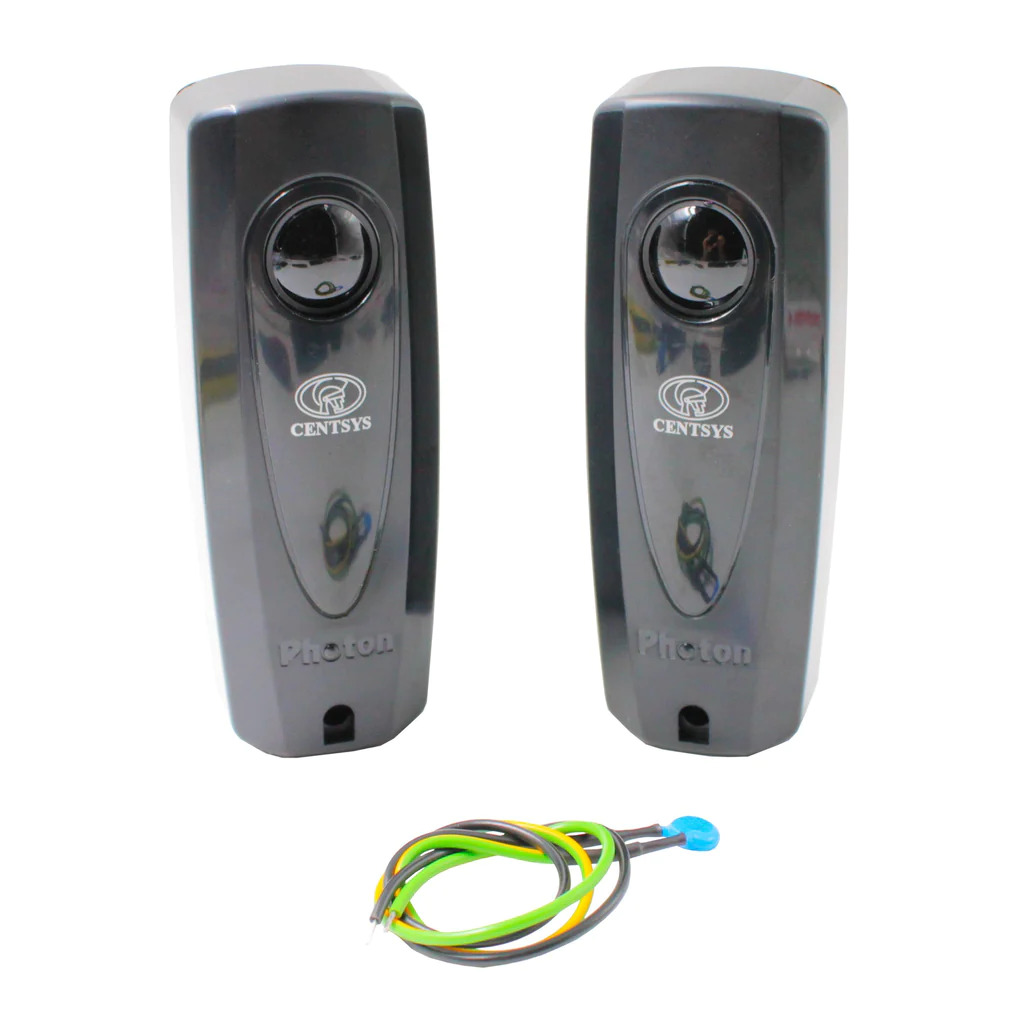

Incudes

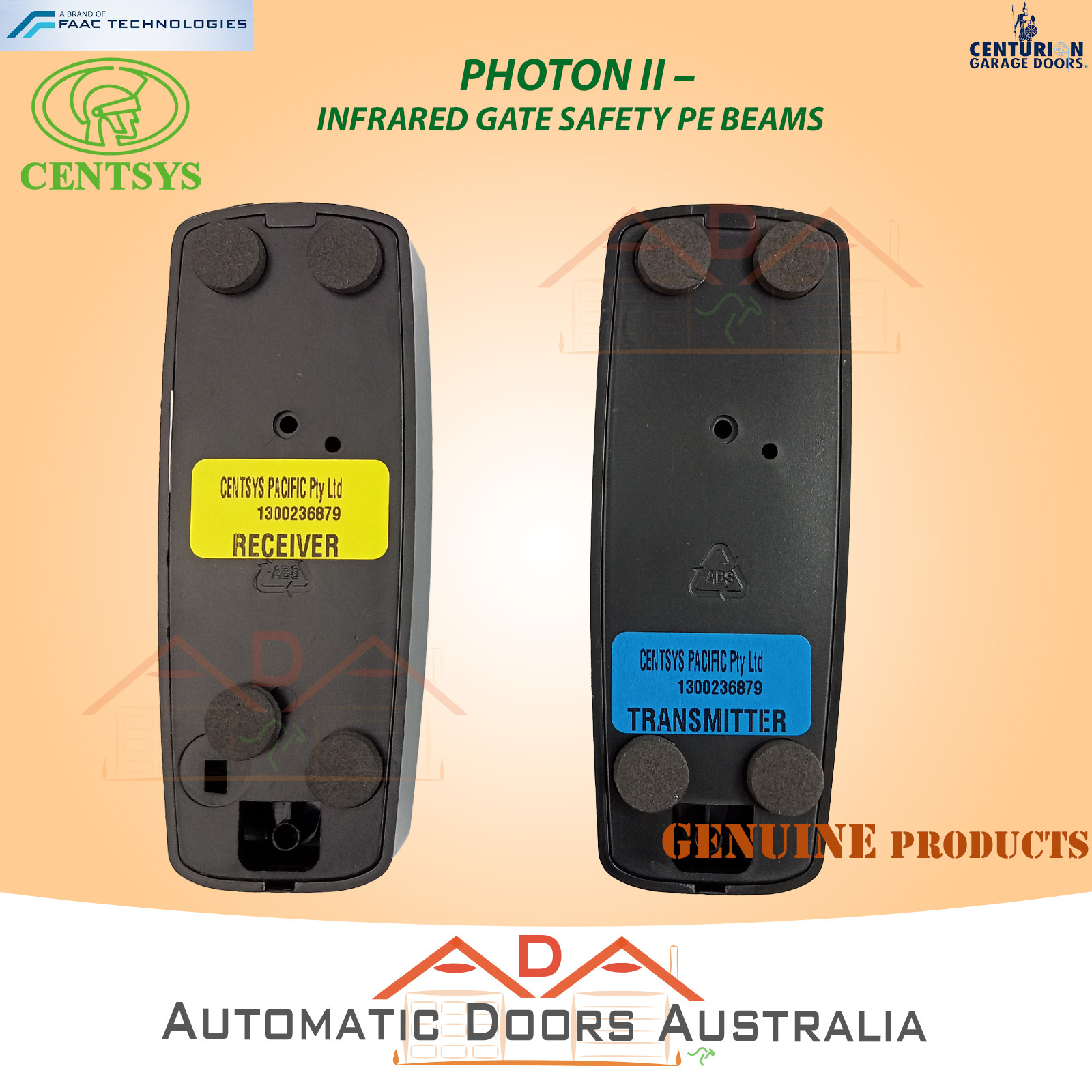

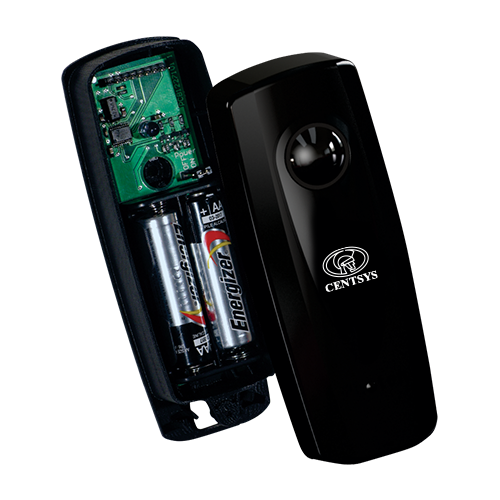

- Wireless Beams-Transmitter
- Wireless Beams -Receiver
- Noise-Suppresing Capacitor
- Manual
- Photon Brochure
Warranty - 01 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)
Description
Safety has never been so quick and easy – thanks to wireless technology! Introducing CENTSYS’ Photon II infrared gate safety PE beams with a wireless transmitter. Photon II makes short work of achieving a safe automation system for even the most challenging of installations. With a wireless transmitter there’s no need to tunnel under the driveway. Simply align, attach and you’re away!
Features
- Transmitter is wireless and battery-operated saving time and money.
- Two year battery life using two AA Alkline batteries (included).
- 30 metre operating range – ideal for almost any entrance gate.
- Fully ant-proof and weather-resistant enclosure for greater reliability.
- Transmitter provides audible feedback for easy setup and battery-low indication.
- Low power consumption throughout the system for greater efficiency.
- Installer Mode with audible feedback makes alignment a dream.
- Elegant slimline construction – only 50mm wide.
- Compatible with Intruder-detection Alarms for enhanced perimeter security3.
PHOTON INFRARED GATE SAFETY PE BEAMS WITH WIRELESS TECHNOLOGY TECHNICAL DATA:
Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product |
Receiver | 12 - 24V AC 12 - 30V DC |
Receiver Power Consumption | 30mA @ 12V DC |
Transmitter Battery Life | Minimum 2 years |
Battery Low Indication | Audible Beep |
Specified Operating Distance | 30m |
Alignment | Automatic – 1m² @ 10m (circular area - assumes parallel surface) |
Output Contact | Fail-safe, N/C and N/O, potential free contact |
Output Contact Rating | 3A @ 30V DC Non-inductive |
Operating Temperature | -15°C - +65°C |
Operating Humidity | 0 - 90° Non-condensing |
Housing Material | 0 - 90° Non-condensing |
Degree of Protection | IP-54 |
Compatibility:
- D2 Turbo (Sliding)
- D3 (Sliding)
- D5 (Sliding)
- D5 Evo (Sliding)
- D10 (Sliding)
- D10 Turbo (Sliding)
- A10 (Sliding)
- R3 (Rotary Arm)
- R5 (Rotary Arm)
- Vantage 400 (Swing)
- Vantage 500 (Swing)
- Vector 400 (Swing)
- Vector 500 (Swing)
- Vert-X 300 (Swing)
(PHOTON_2)
SKU | PHOTON_2 |
Brand | CENTSYS |
Shipping Weight | 0.2500kg |
Shipping Width | 0.070m |
Shipping Height | 0.060m |
Shipping Length | 0.150m |
Shipping Cubic | 0.000630000m3 |
