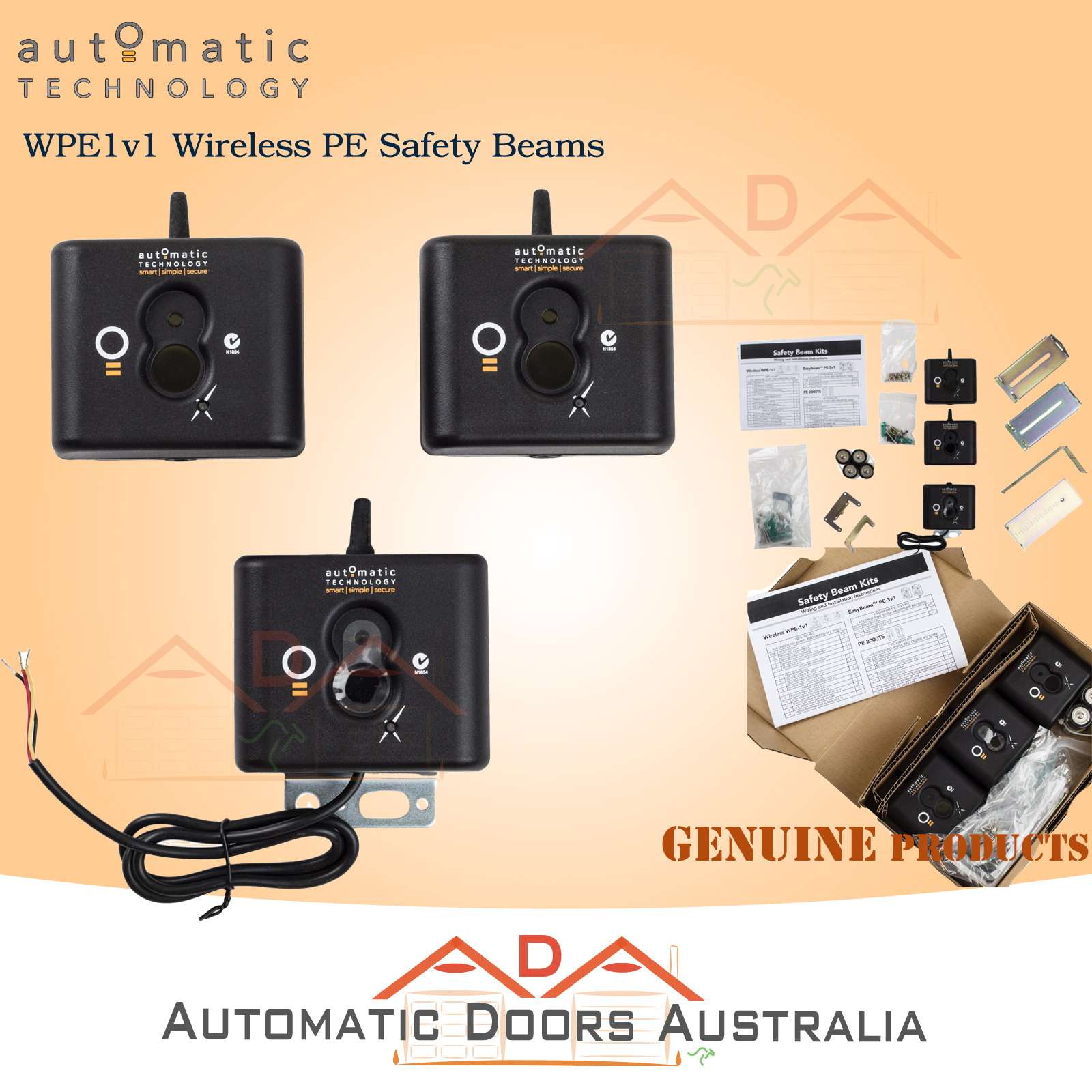

ATA WPE1v1 Wireless PE Safety Beams _FGPEW11L_61957

Free Standard Delivery Australia-wide only

Includes

Transmitter Assembly
Receiver Assembly
Base Station Assembly
Mounting Brackets x 2
Installation Manual
C-Cell Batteries x 4

Warranty - 01 year manufacturer's warranty

https://www.ada-aust.com/assets/files/ATA-PE-Beam-Installation-Guides.pdf

Destribtion

The ATA Wireless Safety Beam Kit comes with RX, TX & Base Station Components, a Mounting Bracket Kit & 4x C-Cell Batteries. Using leading edge technology, our battery powered Wireless Safety Beams provide all the safety and security benefits, but without the unsightly conduit or difficulty in installation required by traditional units.

Protect your family, possessions and car, and further enhance your home's security, with Safety Beams. As soon as an object or person moves through the invisible photo-electric beam the door or gate will stop, or reverse, to avert serious damage being done.

Safety Beams also enable Auto-Close functions on your opener, which close your door or gate after a redetermined time. This means if you forget to press your transmitter button on leaving, your home will not be left unsecured.

Specifications:

Infrared Beam Range	6m
RF Link Range	10m
RF Link Frequency	2.4 Ghz ISM Band
Battery Type (for RX and TX)	C-Type x 2 (Included)
Battery Life	3 Years approx.

Compatibility

The ATA WPE1v1 Wireless PE Beams will suit most Gen2 ATA & B&D garage door and gate openers, with some exceptions. Please see below for a full list of compatible garage door and gate opener.

If you have a B&D CAD Smart or CAD Secure, these will not suit. You would require the 86920 PE Beams.
If you have a ATA ATS-2 Tempo or ATS-3 Synchro, these will not suit. You would require the 86903 PE Beams.
If you have a GDO12 Hiro, these will not suit. You would require the 86802 PE Beams.

Roller Door Motors

GDO6v4 EasyRoller
GDO10v2 Toro
GDO10v2L2 Toro
GDO10v3 Toro
Roll-A-Pro (RDO-1v3)
CADPD (RDO-1v3, RDO-1v4)

Sectional Door Motors

GDO9v2 Enduro
GDO9v3 Dynamo
GDO11v1 Ero
CAD S (SDO-3v2)
Panel Pro (SDO-4v1)
CAD Advance (SDO-2v2)
CAD Prodigy (SDO-2v3)

Gate Motors

NES500 Neoslider
NES800 NeoSlider

Industrial Openers

Axess Pro Series 3100 (Logic Console Only)
Axess Pro Series 3300 (Logic Console Only)
Axess Pro 1505 Overhead
Axess Pro 600 Slider
Axess Pro 800 Slider
Axess Pro 200 Swing
Axess Pro 400 Swing

Receivers

FHCRX1 Single Channel Receiver
FHCRX1v2 Single Channel Receiver
FHCRX2 Dual Channel Receiver
FHCRX2v2 Dual Channel Receiver
FHRX2 Plug-In Board Receiver

(ATA_61957)

SKU	ATA_61957
Brand	ATA Automatic Technology Australia
Shipping Weight	1.3230kg
Shipping Width	0.160m
Shipping Height	0.070m
Shipping Length	0.270m
Shipping Cubic	0.003024000m3
