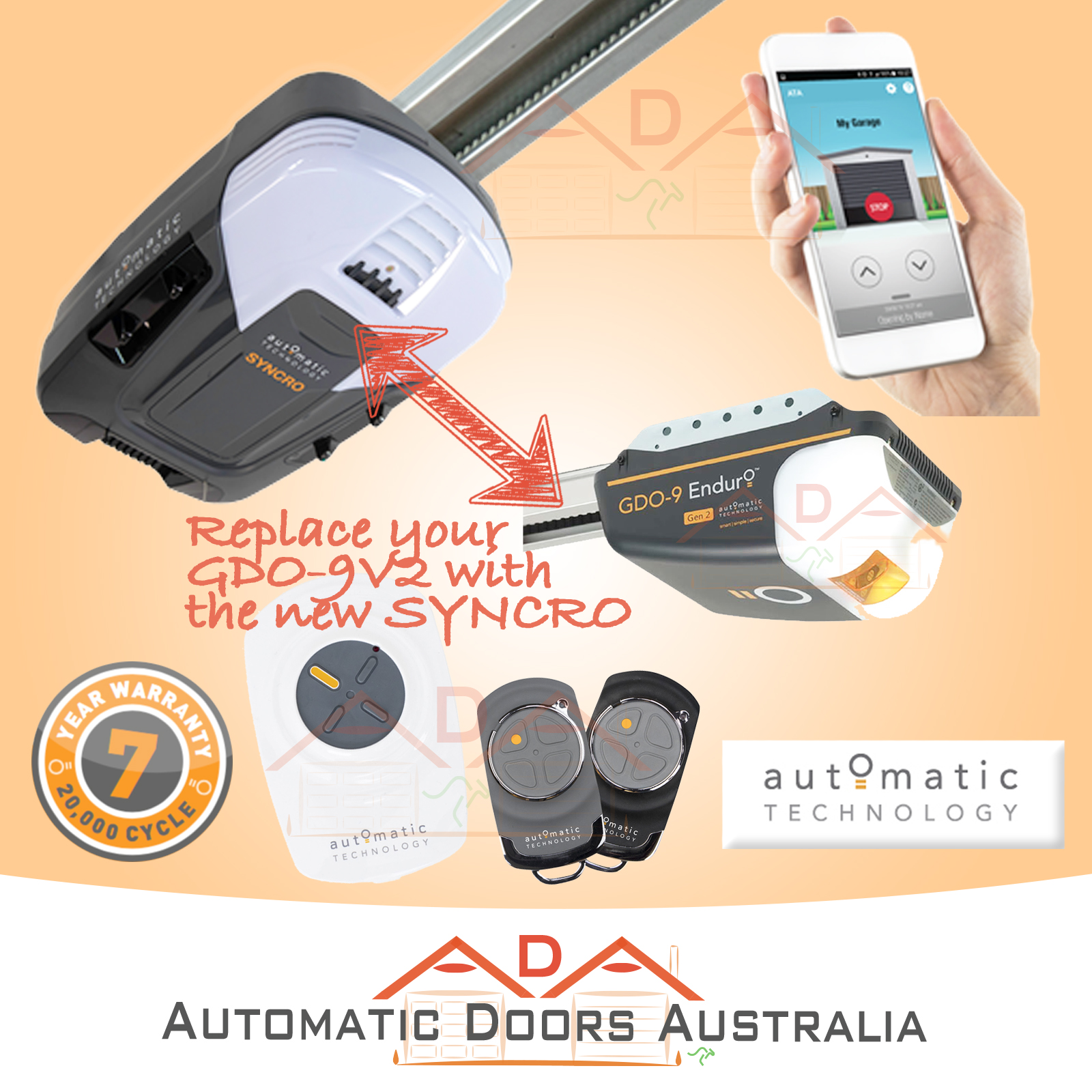

ATA SYNCRO ATS-3 Sectional / Panel Garage Door opener w/ Steel belt rail. Replaces GDO9v2

ATA SYNCRO ATS-3 Sectional / Panel Garage Door opener_ /// Power Head Only /// NO RAIL OR TRACK ////

Free Standard Delivery Australia-wide only

Incudes

1 x ATS-3 SYNCRO Powerhead only

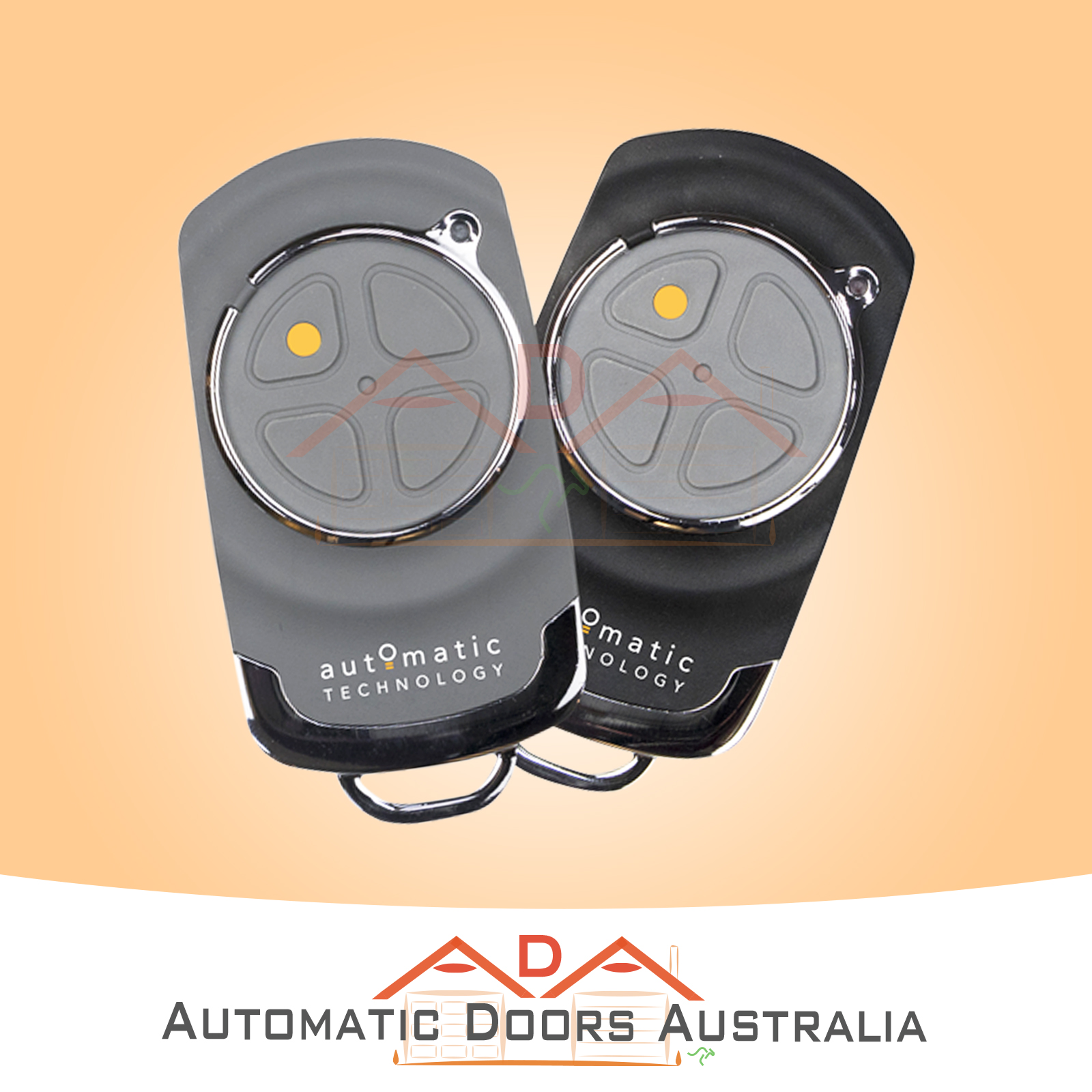

2 x PTX-6v1 Transmitters (1 x Black, 1 x Grey)

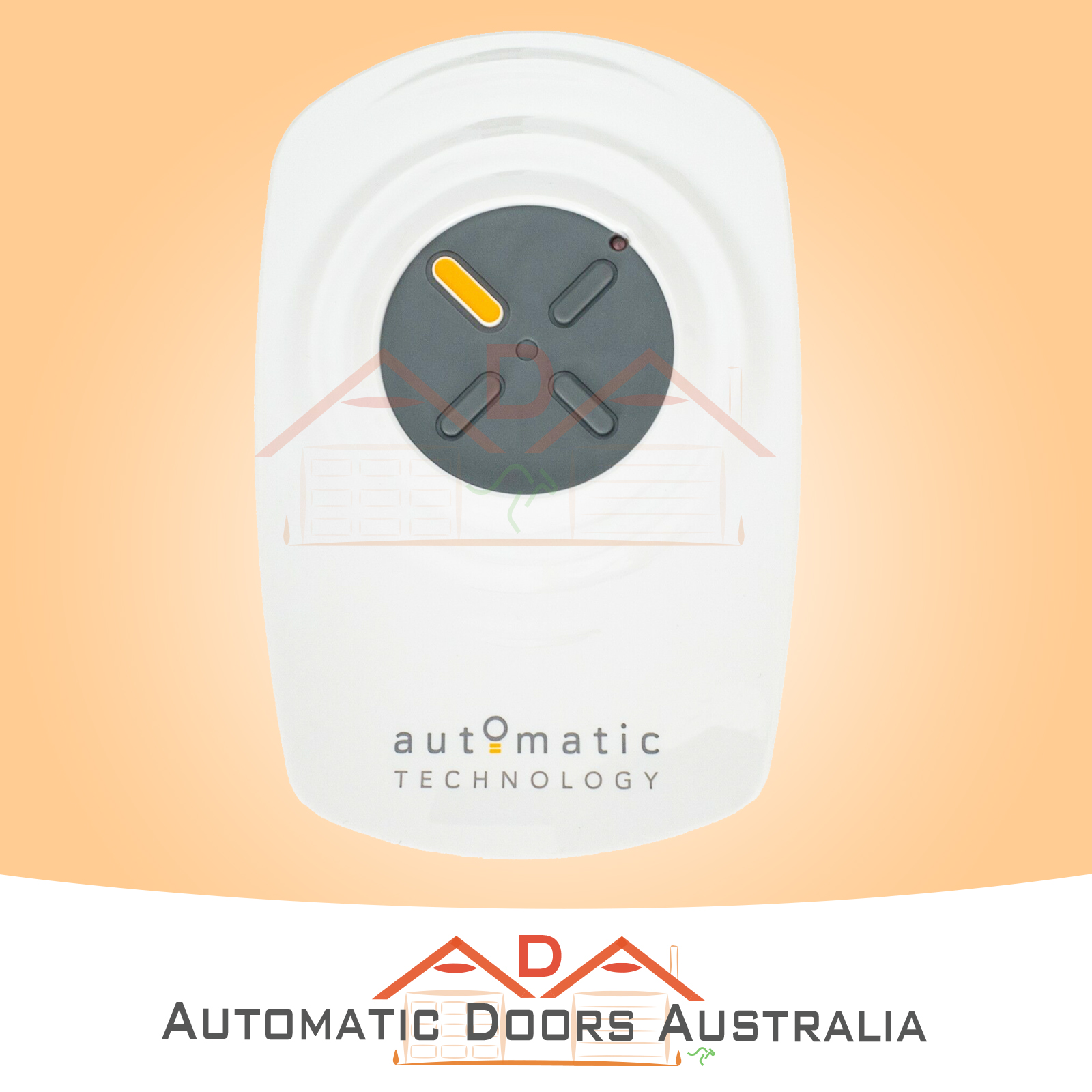

1 x WTX-6v1 Wall Button Transmitter

1 x Mounting Hardware

1 x Instruction Manual

Warranty - 07 years manufacturer's warranty (This warranty covers failure due to manufacturer's fault) *NOW WITH 7-YEAR/20,000 CYCLE WARRANTY

*******************

NOTE - Compatible with ATA C-Rail - PICK UP ONLY or Customer has to arrange shipping . ... Pick up place - Factory 2/67-75 Garden Drive,Tullamarine VIC 3043,

**********************************************

Description:

ATA Synchro ATS-3 Features

The ATA Synchro ATS-3 will suit any residential tilt or sectional door made in Australia or New Zealand up to 18m². ATA have also included Smartphone control as a standard inclusion with the Synchro, allowing you to operate the motor with your mobile phone after installing the app on a compatible iOS or Android device. With a fast opening speed, the Synchro makes getting in and out of your garage a breeze. This top of the range model includes enhanced safety features and is backed b a 7-year warranty.

The included PTX6 remote control features a rolling code encryption called TrioCode 128, which generates a new code each time the button is pressed from trillions upon trillions of possibilities. By transmitting across three frequencies, the PTX6 all but eliminates interference problems, meaning your garage door will open with every press of the button. Due to the remotes high security, only your garage door remotes will ever open your gate or door preventing code grabbing devices from ‘replaying’ the code to open your ATA Synchro ATS-3.

Optional accessories include a battery backup, PE Safety Beams or a weatherproof wireless keypad.

The predecessor to the GDO-9v2 is a proven performer offering basic, no fuss functionality. It operates rolling doors up to 236kg.

Features:

Ultimate Comtrol

Syncro takes the convenience of automation a step further. You can monitor , control and schedule access to your garage door anytime, anywhere, with your smart phone. With fast opening speed, Syncro makes getting in and out of the garage a breeze. This top ofthe range model includes enhanced safety features and is backed by a 7-year warranty.

Fast and Quiet

Syncro boasts a supercharde motor with stop/soft start functionality, making your garage door opening exceptionally fast yet quiet.

Saftey & Security

For your peace of mind, Syncro features an auto-reverse function which forces the door to reverse if it encounters an obstacle. Syncro will also detect if an intruder is attempting to force the door up and will resist entry. Patended remote control technology ensures secure and reliable home access.

Smart Phone Control

Smart technology can save you time and effort. No need to hide or share keys with cleaners, guests or the delivery person, you can control and schedule access to your garage remotely from your smart phone. Syncro will even tell you if you if you left the garage door open, sending you a notification when the door is operated, so you know exactly when your children got home.

Applications

Ideal for most sectional and tilt doors, including doors with architectural cladding up to 235kg.

Specifications:

Technical Specifications

Rated voltage range: 230V-240V A.C.

Rated frequency: 50Hz / 60Hz

Rated power input: 165 Watts

Door opening:

Maxmium Door Area: 18m²

Maximum Door Weight: 236kg*

Door must be well balanced and able to

be operated by hand, as per warranty

conditions and AS/NZS 4505:2012

Minimum headroom: 57mm

Rated Operating Time: 4 mins

Rated Temp: +5^oC to +40^oC

Short Term Peak force: 1100N

Rated load: 400N

Nominal force: 200N (20kg)

Receiver type: Muti-frquency UHF FM

(433.47, 433.92 & 434.36MHz)

Receiver code storage capacity: 64 x 4-button Transmitters

Transmitter battery: CR2032 (3 Volts)

Main Light: LED (Light Emitting Diodes)

Network connectivity: Network ready, Smart hub already installed

(ATASYNCROATS-3)

SKU	ATASYNCROATS-3
Brand	ATA Automatic Technology Australia
Shipping Weight	9.5000kg
Shipping Width	0.330m
Shipping Height	0.250m
Shipping Length	0.400m
Shipping Cubic	0.033000000m3
Unit Of Measure	ea
