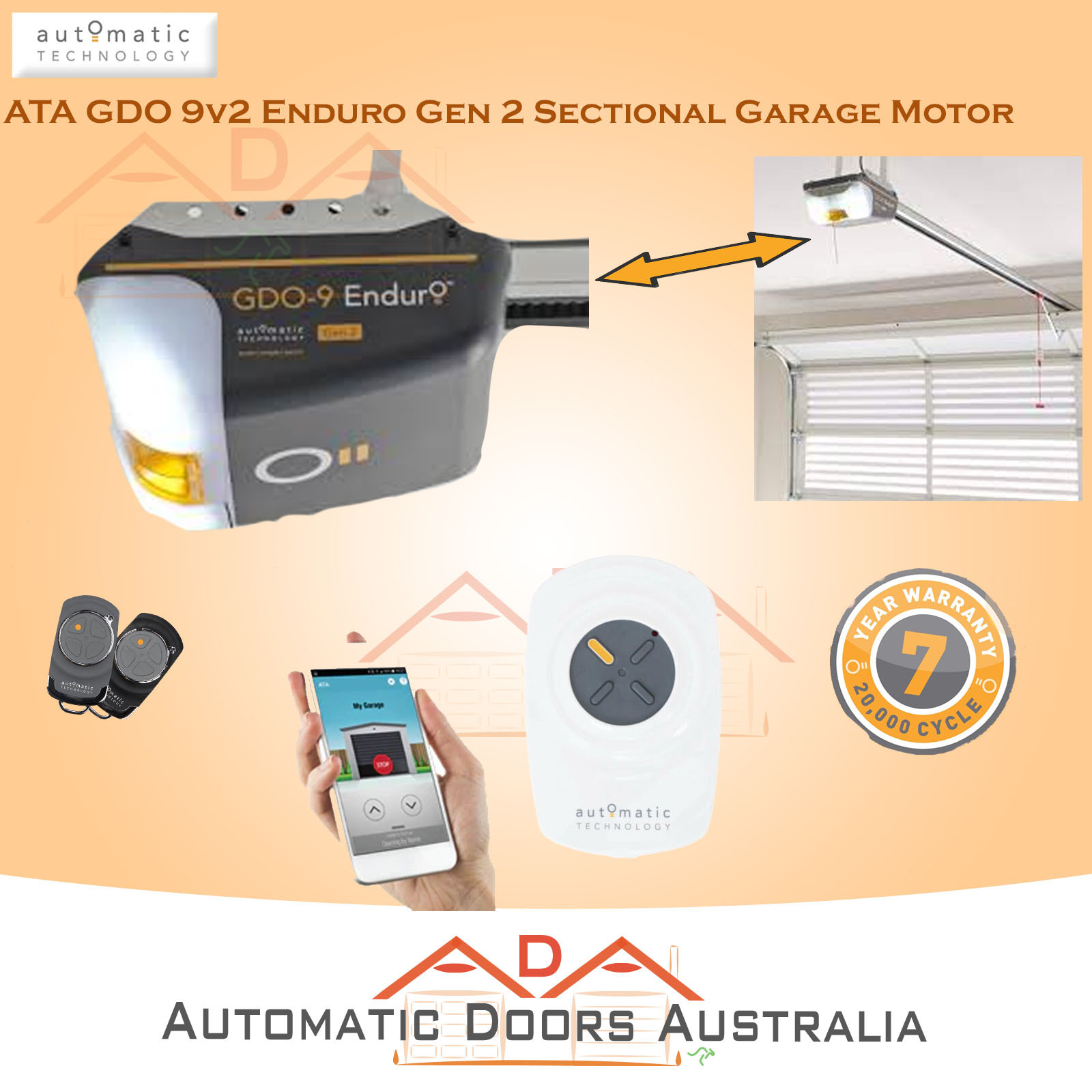

ATA GDO9V2  Enduro  Sectional GARAGE MOTOR  /// Power Head Only /// NO RAIL OR TRACK ////

Free Standard Delivery Australia-wide only

Incudes



  • GDO-9v2 Enduro™ Gen 2 drive unit

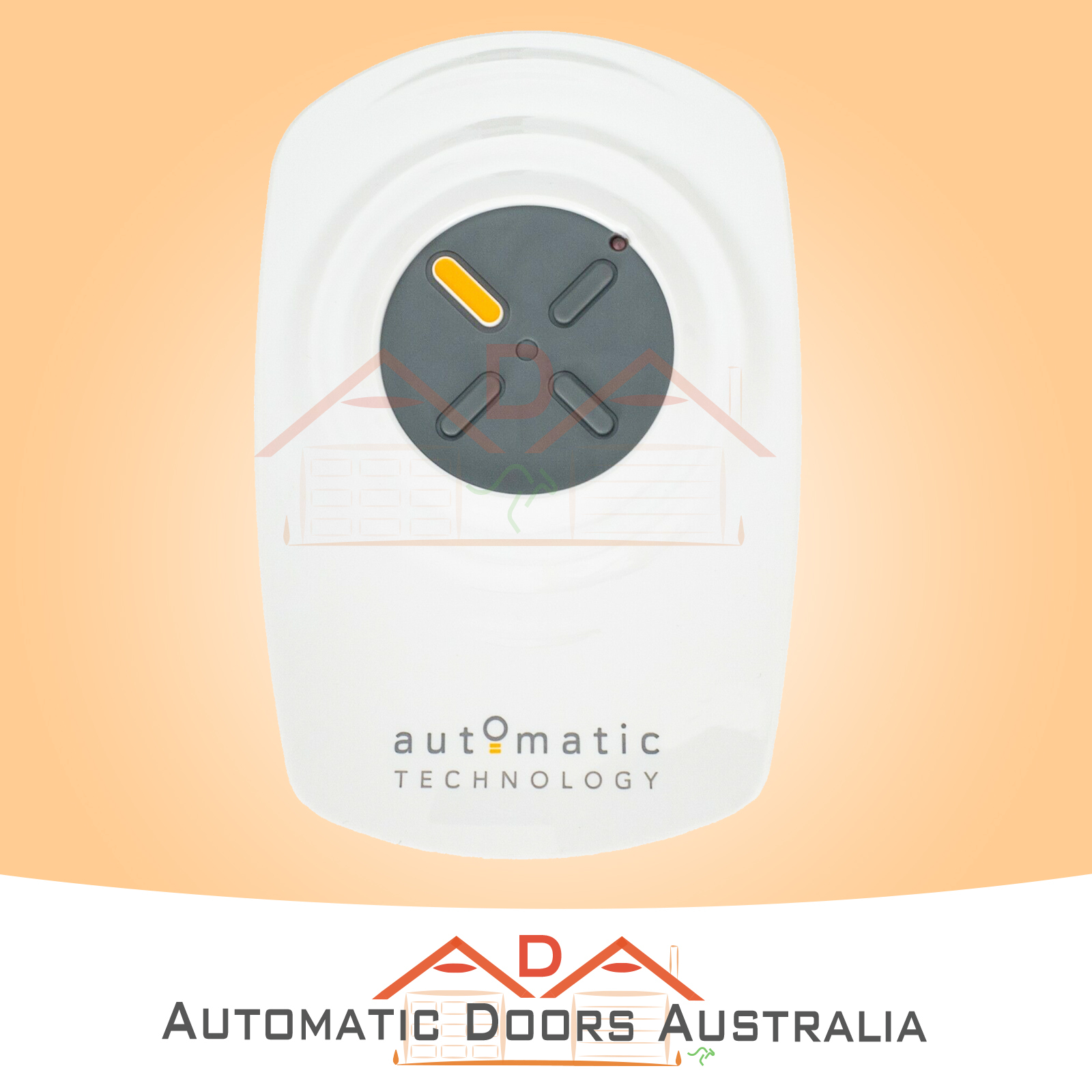

  • Wall mount transmitter with battery

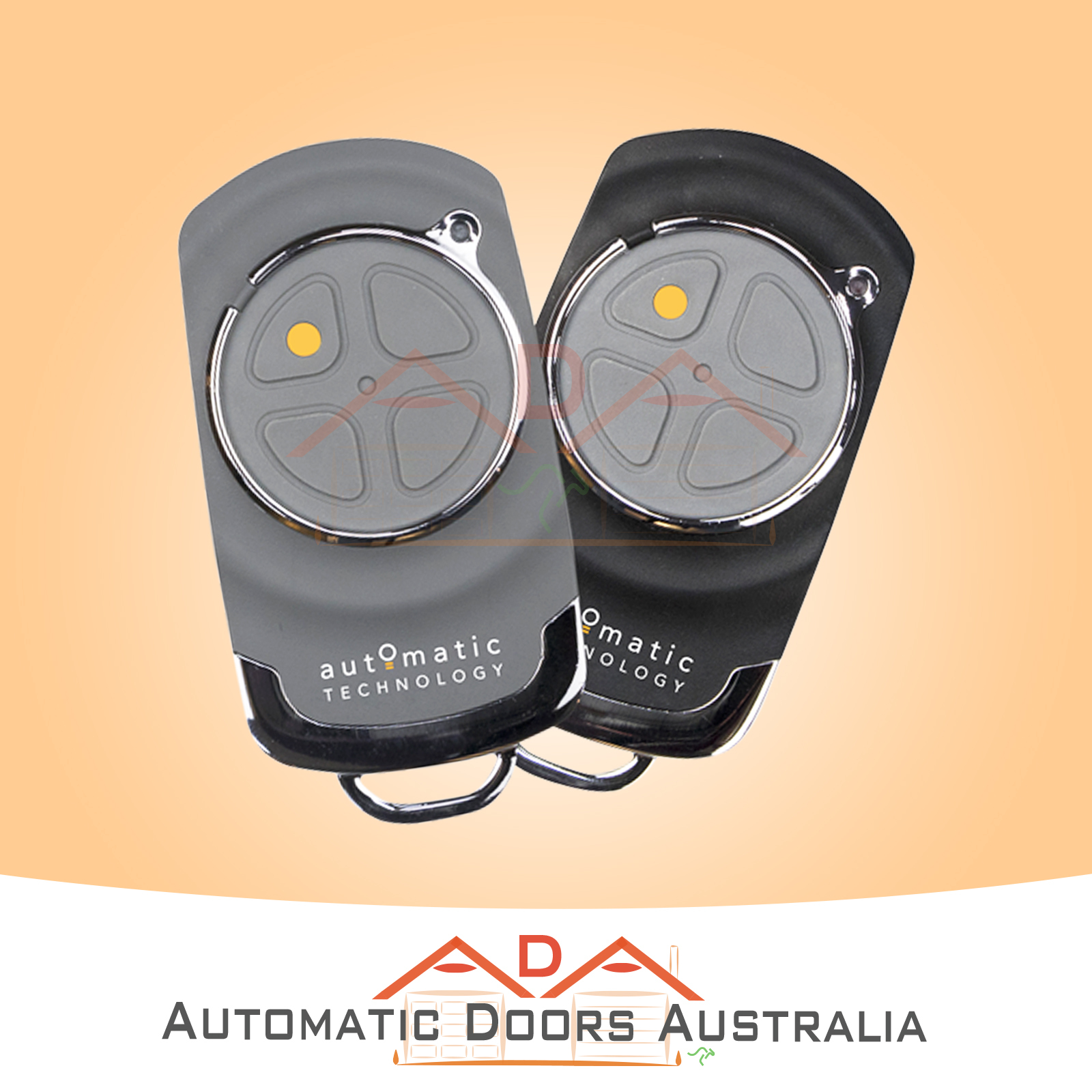

  • 2 x PTX6 Remotes
  • 2 x Door attachment arms
  • Pre-Assembled Single Piece C-Rail
  • Installation Accessory Pack
  • Installation Instructions

Warranty -  7 years manufacturer's warranty (This warranty covers failure due to manufacturer's fault)

NOW WITH 7-YEAR/20,000 CYCLE WARRANTY

Description:
GDO‐9v2 Enduro™ Gen2 The new model of the 1,000N GDO‐9 Enduro™ introduces a redesigned stronger gearbox, three speed settings to best match with the door (including a slow speed ideal for tilt doors), and Wireless PE Beam compatibility.

Aluminium C‐Rail
Model Name  Enduro 9v2

Type Of Door  Sectional
Pear Short Term Pulling Force  1200N
Maximum Door Weight  200kG
Rated Door Area  18.0m2
Rail Steel-Alum
Drive Chain/Belt
Speed (mm/Sec) 90/110/130
Side Room Req. N/A
Minimum Headroom 30mm
Soft Start / Soft Stop Yes
Light System LED
Transmitter Storage Caacity  64
Warranty  7years/ 20,000 cycles

Accessories

4 Button Transmittes   x 2
Wall Transmitter  x 1
Safe Beam ( Optional) Check the Price
Batter Back up ( Optional )  Check the Price


Features:

  • TrioCode™ Code Hopping Technology
  • ALPS (Automatic Limits Positioning System)
  • ISS (intelligent safety obstruction system)
  • Auto courtesy light
  • Vacation mode
  • SmartSolar™ and Battery Backup Compatibility (optional)
  • Pet/Pedestrian mode
  • Auto-Close mode
  • Safety Beam (optional)
  • Safety Beam Failure Emergency Close
  • Manual operation
  • Service Indicator


(ATAGDO9V2Enduro)

SKU ATAGDO9V2Enduro
Brand ATA Automatic Technology Australia
Shipping Weight 6.5000kg
Shipping Width 0.260m
Shipping Height 0.180m
Shipping Length 0.440m
Shipping Cubic 0.020592000m3
Unit Of Measure ea
